Description

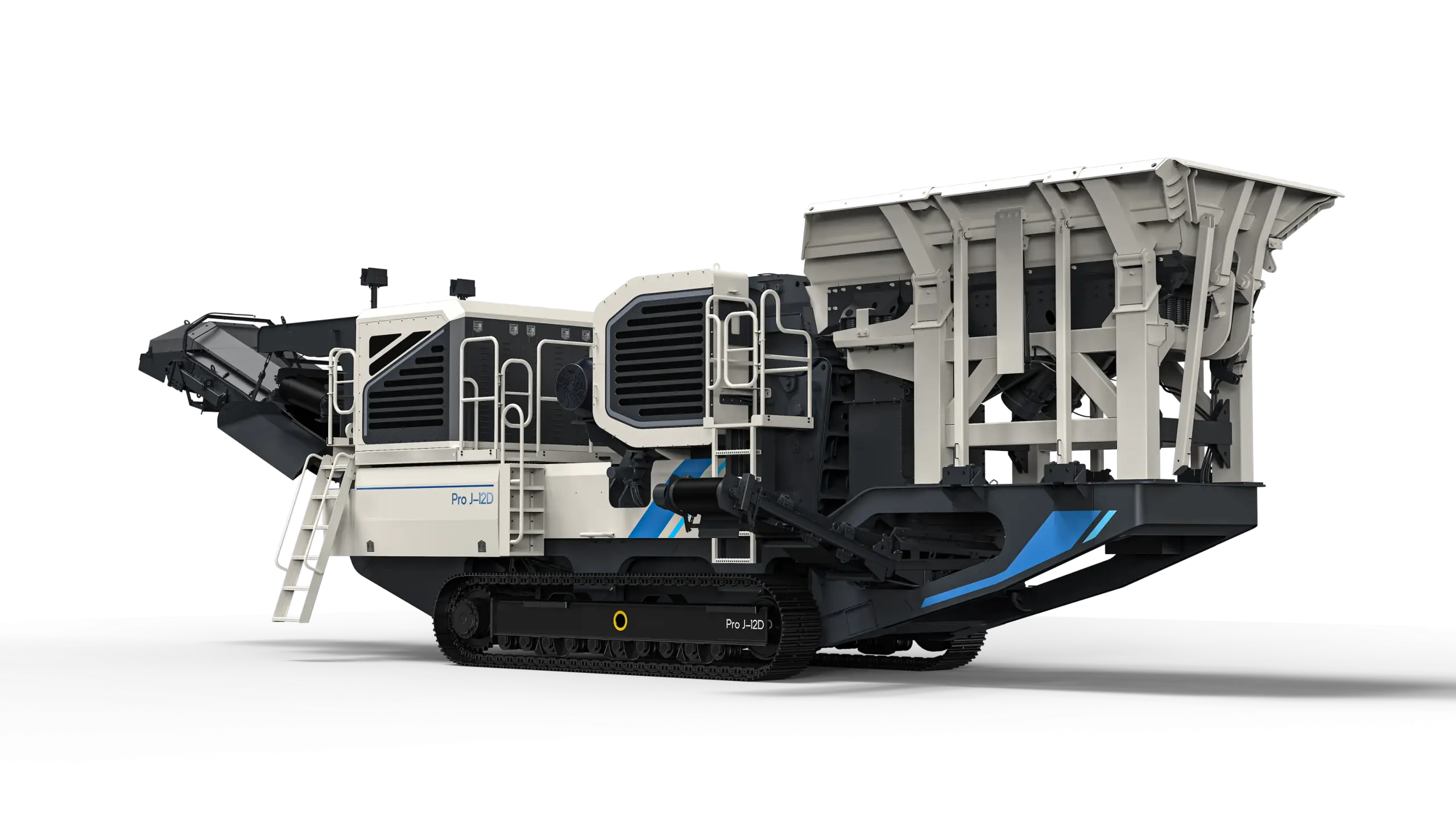

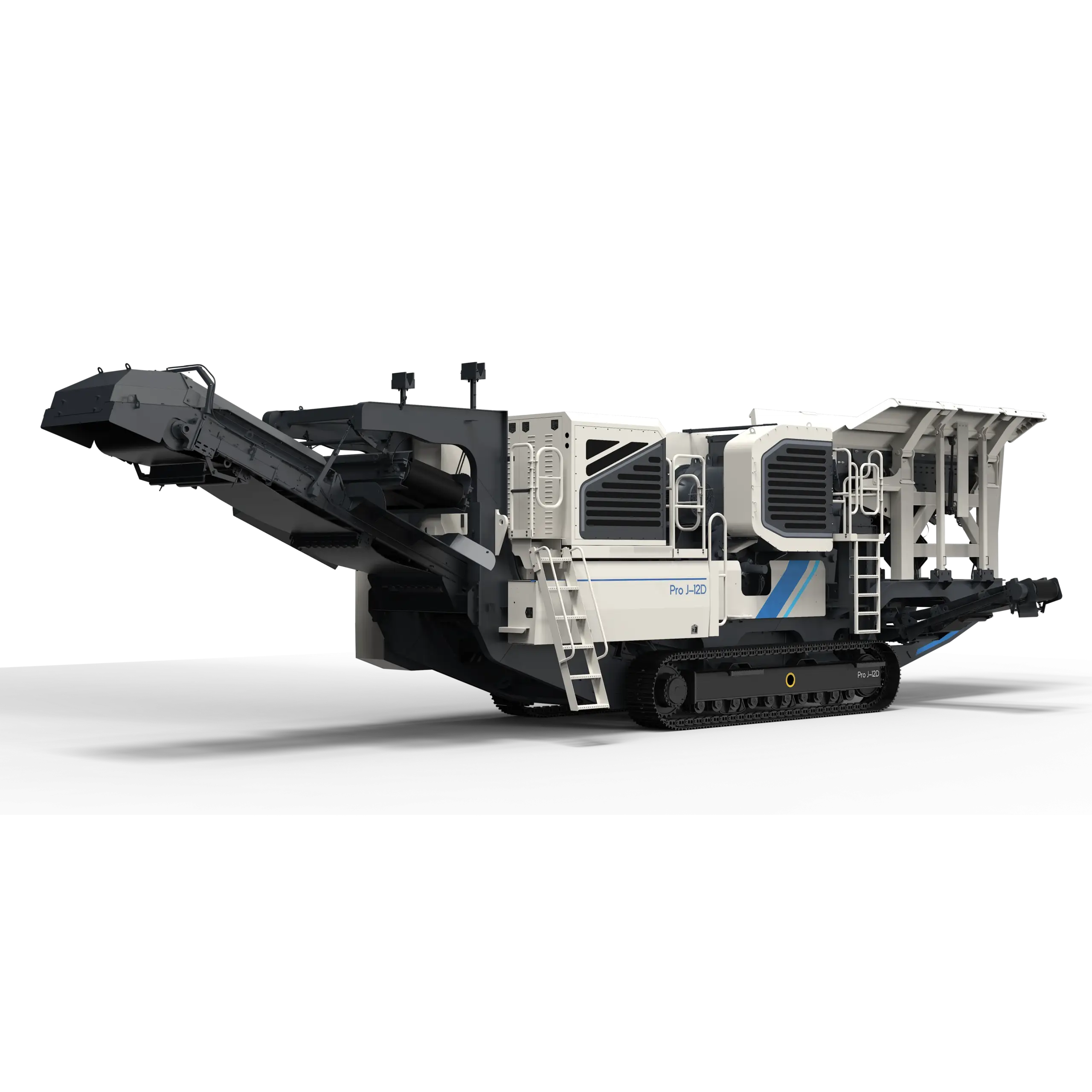

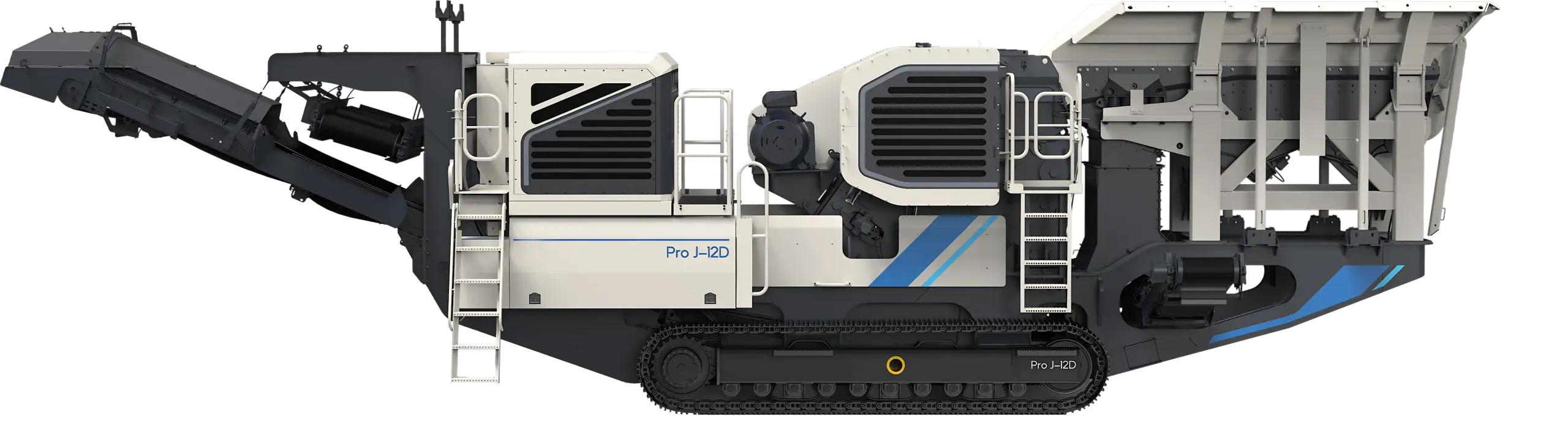

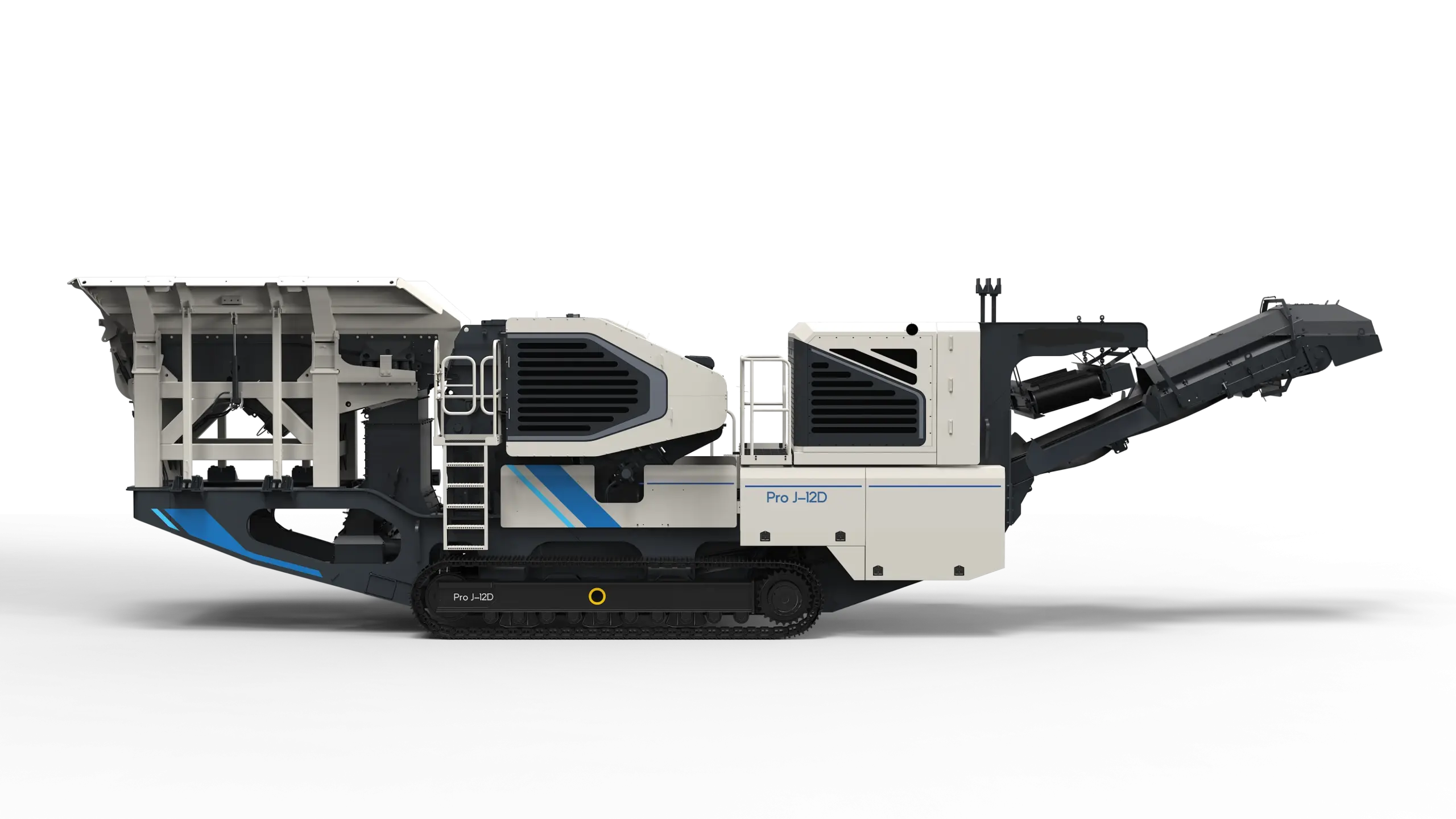

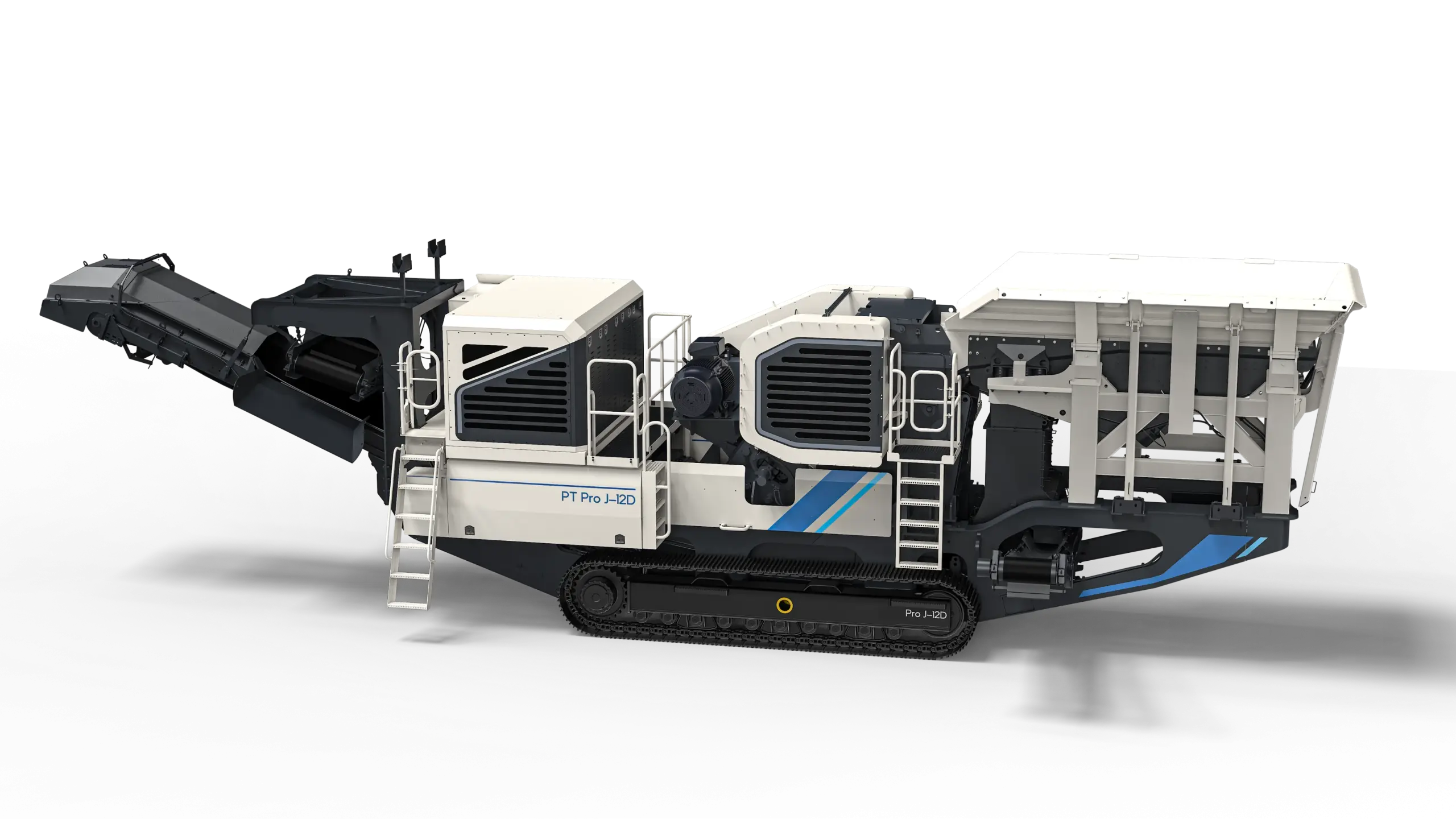

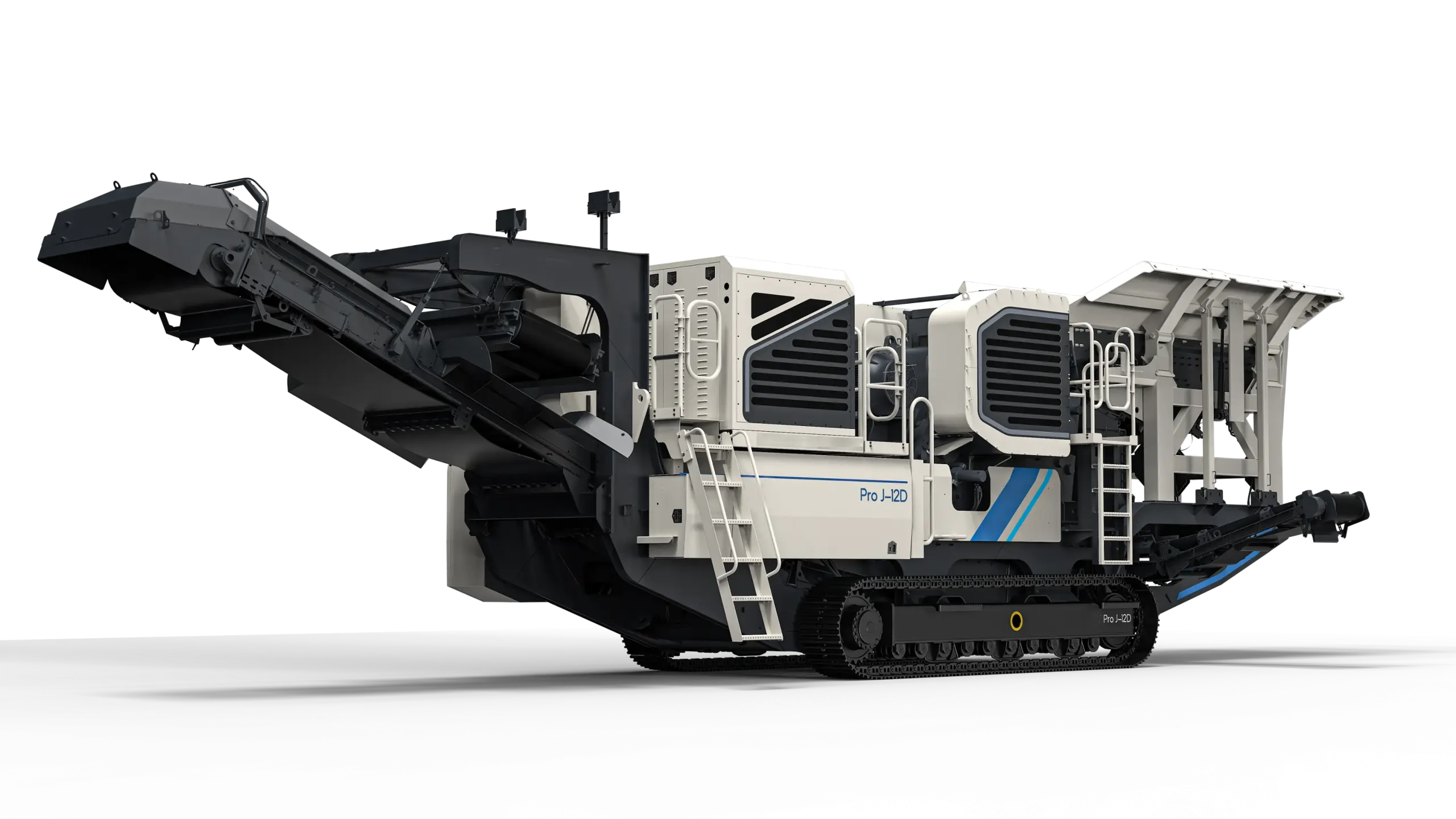

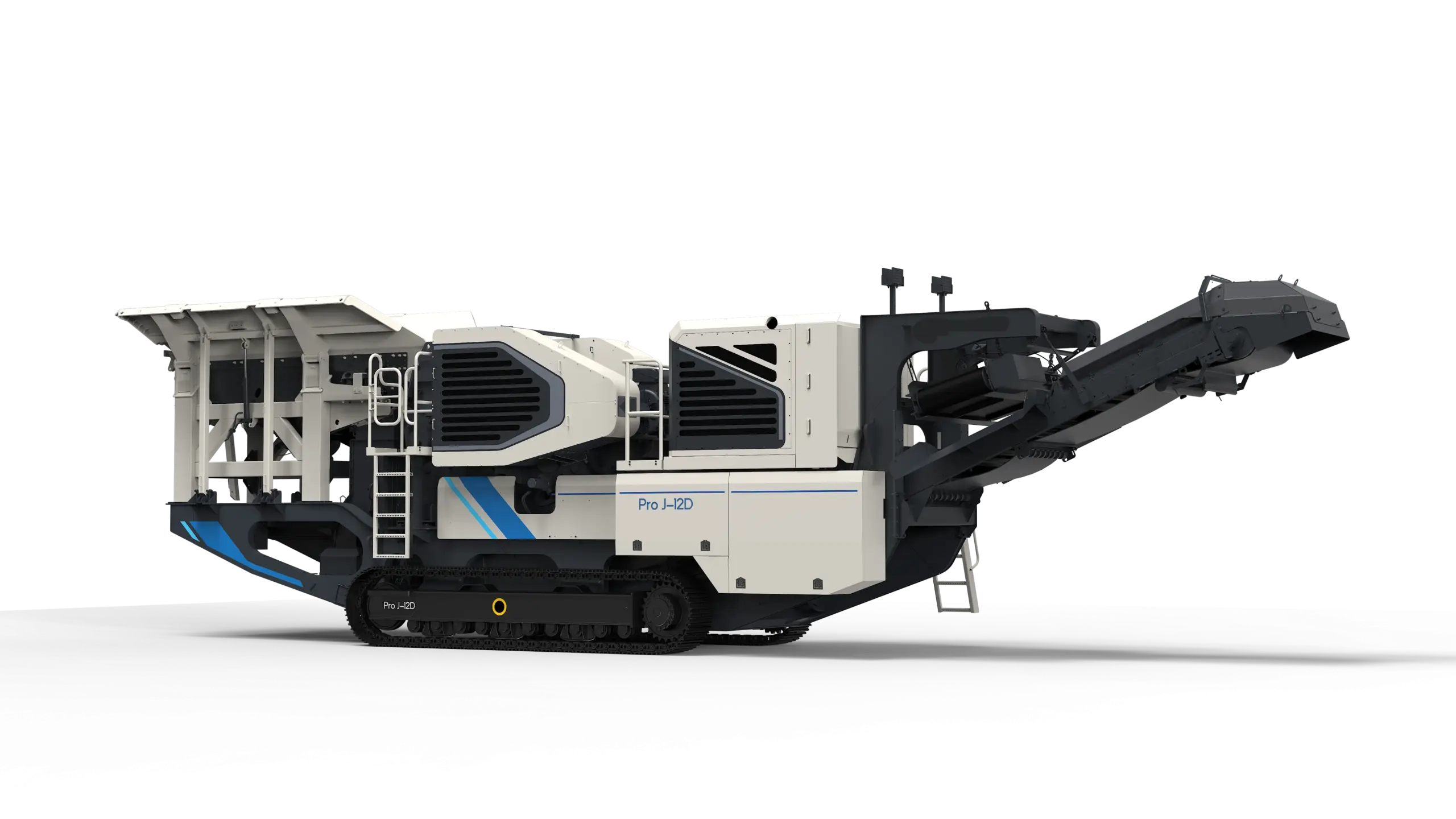

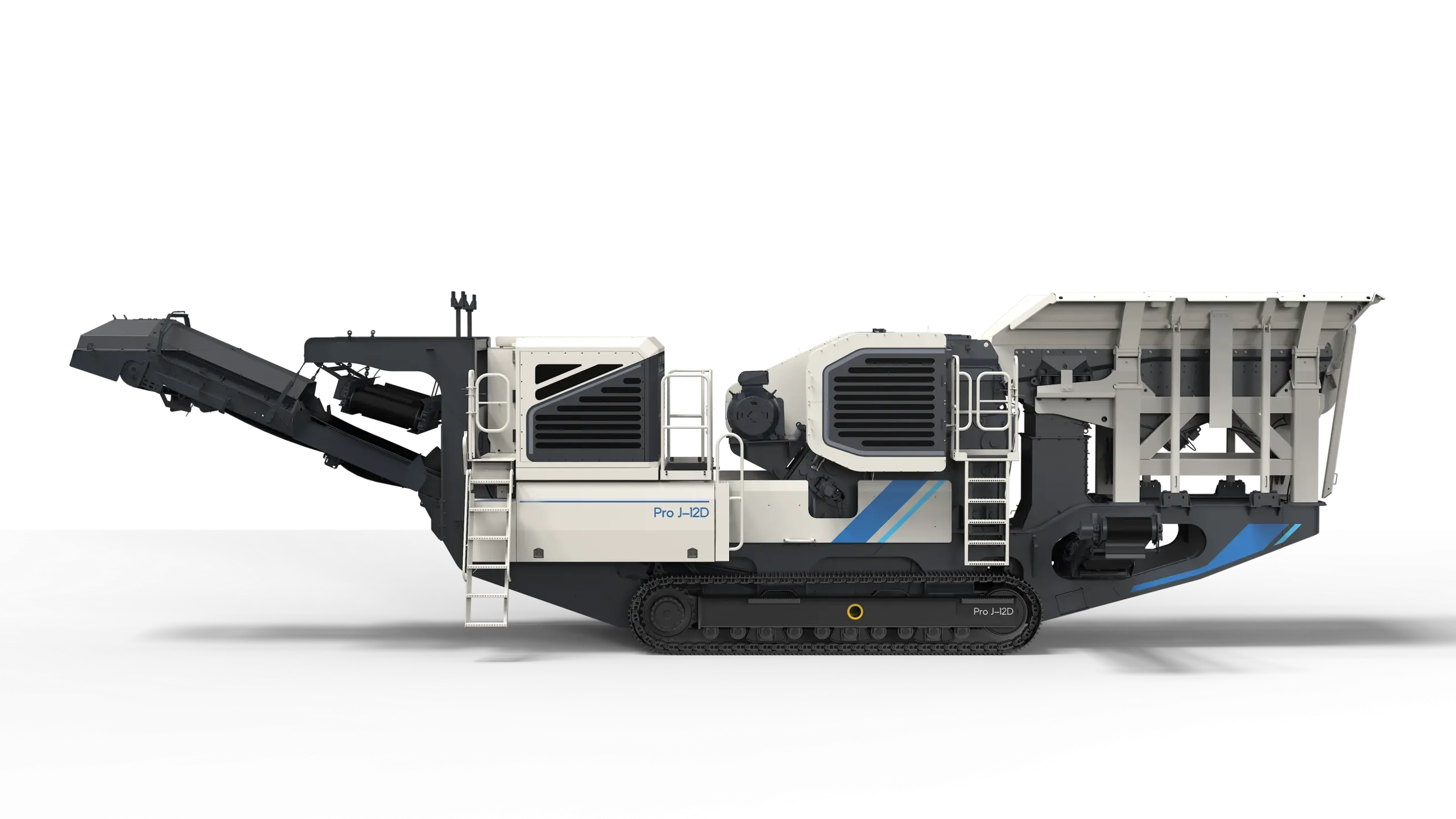

Introduce of SW Pro J12D Mobile Jaw Crusher
The Trituradora de mandíbula móvil SW Pro J12D is a high-capacity primary crushing station engineered to process a diverse range of materials. It operates effectively as a standalone unit or integrates seamlessly into multi-stage crushing and screening circuits. Its compact footprint ensures rapid site-to-site transport and superior on-site mobility, while the robust design streamlines daily maintenance routines. For maximum operational flexibility, a hybrid drive system powers all functional components via the external grid or an onboard diesel generator.
Main Components of SW Pro J12D Mobile Jaw Crusher
SJCLL8 Jaw Crusher >>>
Robust bolted connection structure and a high-stroke design concept ensure the efficient processing of various hard materials.
Feed hopper >>>
The hydraulic folding device and locking mechanism ensure safe and reliable operation. Durable, wear-resistant steel plates extend service life. An optional extended hopper increases total capacity to 9 m³.
Power unit >>>
The integrated 280kVA high-power genset ensures efficient energy output, providing stable power for all onboard motors. The crusher’s power supply can be flexibly switched between the onboard diesel generator and the external power grid.
Grizzly feeder >>>
A high-stroke motor and variable frequency drive enable efficient and continuous feeding. The pre-scalping device, featuring a 3-position flop gate, meets diverse processing requirements.
Side conveyor >>>
The optional foldable conveyor can be installed on either side, enhancing convenience during both transportation and operation.
Main conveyor >>>
A high-strength belt featuring an electric motorized drum, scraper, and dust cover ensures efficient, environmentally friendly material handling.
Tracks >>>
The robust track design allows the machine to move easily across the site, achieving optimal steering flexibility and speed control. Operators can manage movement via wired or optional wireless remote control.
Technical Specifications
| General information >>> | ||
|---|---|---|
| Capacidad | 190 – 650 t/h | 210 – 717 St/h |
| Fuerza | 195 kilovatios | 261 hp |
| Transportation dimensions L*W*H | 16 000 × 3 050 × 3 800 mm | 52’6” × 10′ × 12’6” |
| Working dimensions L*W*H | 16 000 × 4 900 × 4 300 mm | 52’6” × 16’1” × 14’1” |
| Peso | 60 000 kilos | 132277 lb |
| Jaw crusher >>> | ||
| Maximum recommended feed size | 680 mm | 2’3” |
| Feed opening | 1 100 × 850 mm | 3’7” × 2’9” |
| Fuerza | 160 kilovatios | 214 hp |
| Feed hopper >>> | ||
| Width | 3 450 mm | 11’4” |
| Volume | 6 / 9 m³ | 7.8 / 11.8 yd³ |
| Loading height | 4 300 mm / 4 700 mm | 14’1” / 15’5” |
| Loading width | 3 4000 mm / 4 600 mm | 11’7” / 15’1” |
| Grizzly feeder >>> | ||
| Length | 4 200 mm | 13’9” |
| Width | 1 100 mm | 3’7” |
| Drive type | Electric vibration motor | Electric vibration motor |
| Fuerza | 2 × 5.8 kilovatios | 2 × 7.8 hp |
| Main conveyor >>> | ||
| Length | 11 700 mm | 38’5” |
| Width | 1 200 mm | 3’5 |
| Discharge height | 3 350 mm | 10’11” |
| Side conveyor (optional) >>> | ||
| Length | 3 850 mm | 12’7” |
| Width | 500 mm | 20” |
| Discharge height | 1 600 mm | 5’3” |
| Power unit >>> | ||
| Engine | Cummins | |
| Fuerza | 272 kilovatios | 365 hp |
| Generator | Mecc Alte | |
| Options >>> | ||
| Magnetic separator | Hydraulic setting adjustment | |
| Feed hopper extensions | Side conveyor | |
| Wireless remote control | High pressure water pump (water spaying pipes and nozzles pre-equipped as standard) | |
Applications >>>
This unit is extensively utilized across the mining and aggregate sectors. It excels in the primary crushing of high-hardness natural stone and provides high-efficiency processing for various recycled materials.
Key Sectors:
Construction: Reliable primary processing for infrastructure projects.
Aggregates: High-capacity production of quality stone products.
Contracting: Versatile performance for on-site mobile crushing requirements.
Combine with >>>
I13DS SW Pro mobile impact crusher
C30DS SW Pro mobile cone crusher
ST08E SW Pro mobile screener
SC08E SW Pro mobile screener
SP08D SW Pro mobile screener
