Cribadora móvil SW Pro SC11D

Ventajas únicas

Detección de alta eficiencia: Criba de tres pisos con un diseño de malla curva que garantiza una eficiencia de cribado excepcional y un rendimiento máximo.
Unidad de potencia de motor lateral: La unidad de cribado está accionada por un motor lateral de alto rendimiento., generando una fuerza más fuerte para una separación superior.
Tecnología de frecuencia variable: Equipado con una pantalla de frecuencia variable para reducir la corriente de arranque y extender significativamente la vida útil del equipo..
Unidad de doble potencia: Admite la máxima flexibilidad operativa con un sistema de alimentación dual, permitiendo un cambio perfecto entre el generador diésel y la red eléctrica enchufable.
Componentes premium: Construido con componentes de clase mundial para garantizar un rendimiento excelente y una estabilidad confiable en condiciones de trabajo difíciles.

Fuerza: 53 kilovatios | Capacidad: Arriba a 600 t/h | Peso: 35 t

Categorías: Planta trituradora móvil, Analizador móvil

Description

Description

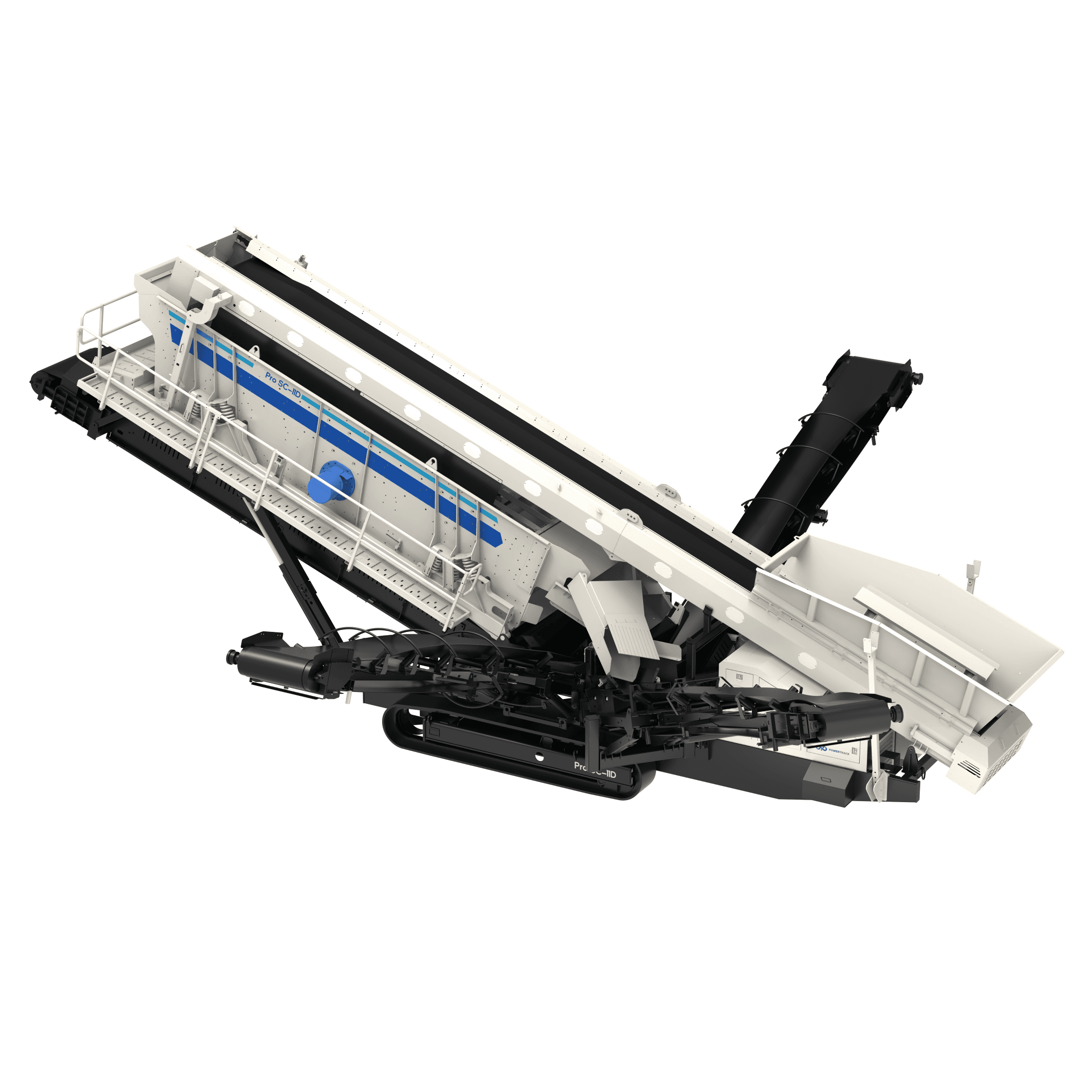

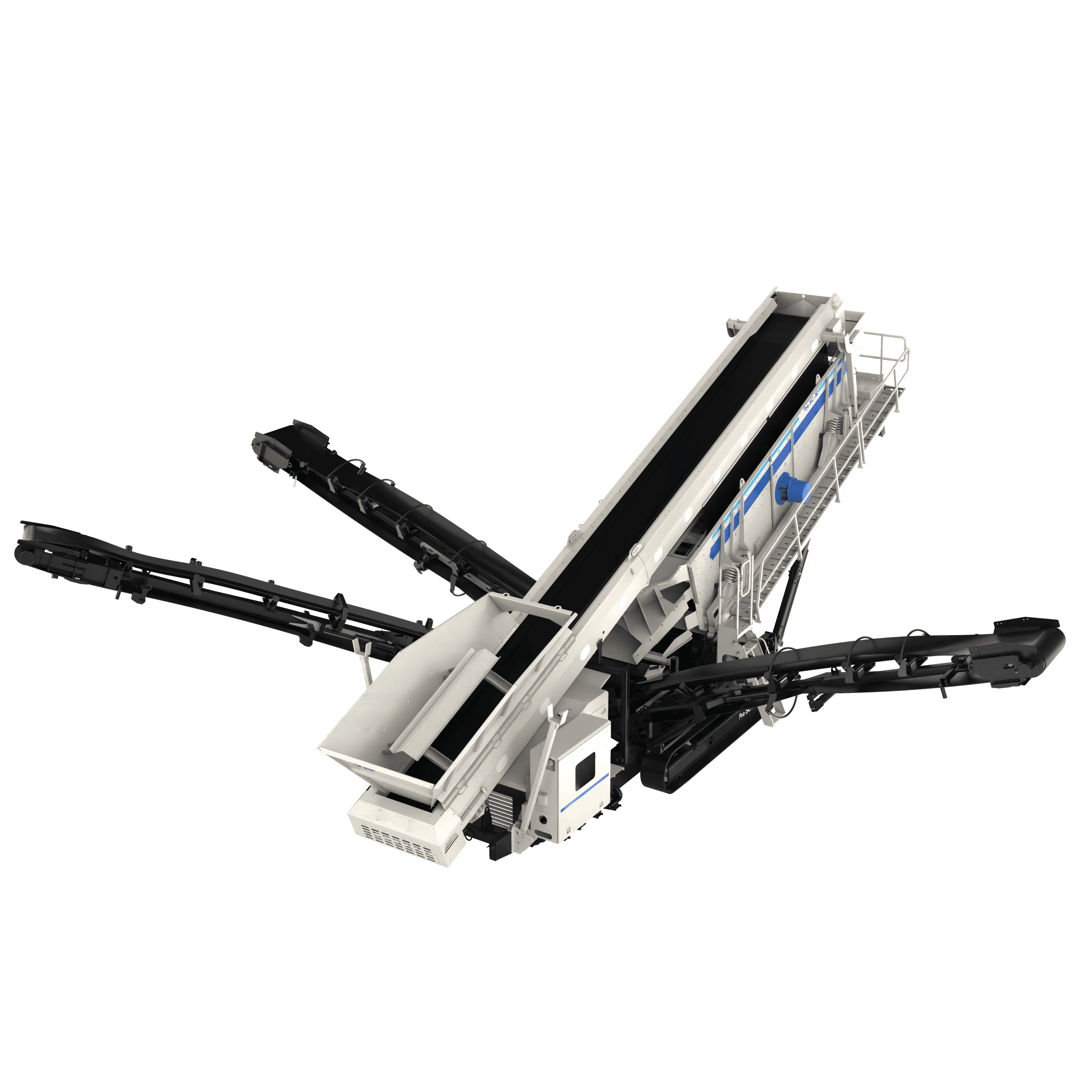

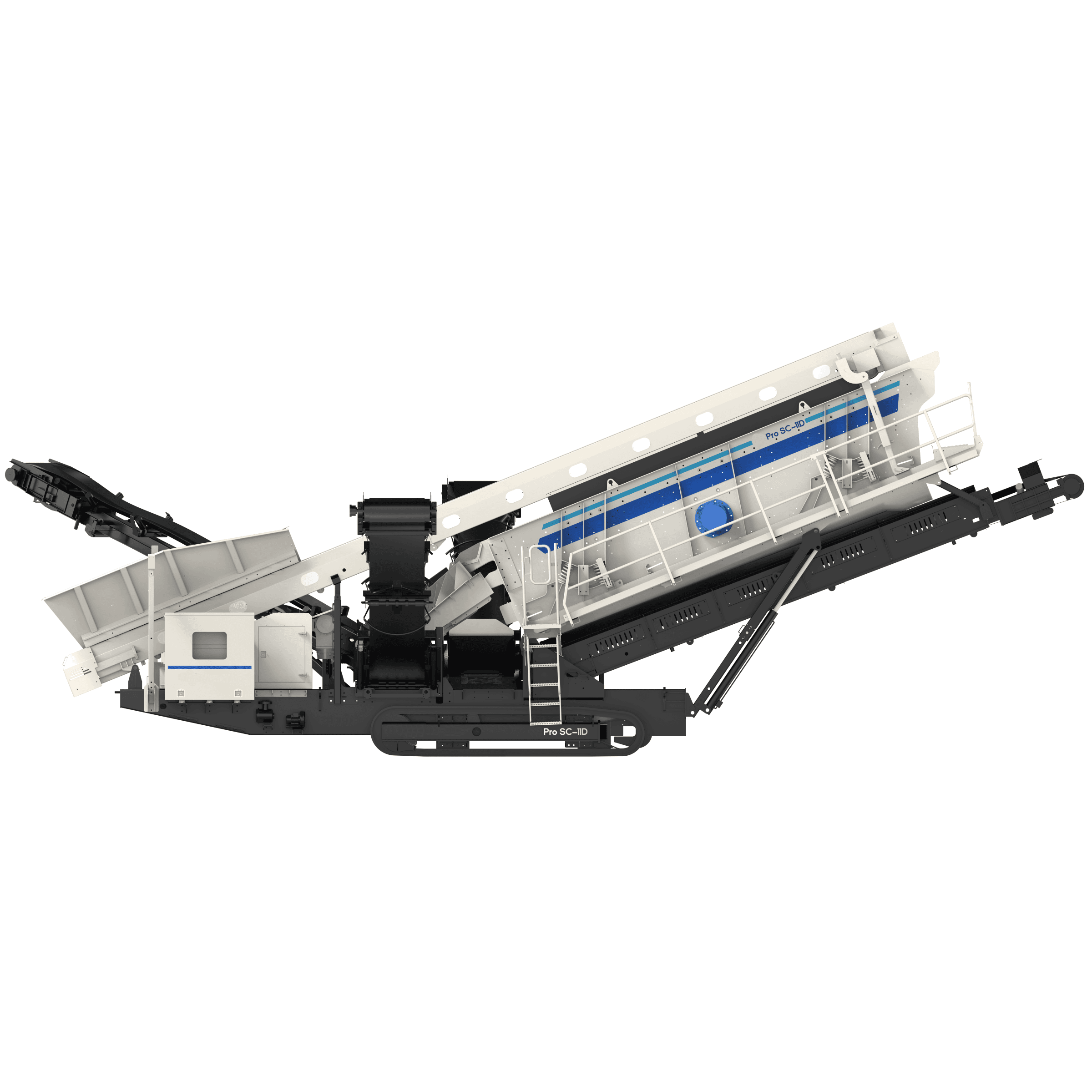

Introduce of SW Pro SC11D Mobile Screener

The Cribadora móvil SW Pro SC11D is a highly efficient, heavy-duty three-deck mobile screening plant designed for processing crushed rock, sand, gravel, and construction aggregates. It functions flawlessly as an independent screening station or as part of a high-capacity crushing circuit. Featuring advanced dual-power technology, the SC11D allows users to adapt flexibly to site conditions by switching between the onboard diesel generator and an external power grid, drastically reducing energy costs and optimizing environmental sustainability.

Main Components of SW Pro SC11D Mobile Screener

High-Efficiency Vibrating Screen >>> Advanced 3-deck screen box featuring a curved mesh design that enhances material flow and screening velocity. Driven by a dedicated side motor, it delivers higher G-force for clean separation of stubborn aggregates.

Dual-Power Unit >>> Powered by a premium Cummins engine coupled with smart electrical systems. The plug-and-play dual-power setup provides the ultimate freedom to run on cheap grid power or complete self-sufficiency in remote areas.

Variable Frequency Drive >>> Integrates intelligent variable frequency controls that cushion the machine during start-ups, lowering structural stress and power spikes while maximizing screen box lifetime.

Heavy-Duty Tracks >>> Rugged tracked undercarriage ensures outstanding mobility and quick setup times across tough quarry terrains and recycling yards.

Technical Specifications

General information >>>
Capacidad	Arriba a 600 t/h
Driving Power	53 kilovatios
Transportation dimensions L x W x H	16,100 incógnita 3,500 incógnita 3,800 mm
Working dimensions L x W x H	15,500 incógnita 14,400 incógnita 6,400 mm
Peso	35,000 kilos
*Criba vibratoria >>>*
Maximum recommended feed size	200 mm
Screening area	6,000 incógnita 1,800 mm
Decks	3
*Power unit >>>*
Model / Engine Brand	Cummins
Power Type	Dual power (Diesel / Plug-in Electric)

Applications >>>

The SW Pro SC11D Mobile Screener delivers top-tier screening performance across multiple heavy industries, including:

Quarrying & Mining: Fine-screening of blasted or crushed rock.
Aggregates Production: Sorting high-quality sand and river gravel.
Construction Waste Recycling: Sifting concrete, asphalt, and demolition debris on-site.
