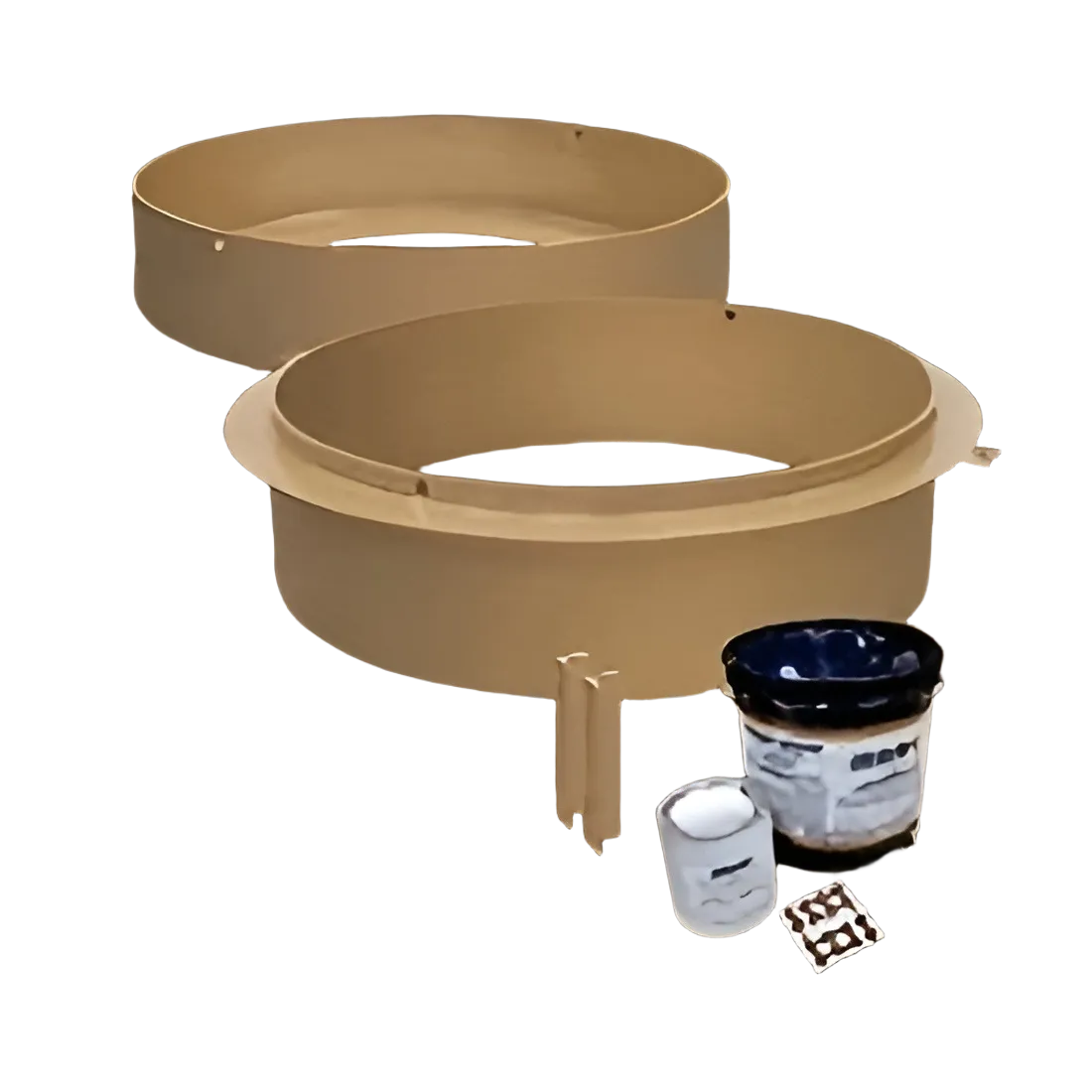

What is a Cone Crusher Liner & Hopper Components Set?
Una trituradora de cono Transatlántico & Componentes de la tolva assembly comprises the essential upper feed hoppers, bowl liners, seat liners, and adapter rings positioned at the top of the crushing chamber. Its primary critical function is to receive raw feed materials, guide uniform 360-degree material flow into the cavity, and provide sacrificial wear resistance under high-tonnage aggregate processing. By absorbing intense abrasive friction and massive impact forces, premium Transatlántico & Componentes de la tolva protect the underlying mainframe structure while maintaining consistent product sizing and volumetric throughput (TPH).
Compatibilidad del equipo & Referencia cruzada OEM
Nuestro reemplazo del mercado de accesorios Transatlántico & Componentes de la tolva wear parts and structural modules are precision-engineered to be direct-fit upgrades for Metso crushers, reduciendo significativamente su costo total de propiedad (costo total de propiedad) while ensuring zero installation issues and maximum field uptime.
Specification of Liner & Componentes de la tolva
- Nombre del producto: Transatlántico & Componentes de la tolva
- Categorías: repuestos para trituradora de cono > Transatlántico & Componentes de la tolva
- Números de piezas: 7085701300, 7085728150, 7055208001, 7084101513, 1044180300, 1044180301, N55208149, 1048516271, 1044180340, 1044180281, N55208269, 1063917418, 1048514410, 1044180249, 1044180343, N55208525, 1063437879, 1048516272, N85701305, 1044180284, 1048314222, 1063437875, 1048516296, 1044180397, 1048314344, 1048517581
- Aplicación para Metso HP100 / HP200 / HP300 / HP400 / HP500 / HP800 / HP4 / trituradora de cono hp6
- Producto incluido: Conjunto de tolva, Revestimiento del tazón, Hardware, Anillo adaptador, Forro del asiento
- Main Alloys Available: Mn14Cr2, Mn18Cr2, Mn22Cr2 (High Manganese Steel with Custom Chromium Content)
Part Number List of Liner & Hopper Components For Metso HP Cone Crusher
Below are standard replacement part numbers we frequently supply. If your specific Metso part number is not listed, please provide your OEM drawing or part number for a custom quotation.
| Modelo | Número de pieza | Descripción (OEM Equivalent) |
|---|---|---|
| HP100 | 7085701300 | Lower feed hopper |
| HP100 | 7085728150 | Upper feed hopper |
| HP100 | 7055208001 | High-manganese bowl liner |
| HP100 | 7084101513 | Frame seat liner |
| HP200 | 1044180300 | Upper feed hopper |
| HP200 | 1044180301 | Lower feed hopper |
| HP200 | N55208149 | Heavy-duty bowl liner |
| HP200 | 1048516271 | Frame seat liner |
| HP300 | 1044180340 | Upper feed hopper |
| HP300 | 1044180281 | Lower feed hopper |
| HP300 | N55208269 | Crusher bowl liner |
| HP300 | 1063917418 | Bowl adapter ring |
| HP300 | 1048514410 | Frame seat liner |
| HP400 | 1044180249 | Upper hopper |
| HP400 | 1044180343 | Lower hopper |
| HP400 | N55208525 | Manganese bowl liner |
| HP400 | 1063437879 | Bowl adapter ring |
| HP400 | 1048516272 | Frame seat liner |
| HP500 | N85701305 | Tolva de alimentación |
| HP500 | 1044180284 | Lower hopper |
| HP500 | 1048314222 | Premium bowl liner |
| HP500 | 1063437875 | Bowl adapter ring |
| HP500 | 1048516296 | Frame seat liner |
| HP800 | 1044180397 | Tolva de alimentación |
| HP800 | 1048314344 | Manganese bowl liner |
| HP800 | 1048517581 | Frame seat liner |
Complete Component Compatibility
We provide a one-stop solution for the entire Metso Nordberg HP series. Our production lines are strictly monitored to guarantee that every structural and wear part aligns perfectly with your existing setup:
- Conjunto de tolva: Heavy-duty steel construction designed to guide raw feed smoothly into the crushing chamber while reducing spillage and aggregate wear.
- Revestimiento del tazón & Manto: Cast from proprietary high-manganese alloys to withstand severe impact, optimizing the crushing cavity profile for consistent output.
- Forro del asiento & Anillo adaptador: Precision-machined via advanced CNC technology to absorb massive crushing forces, preventing metal-to-metal friction and protecting the main frame.
- High-Strength Fasteners & Hardware: Specialized locking bolts, nuts, and wedges that maintain optimal tightening torque during continuous, high-vibration operation.
Ingeniería central & Ventajas técnicas
Because the upper feeding and crushing cavity zones are subjected to extreme abrasive friction and brutal compressive impacts, standard steel liners wear out rapidly or crack under pressure. Nuestra prima Transatlántico & Componentes de la tolva Los reemplazos se fabrican con orgullo en China para ofrecer una durabilidad inigualable para trabajos pesados.:
Custom Alloy Engineering: Cast from proprietary high-manganese steel formulations (such as Mn14Cr2, Mn18Cr2, and Mn22Cr2) with custom chromium content designed to work-harden continuously under heavy impact, maximizing wear resistance by up to 20-30%.
Mecanizado CNC de precisión: Adapter rings, seat liners, and mounting surfaces are manufactured to exact OEM dimensional tolerances to guarantee a seamless, wobble-free fit with the main frame and top shell.
Strict Quality Control: Every unit undergoes rigorous non-destructive testing (NDT), ultrasonic testing, and dimensional verification prior to export to eliminate internal casting defects.
Adquisición directa de fábrica: Se suministra directamente desde nuestras instalaciones de fabricación para eliminar los márgenes de intermediarios., ofreciendo una solución de alto retorno de la inversión para operaciones mineras y agregadas globales.
Pautas de mantenimiento: When to Replace Your Liner & Componentes de la tolva
Operating a crusher with worn or unevenly gapped liner and hopper components leads to poor particle shape, reduced throughput, and potential structural damage. We recommend inspecting the Transatlántico & Componentes de la tolva wear profiles during routine maintenance cycles:
| Enfoque de inspección | Señales de advertencia (Reemplazar inmediatamente) | Solución de mejores prácticas |
| Wear Metal Thickness | Liner thickness drops below the manufacturer’s recommended limit (typically less than 20-25 mm at the thinnest point). | Replace the bowl liner or hopper components immediately to maintain optimal closed-side setting (CSS) and crushing efficiency. |
| Severe Cracking & Pitting | Visible cracking, localized pitting, or severe uneven deformation on the crushing and feeding surfaces. | Swap the worn components and evaluate your feed arrangement to ensure a centered, 360-degree material flow. |
| Vibration & Production Drop | Excessive machine vibration or a sudden, unexplained drop in hourly production capacity. | Inspect the backing material, check high-strength fastener torque, and replace compromised wear parts. |
