What is a Cone Crusher Head?

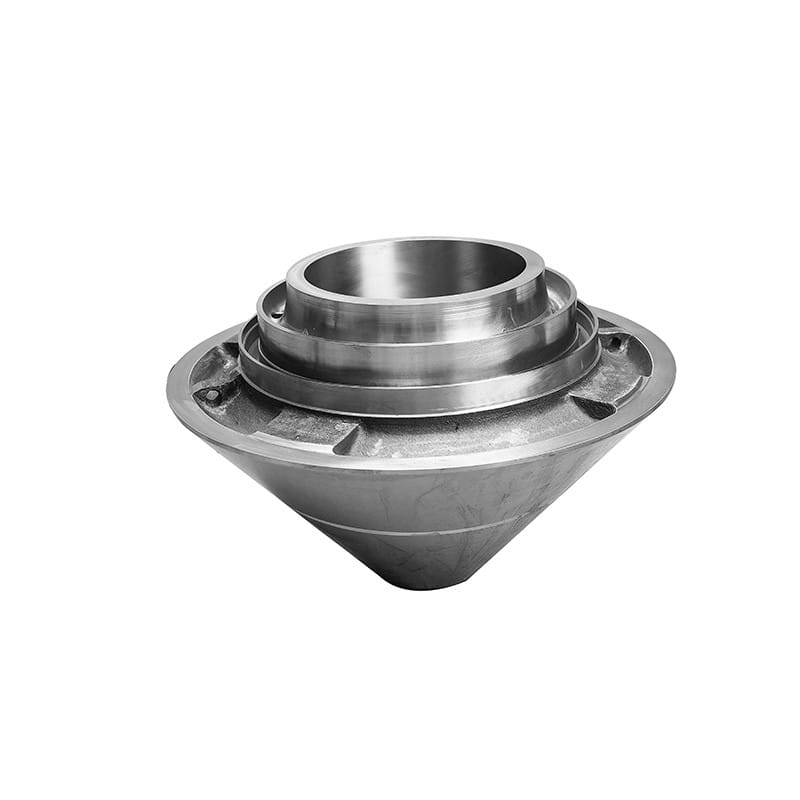

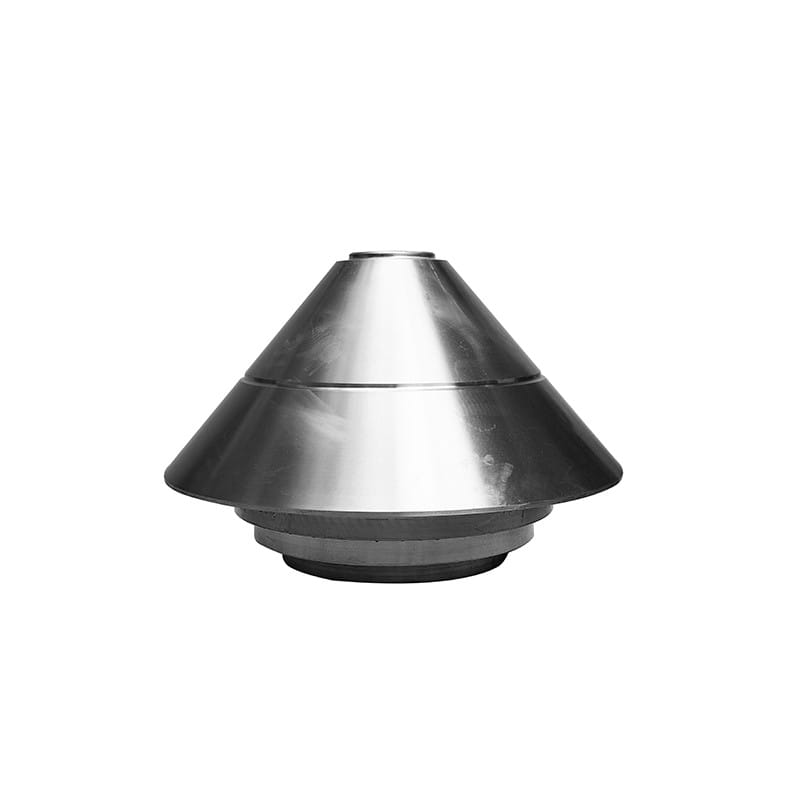

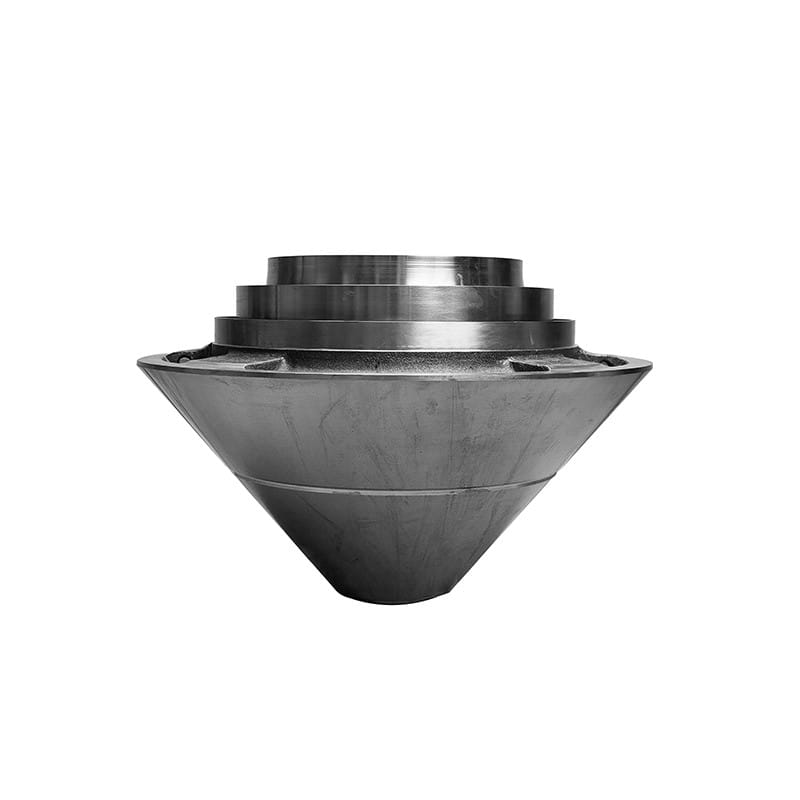

A Cone Crusher Head (often referred to as a crushing cone) is the massive primary structural foundation of the machine’s moving assembly. Its critical function is to securely hold the sacrificial manganese mantle and transmit immense, multi-directional crushing forces. Driven by the internal eccentric assembly, a premium Cone Crusher Head executes the powerful gyratory motion required to continuously fracture hard rock and ores, ensuring maximum volumetric throughput and stable aggregate reduction during high-tonnage operations.
Equipment Compatibility & OEM Cross-Reference
Our aftermarket replacement Cone Crusher Head assemblies are precision-engineered to be direct-fit upgrades for Metso crushers, significantly lowering your Total Cost of Ownership (TCO) while ensuring zero compatibility issues and maximum field uptime.
| Supported Brands | Applicable Crusher Series | Common OEM Part Numbers |
| Racines | Nordberg HP Series: HP100, HP200, HP300, HP400, HP500, HP800, HP4, HP6 | N82404314, N82404327, 7082404309, 7082404300, 7082404311, 7082404310, 1042472605 (Matches standard OEM specifications) |
Core Engineering & Technical Advantages
Because the crushing cone is subjected to extreme compressive loads and constant mechanical stress, standard castings can easily develop fatal internal cracks. Our premium Cone Crusher Head replacements are proudly manufactured in China to deliver unmatched heavy-duty durability:
Single-Piece Heavy Cast Steel: Poured from high-grade structural cast steel to eliminate internal porosity, providing massive tensile strength to withstand extreme kinetic shock loads.
Precision CNC Machining: The critical seating surfaces for the mantle and lower spherical bearing are machined to exact OEM tolerances, ensuring a flawless, vibration-free fit.
100% NDT Inspection: Every completed head undergoes rigorous ultrasonic and magnetic particle testing (NDT) to guarantee absolute internal structural integrity before leaving our foundry.
Optimized Weight Distribution: Engineered for perfect dynamic balance, reducing parasitic stress on the main shaft and eccentric bushings during high-speed gyration.
Maintenance Guidelines: When to Replace Your Cone Crusher Head
Operating a crusher with a compromised or warped head assembly will severely damage the main shaft and destroy the internal bronze bushings. We recommend thoroughly inspecting the Cone Crusher Head during every scheduled mantle change:
| Inspection Focus | Warning Signs (Replace Immediately) | Best Practice Solution |
| Mantle Seating Surface | Severe galling, uneven wear, or structural deformation on the conical seating area. | Replace the Cone Crusher Head. A warped seat will prevent the mantle from locking tightly, causing it to spin and destroy the head entirely. |
| Bushing & Bearing Interface | Deep scoring or out-of-round deformation where the head meets the upper head bushing or main shaft. | Swap the damaged head assembly to restore proper gyratory alignment and protect the expensive main shaft from scoring. |
| Structural Integrity | Hairline cracks detected on the main body during NDT or visual inspection. | Pull the damaged head immediately. Never attempt to weld a load-bearing head, as it will fail catastrophically under active crushing loads. |
