Description

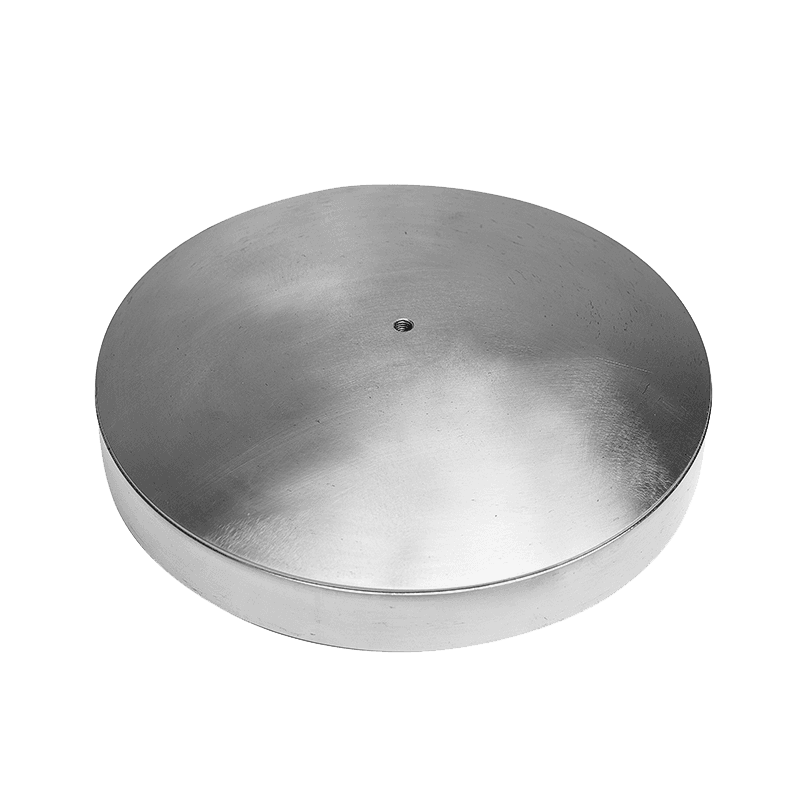

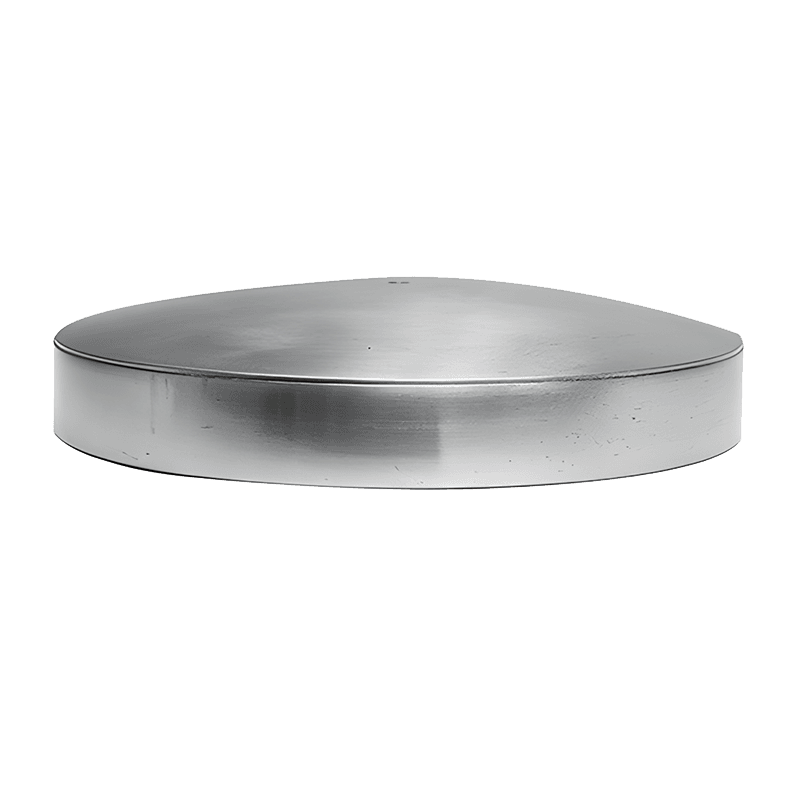

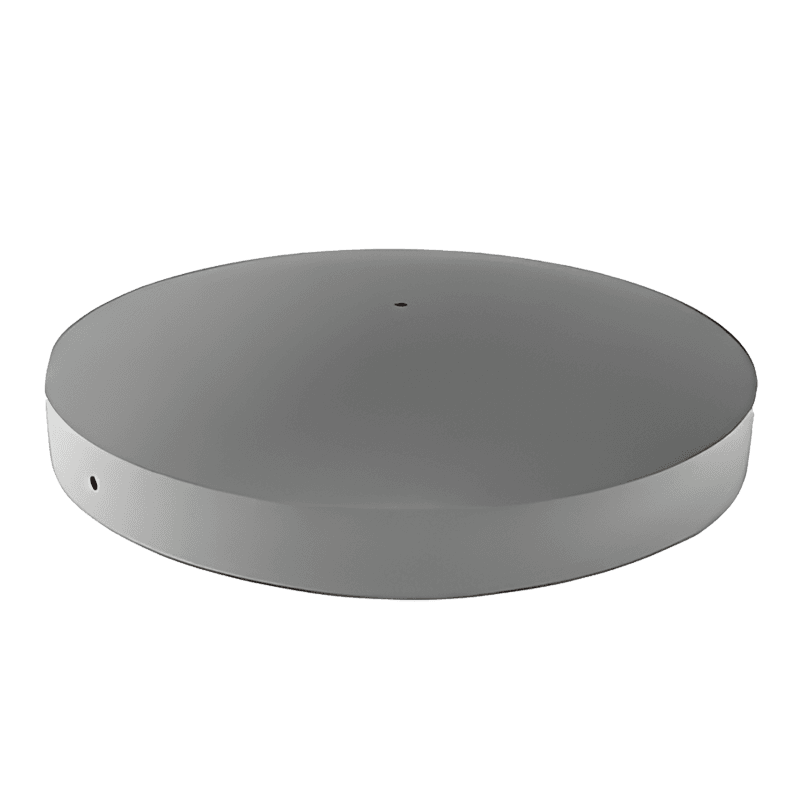

What is a Cone Crusher Head Ball?
A cone crusher Head Ball (also known as the feed plate or distribution cap) is a heavy-duty, wear-resistant component positioned at the very apex of the crushing head assembly. Its primary critical function is to evenly distribute raw aggregate material across the 360-degree crushing chamber during choke-feeding while shielding the upper head center from severe direct impacts. By smoothing out material flow and absorbing brutal initial kinetic loads, a premium Head Ball ensures balanced volumetric throughput (TPH) and protects internal structural components from premature fatigue.
Equipment Compatibility & OEM Cross-Reference
Our aftermarket replacement Head Ball components are precision-engineered to be direct-fit upgrades for Metso crushers, significantly lowering your Total Cost of Ownership (TCO) while ensuring zero compatibility issues and maximum field uptime.
| Supported Brands | Applicable Crusher Series | Common OEM Part Numbers |
| Racines | Nordberg HP Series: HP100, HP200, HP300, HP400, HP500, HP800, HP4, HP6 | 7024950501, 1057612000, 7024950500, 1057605158, 1057605124, 1057612434 (Matches standard OEM specifications) |
Core Engineering & Technical Advantages
Because the feed plate takes the brutal, first-point impact of heavy rocks entering the machine, standard castings can quickly wear thin or fracture. Our premium Head Ball replacements are proudly manufactured in China to deliver unmatched heavy-duty durability:
High-Grade Manganese Alloys: Cast from premium manganese steel (such as Mn14, Mn18, or custom work-hardening alloys) that continuously harden under heavy impact, maximizing surface abrasion resistance.

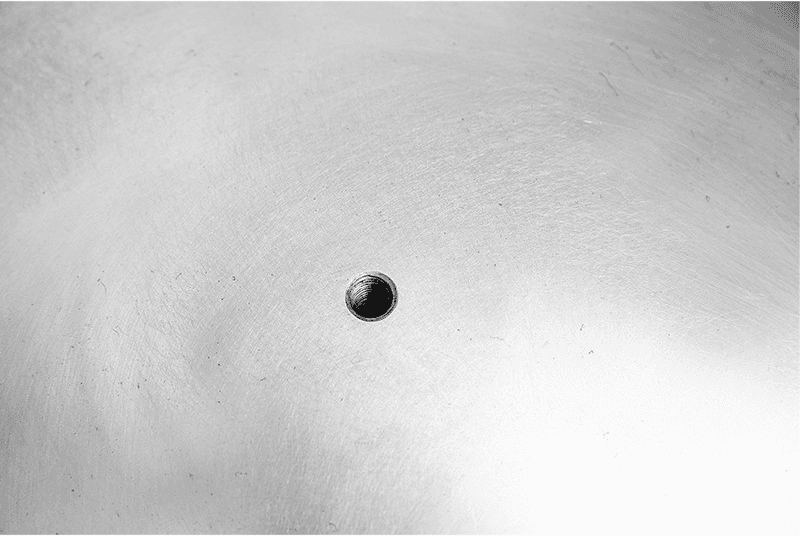

Precision CNC Seating: Machined to exact OEM dimensional tolerances to guarantee a tight, flush, vibration-free fit against the head center, preventing the ball from rattling loose.
Optimized Flow Profile: Designed with a smooth, symmetrical contour to ensure uniform rock distribution, preventing uneven mantle wear and minimizing localized chamber choking.
Factory-Direct Procurement: Supplied directly from our manufacturing facilities to eliminate middleman markups, offering a high-ROI solution for global mining and aggregate operations.
Maintenance Guidelines: When to Replace Your Head Ball
Operating a crusher with a worn-through or severely gouged head ball will disrupt material distribution, leading to uneven mantle wear and reduced throughput. We recommend inspecting the Head Ball during every routine mantle liner changeout:
| Inspection Focus | Warning Signs (Replace Immediately) | Best Practice Solution |
| Material Thickness | The manganese thickness has worn down past the critical service limit, exposing the underlying head center. | Replace the Head Ball immediately to prevent direct structural impact damage to the main crushing head. |
| Severe Gouging & Chipping | Deep impact craters, cracking, or material fracturing caused by severe tramp iron entry. | Swap the damaged component to ensure balanced material flow and prevent metal fragments from dropping into the circuit. |
| Mounting Security | The ball rattles loosely during operation or shows heavily deformed mounting bolt holes. | Pull the component. If the seating fit is compromised, replace it to prevent the guard from detaching under heavy loads. |
