Description

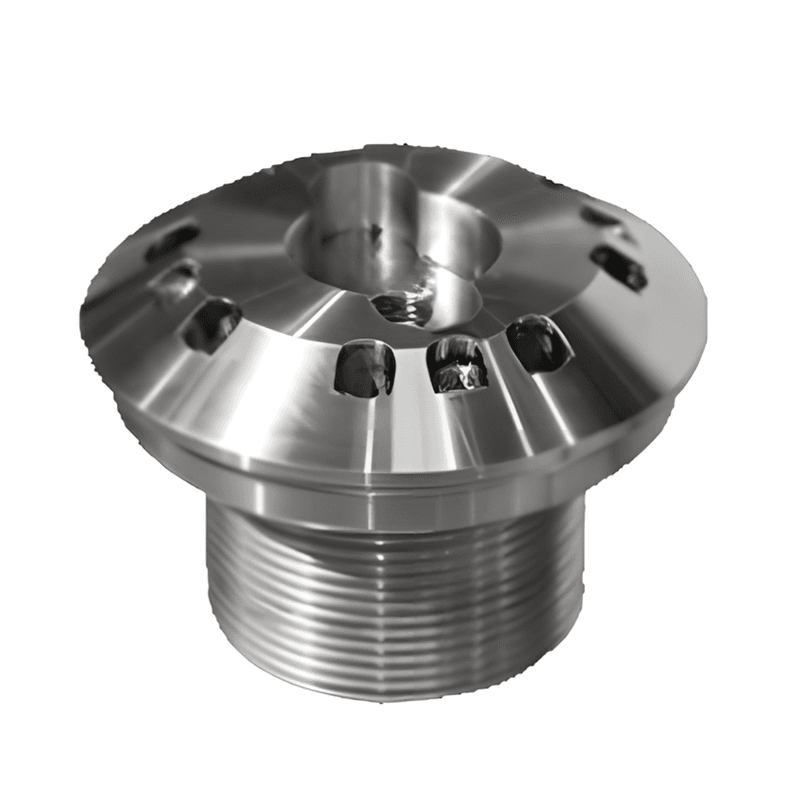

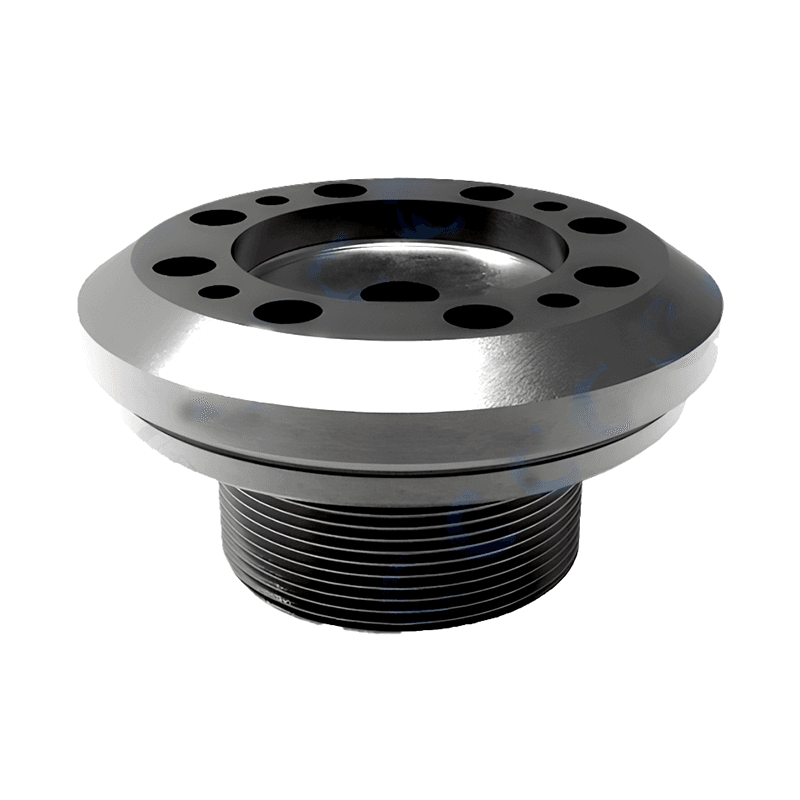

What is a Cone Crusher Locking Bolt?
A cone crusher Locking Bolt is a specialized, high-strength engineered fastener positioned at the top of the main shaft assembly. Its primary critical function is to firmly lock the feed plate assembly and torch ring in place above the crushing head and mantle. By securing these vital wear components, the locking bolt absorbs and transfers extreme rotational and vibrational forces during high-tonnage aggregate and mining operations, preventing premature component loosening or detachment.
Equipment Compatibility & OEM Cross-Reference
Our aftermarket replacement locking bolts are precision-engineered to be direct-fit upgrades for major global crusher brands, significantly lowering your Total Cost of Ownership (TCO) while ensuring zero compatibility issues.
| Supported Brands | Applicable Crusher Series | Common OEM Part Numbers |
| Racines | Nordberg HP Series: HP100, HP200, HP300, HP400, HP500, HP800, HP4, HP6 | 7041068004, 7041068006, 7041068005, N41060200, N41060201, 1019559608 (Matches standard OEM specifications for respective models) |
Core Engineering & Technical Advantages
Because the locking bolt operates in the brutal, high-vibration environment inside the crushing chamber, standard fasteners will quickly fail. Our premium locking bolts are manufactured to withstand continuous shock loads:
High-Tensile Alloy Construction: Forged from premium-grade alloy steel with advanced heat treatment, delivering exceptional tensile strength and fatigue resistance for long-term reliability.
Precision-Cut Heavy-Duty Threads: The bolt features deep, accurately machined threads that maintain a strong grip under extreme vibration, preventing loosening during continuous crusher operation.
Corrosion-Resistant Surface Treatment: Each Locking Bolt receives a specialized anti-corrosion treatment to withstand harsh mining and quarry environments, including exposure to moisture, dust, and chemicals.
Easy Maintenance Interface: Designed for quick tightening with standard tools, protecting the mantle and feed plate assembly from unnecessary wear.
Maintenance Guidelines: When to Replace Your Locking Bolt
Ignoring fastener wear can lead to component shifting and catastrophic feed plate detachment. We recommend inspecting the Locking Bolt during every scheduled maintenance cycle:
| Inspection Focus | Warning Signs (Replace Immediately) | Best Practice Solution |
| Thread Profile Wear | Thread clearance exceeds acceptable tolerances or shows visible stripping. | Pull the worn fastener and replace it to prevent in-operation loosening. |
| Head & Drive Profile | Bolt head or drive slots appear warped, flared, or deformed from heavy wrenching. | Swap the part to ensure secure, reliable tightening for the next liner cycle. |
| Microscopic Metal Fatigue | Hairline cracks or severe impact deformation detected during routine inspection. | Discard the damaged bolt immediately. Never reuse a heavily stressed high-tensile fastener. |
Explore More Crusher Main Shaft Components
To maintain peak crushing efficiency, ensure your maintenance inventory is stocked with fully compatible, premium wear parts. Browse our specific component categories:
Find precision-machined Cone Crusher Head Nut For Sandvik Cone Crusher and Main Shaft Assemblies for complete rebuilds.
Explore our robust aftermarket spares for Sandvik CH & CS Series Crushers.
View high-performance replacement parts for Metso HP Series Cone Crushers.
