Description

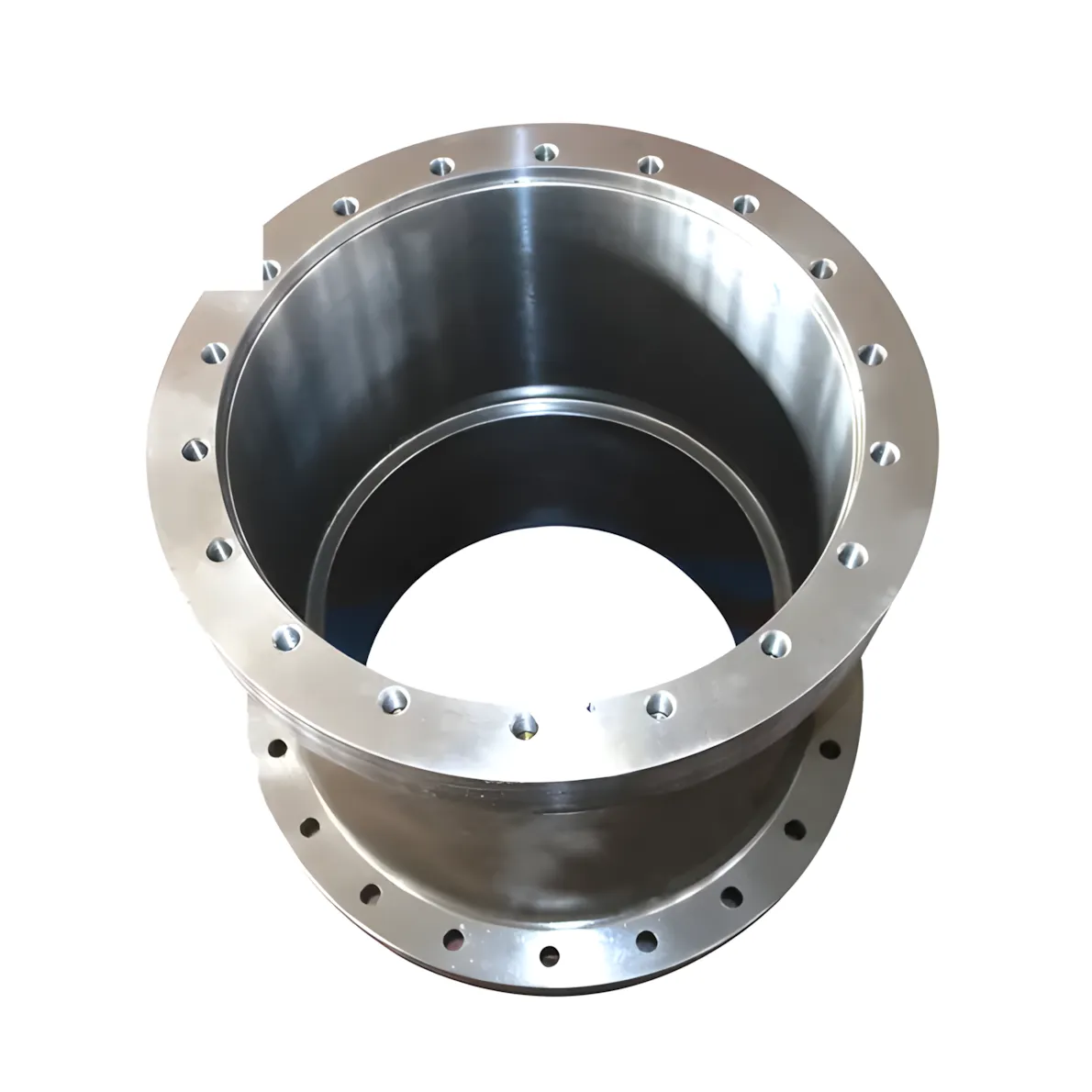

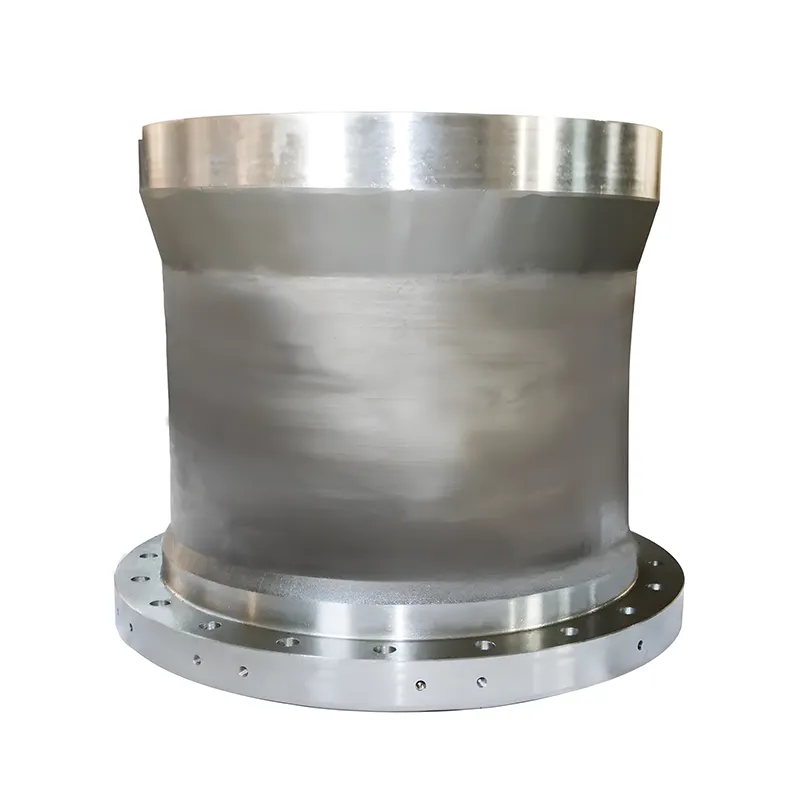

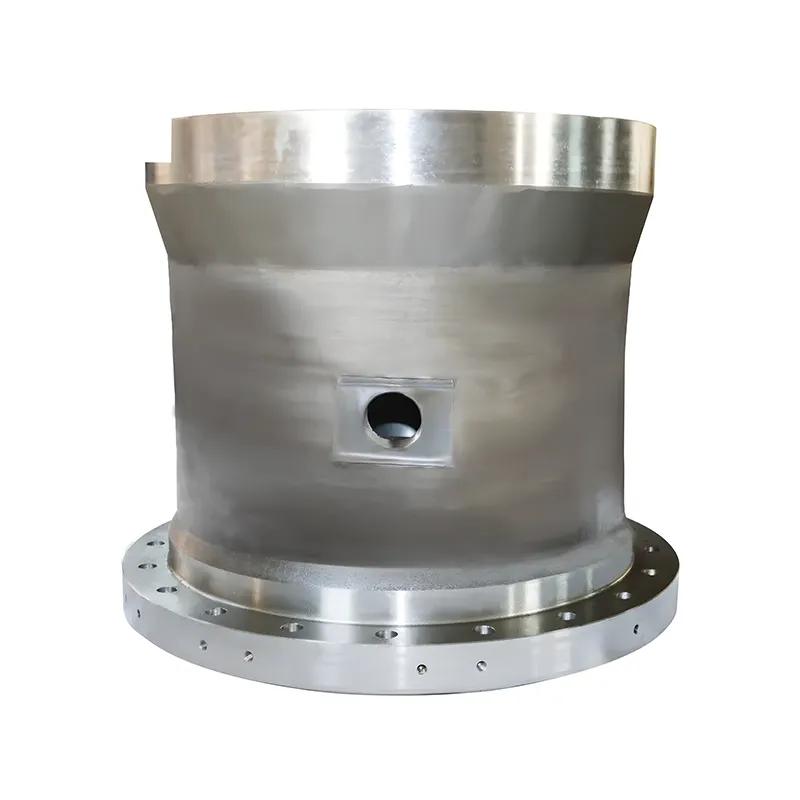

What is a Cone Crusher Hydroset Cylinder?
A Cylindre Hydroset est un véhicule robuste, high-pressure hydraulic vessel positioned at the very bottom of the crusher’s main frame. Its critical function is to house the hydroset piston and safely support the entire weight of the main shaft assembly. By managing hydraulic oil pressure, une prime Cylindre Hydroset allows operators to dynamically adjust the closed-side setting (CSS) and provides essential tramp iron relief, preventing catastrophic structural damage during high-tonnage aggregate reduction.
Compatibilité des équipements & Référence croisée OEM
Notre remplacement après-vente Cylindre Hydroset units are precision-engineered to be direct-fit upgrades for Sandvik crushers, réduisant considérablement votre coût total de possession (Coût total de possession) tout en garantissant zéro problème de compatibilité et une disponibilité maximale sur le terrain.
| Marques prises en charge | Série de concasseurs applicables | Numéros de pièces OEM courants |
| Sandvik | Concasseurs à cône stationnaires: CH420, CH430, CH440, CH660, CH860, CH870, CS420, CS430, CS440, CS660, H2000, H3000, H4000, H6000, H8000 Mobile Crushers: QH331, QH332, QH441, QH443E, QS332, UD211, UH311, UH312, UH316, UH320E, UH373, UH412, UH440E, UH640E, Royaume-Uni373, US316, US373, US440E, US640E | 442.7889, 442.7163, 442.8722, 452.0970, 452.5973 (Correspond aux spécifications OEM standard) |
Ingénierie de base & Avantages techniques
Because the hydraulic control system absorbs massive compressive forces and extreme pressure spikes during choke-feeding, standard housings can easily warp or rupture. Notre prime Cylindre Hydroset replacements are proudly manufactured in China to deliver superior high-pressure resilience for the global market:
High-Strength Cast Metallurgy: Poured from heavy-duty, high-tensile steel to prevent structural flex and maintain steady hydraulic holding pressure under extreme kinetic shock loads.
Precision CNC Bore Machining: The internal cylinder walls are machined to exact microscopic tolerances, ensuring flawless piston tracking and eliminating internal hydraulic fluid bypassing.
Advanced Seal Compatibility: Engineered to perfectly seat heavy-duty chevron packing and step seals, guaranteeing a 100% leak-free hydraulic circuit even during violent tramp iron events.
Rigid Pressure Testing: Every completed cylinder undergoes extreme hydrostatic pressure testing at the factory to guarantee zero porosity and maximum operational safety before export.
Directives d'entretien: When to Replace Your Hydroset Cylinder
A compromised hydraulic cylinder will cause an immediate loss of CSS control and expose the crusher to severe mechanical damage. Nous vous recommandons d'inspecter minutieusement le Cylindre Hydroset during routine teardowns:
| Objectif de l'inspection | Panneaux d'avertissement (Remplacer immédiatement) | Solution basée sur les meilleures pratiques |
| Internal Wall Scoring | Deep vertical scratches or gouges on the inner cylinder bore wall where the piston travels. | Remplacez le Cylindre Hydroset to restore a smooth sealing surface; re-machining is often not viable for high-pressure limits. |
| Hydraulic Fluid Leakage | Continuous external oil leaks originating from the cylinder base or hairline structural cracks. | Swap the damaged cylinder immediately to prevent complete loss of holding pressure and environmental contamination. |
| Erratic Shaft Movement | Inability to maintain a stable CSS, causing the main shaft to slowly drop during crushing operations. | Inspect the piston seals first. If the cylinder bore is deformed or out-of-round, replace the entire Cylindre Hydroset assembly. |
Explore More Crusher Hydraulic & Wear Components
Pour maintenir le débit volumétrique de concassage maximal (TPH), assurez-vous que votre inventaire de maintenance est approvisionné avec des produits entièrement compatibles, pièces haut de gamme. Parcourez nos catégories de composants spécifiques:
Trouvez des produits usinés avec précision Hydroset Pistons et Main Shafts for complete Sandvik drive train rebuilds.
Découvrez nos pièces de rechange robustes pour Sandvik CH & Concasseurs série CS.
Afficher le remplacement haute performance Inner Head Nuts et Doublures de manteau pour concasseurs à cône Sandvik.
