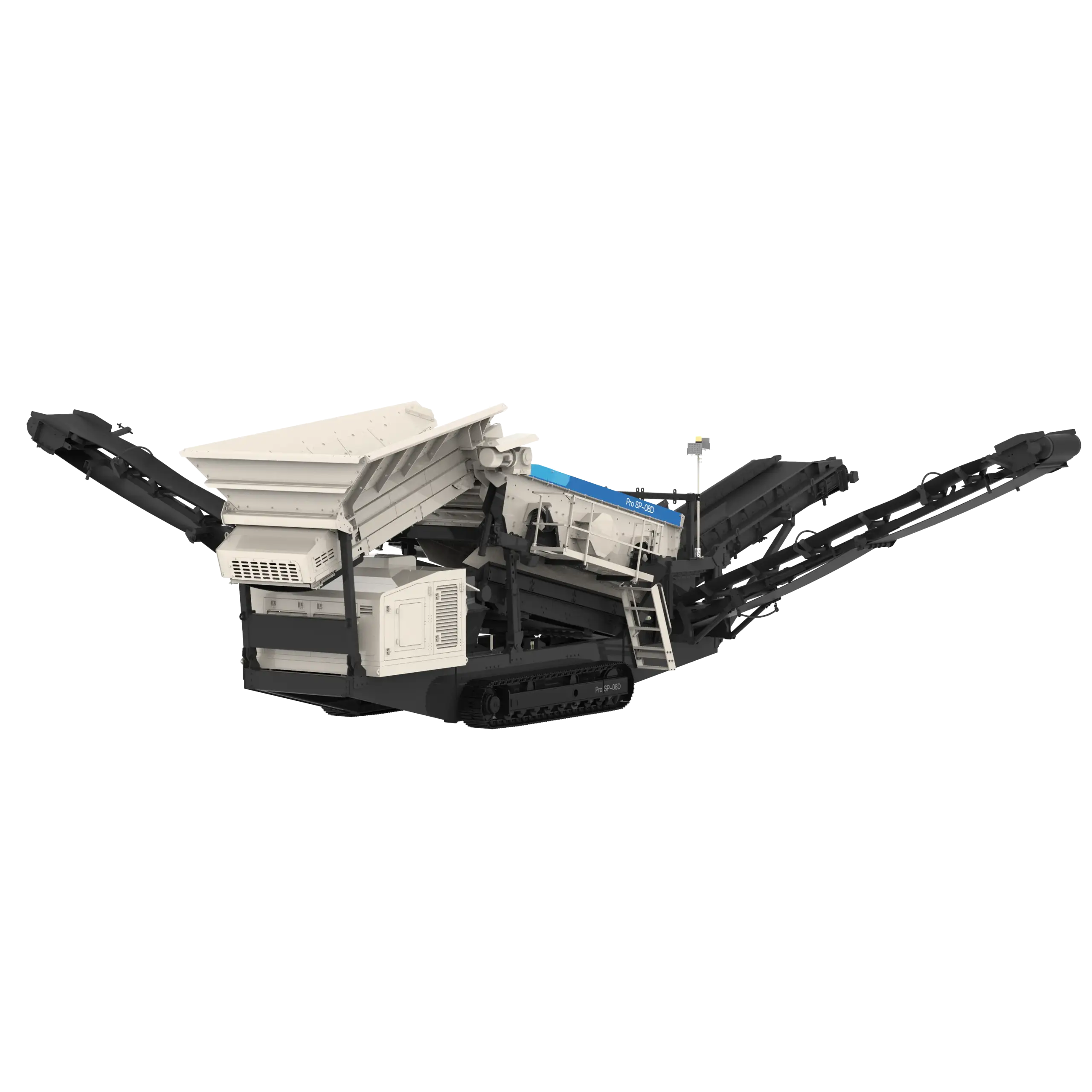

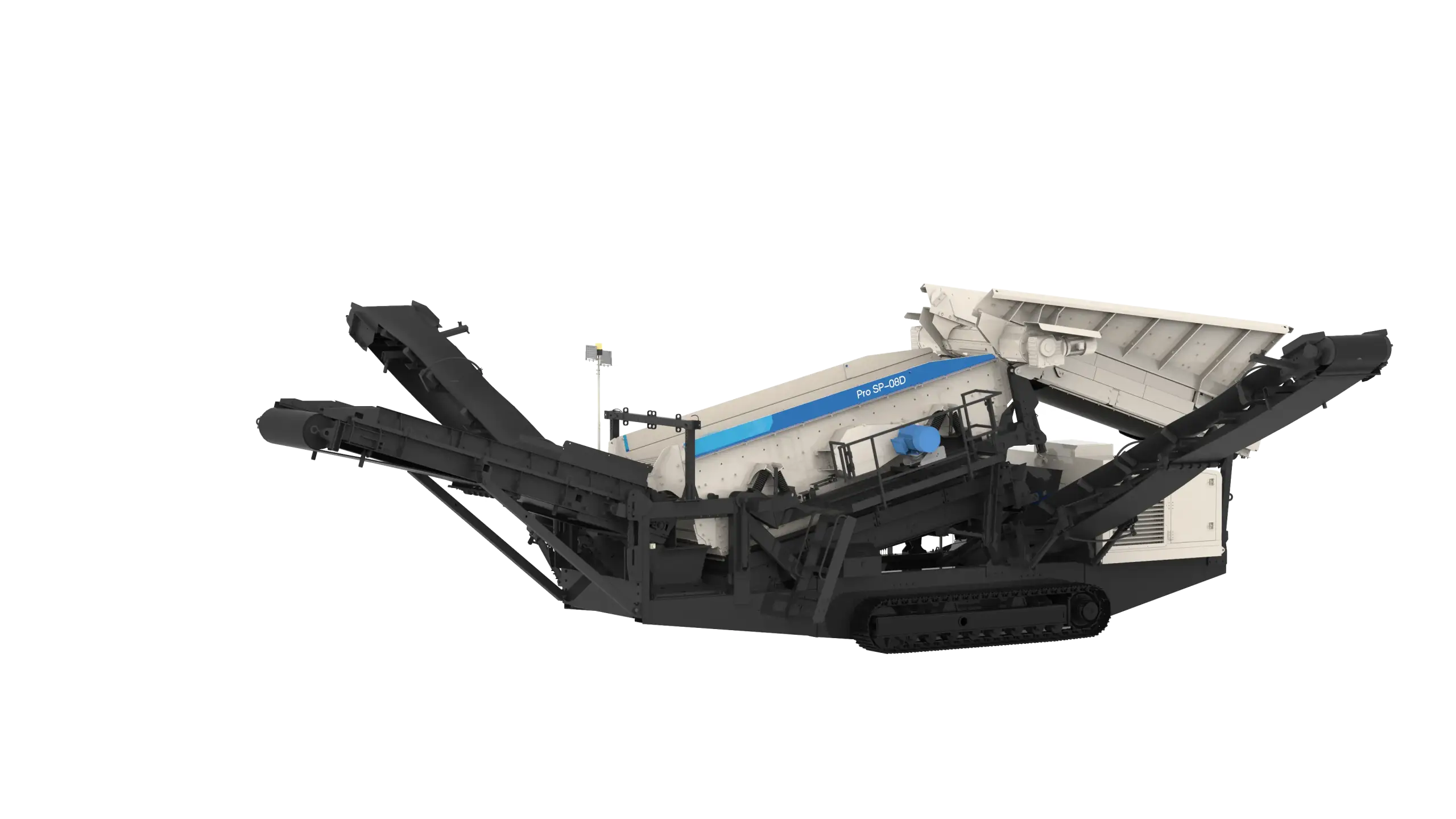

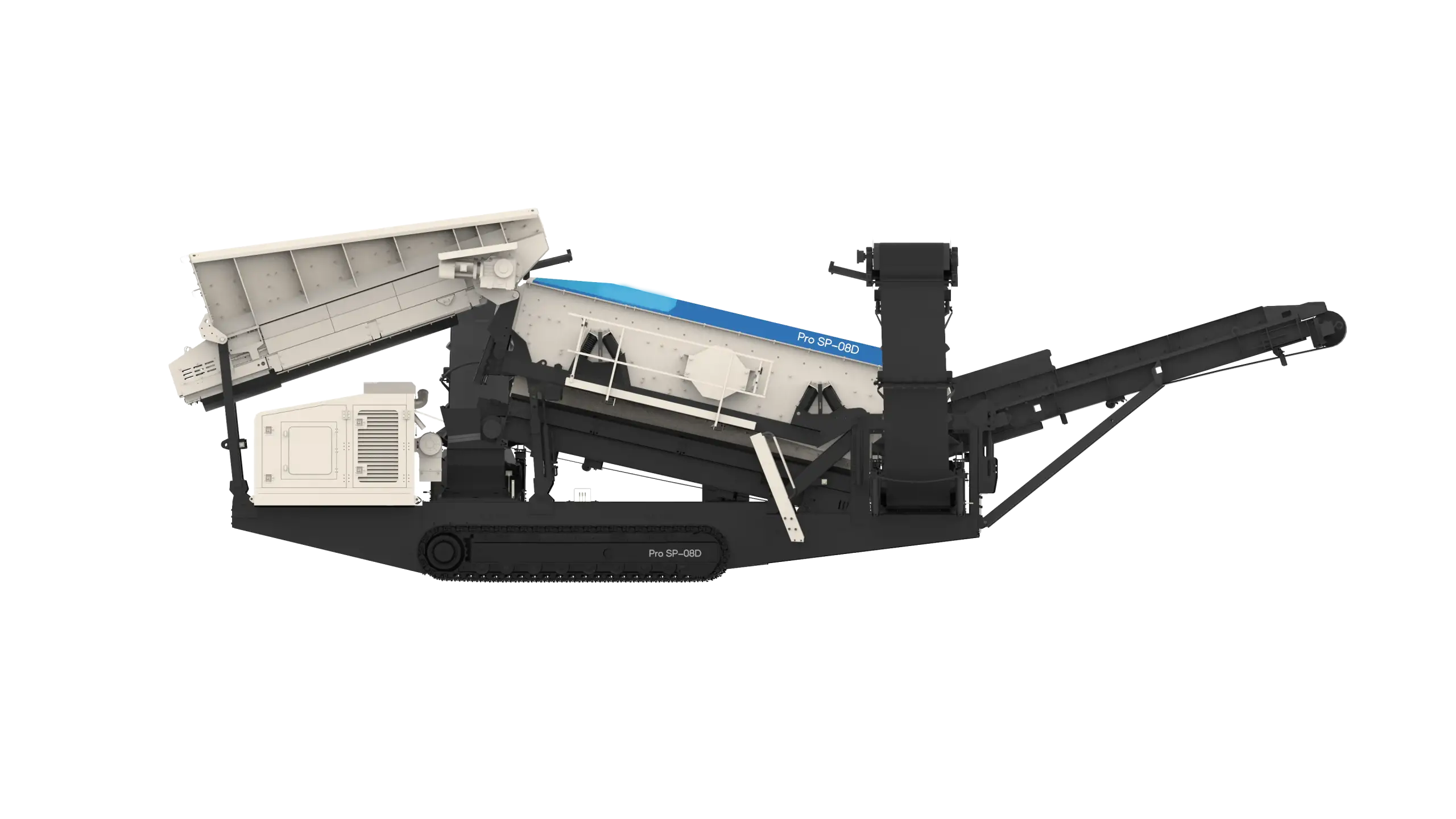

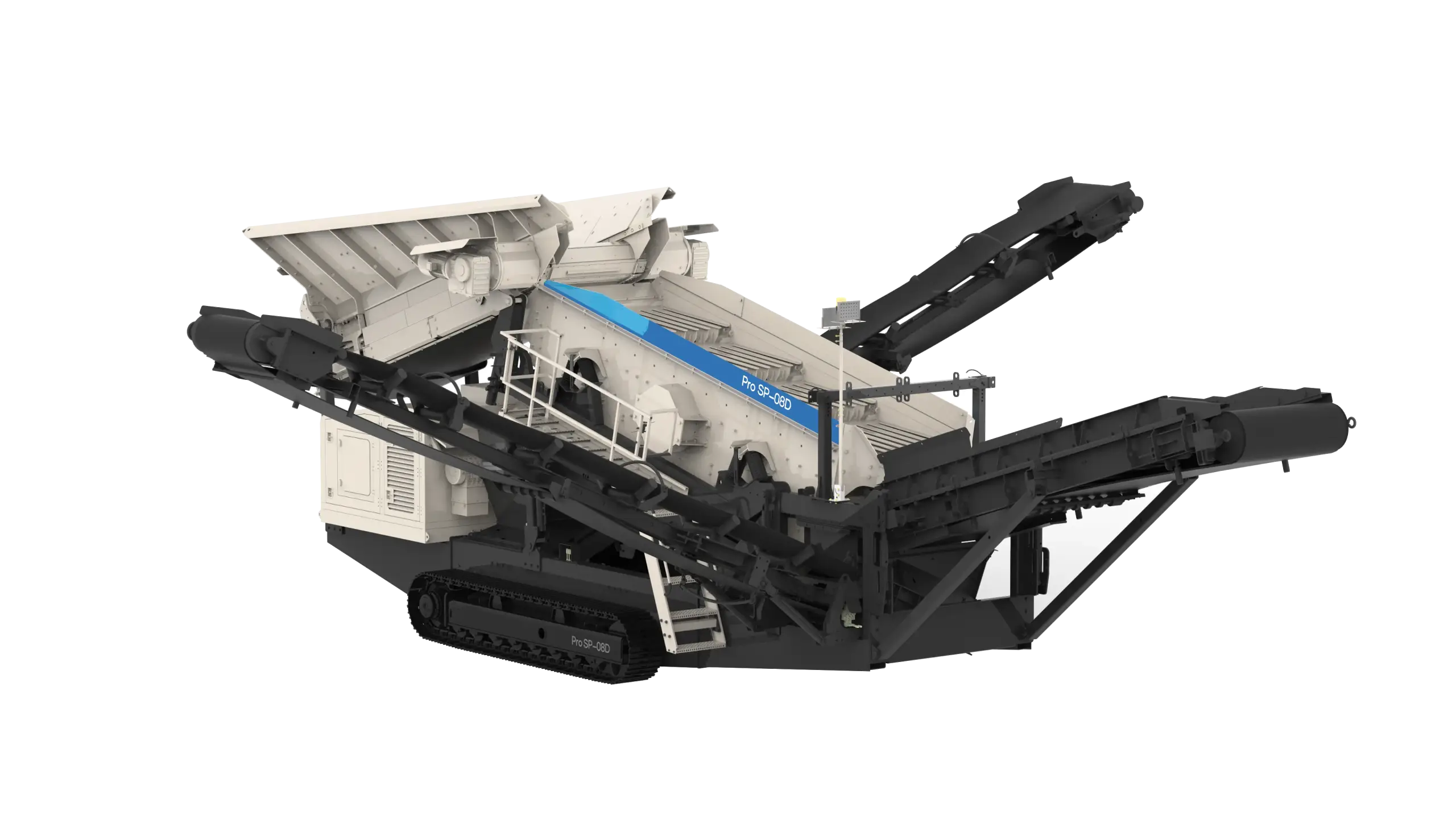

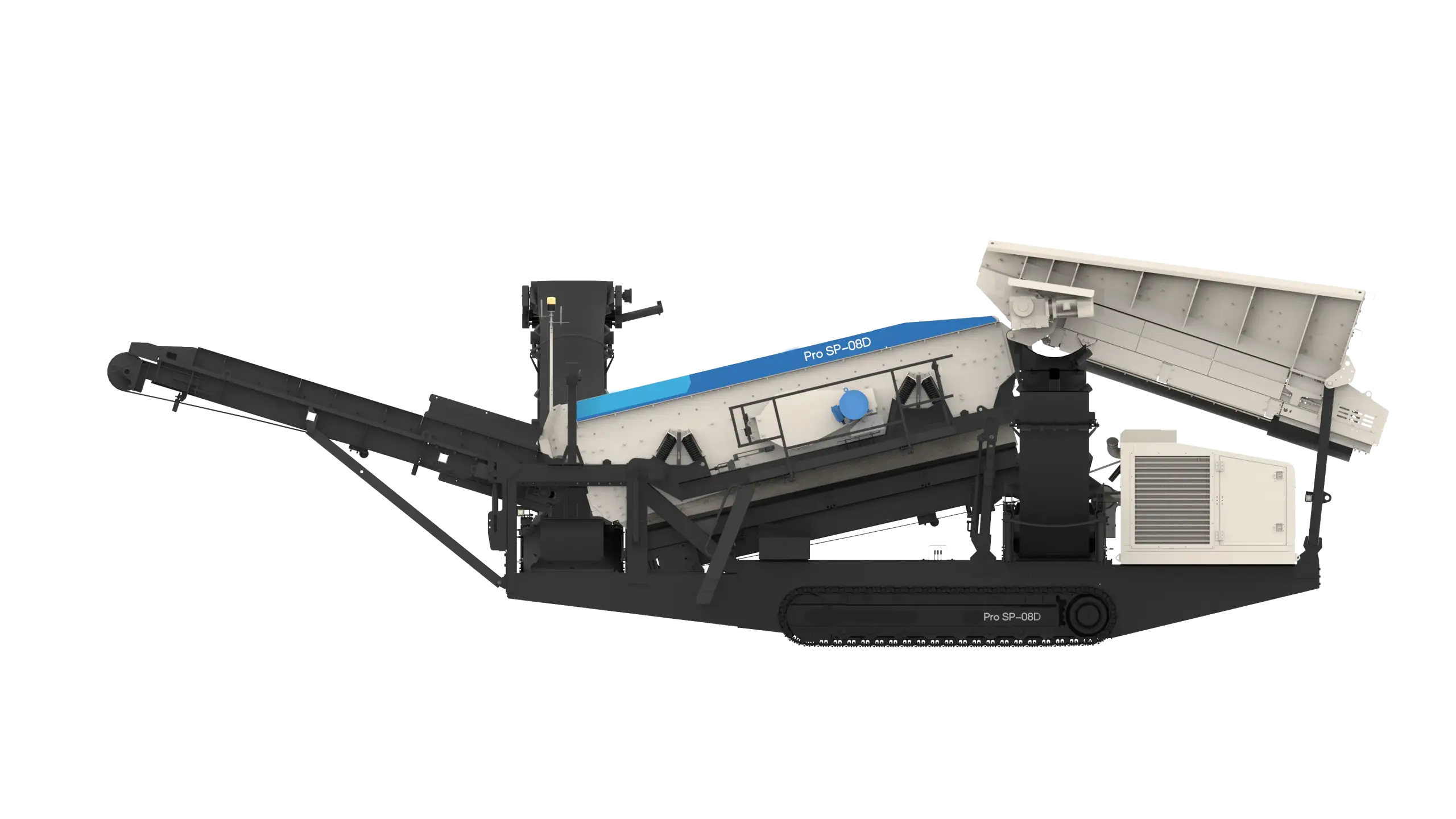

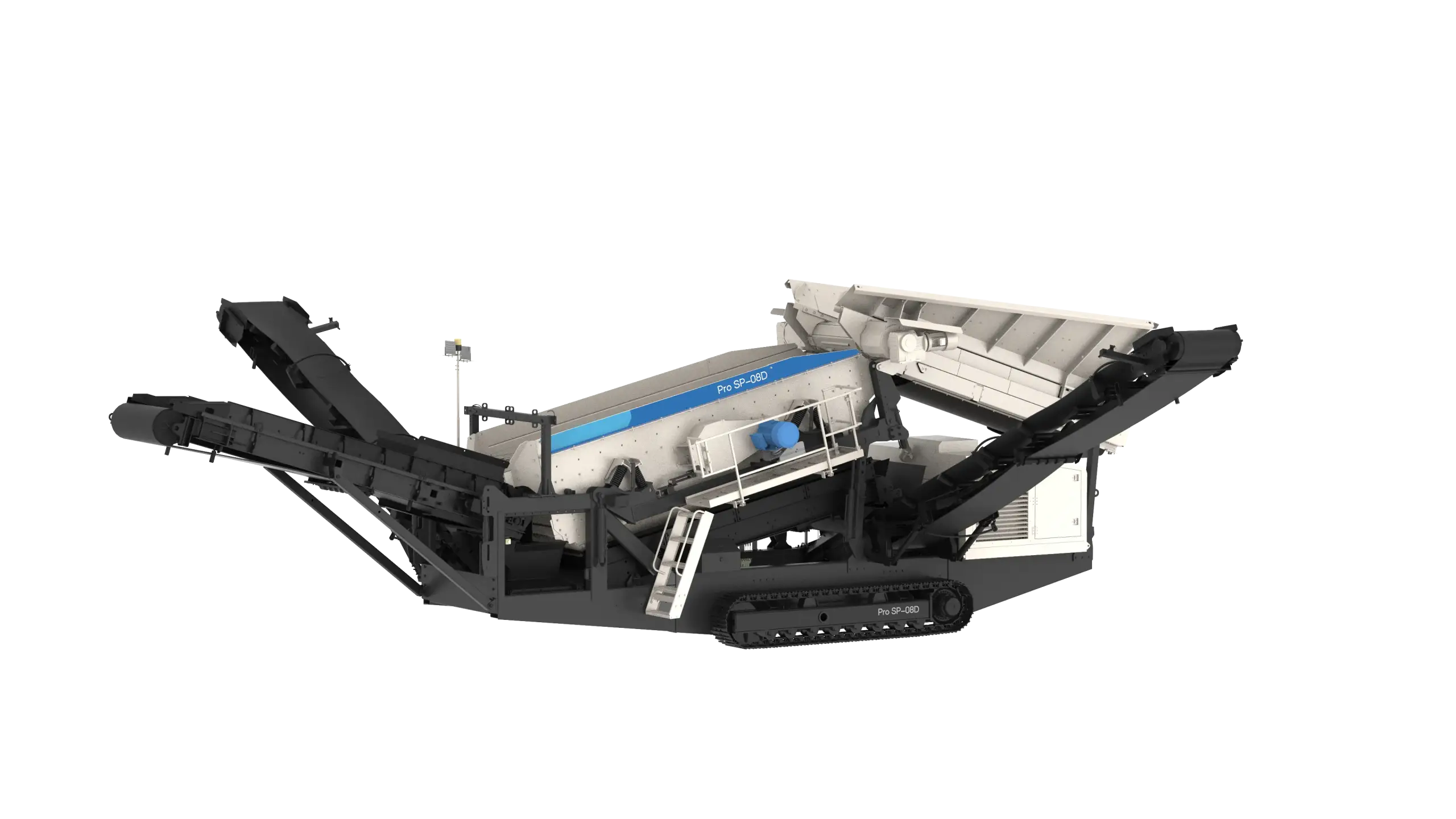

Introduce of SW Pro SP08D Mobile Scalping Screener
El SW Pro SP-08D Mobile Scalping Screener is a robust, heavy-duty scalping screen that operates effectively as a standalone unit or in tandem with a primary crusher. It excels at pre-screening feed materials with high fine content, such as topsoil, earthwork, recycled waste, river gravel, and slag. Additionally, the SP-08D efficiently handles sticky recycled materials that typically challenge standard screens. Its dual-power system offers maximum operational flexibility, allowing users to switch between the external power grid and the onboard generator depending on site conditions.
Main Components of SW Pro SP08D Mobile Scalping Screener
Heavy Duty Vibrating screen >>>
High stroke for efficient separation in sticky material. Double screen decks with the same screening area ensures screening efficiency. Various selection of versatile screen media to meet different working conditions.
Alimentador >>>
Feed chute is made of high-strength and abrasion resistant steel. Standard apron feeder ensures stable feeding of coarse material. Belt feeder is optional.
Transportador de gran tamaño >>>
Ultra-wide chevron belt conveyor ensures continuous conveying oversize material and maximizes the discharge height.
Midsize conveyor >>>
Chevron belt conveyor with higher discharge height. Foldable for easy transportation.
Fines conveyor >>>
Chevron belt conveyor with higher discharge height. Foldable for easy transportation.
Service platform >>>
Safer and more convenient daily maintenance.
Unidad de potencia >>>
Dual-power technology – flexible switching between diesel or plug-in electric operating modes, resulting in significant savings in operating costs.
Pistas >>>
Tracks make SP-08D Mobile Scalping Screener easy to move at sites.
Especificaciones técnicas
| información general >>> | ||
|---|---|---|
| Capacidad | 150 – 500 t/h | 165 – 551 st/h |
| Fuerza | 60 kilovatios | 80 caballos de fuerza |
| Dimensiones de transporte L x An x Al | 18,000 incógnita 3,150 incógnita 3,650 milímetros | 59′ x 10’4″ x 12′ |
| Dimensiones de trabajo L x An x Al | 18,800 incógnita 15,900 incógnita 6,200 milímetros | 61’6″ x 52’2″ x 20’3″ |
| Peso | 32,000 kilos | 70,547 lb |
| Criba vibratoria >>> | ||
| Tamaño de alimentación máximo recomendado | 150 milímetros | 5.9″ |
| Tamaño | 5,480 incógnita 1,520 milímetros | 17’11” x 5′ |
| Área de detección | 8.4 m2 | 10 yd2 |
| Cubiertas | 3 | 3 |
| Ataque | 8 – 10 milímetros | 0.3″ – 0.4″ |
| Fuerza | 15 kilovatios | 20 caballos de fuerza |
| Alimentador >>> | ||
| Type | Belt feeder with tipping grid （optional) | |
| Hopper Volume | 7.5 m3 | 9.8 yd3 |
| Altura de carga (w. / w.o. tipping grid) | 2,500 milímetros / 3,400 milímetros | 8’2″ / 11’1″ |
| Ancho de carga | 4,700 milímetros | 15’3″ |
| Lifting Conveyor >>> | ||
| Longitud | 11,200 milímetros | 36’9″ |
| Ancho | 1,050 milímetros | 42″ |
| Top deck side conveyor >>> | ||
| Longitud | 10,000 milímetros | 32’10” |
| Ancho | 650 milímetros | 26″ |
| Discharge height* | 4,800 / 5,300 milímetros | 15’7″ / 17’5″ |
| *Adjustable discharge height | ||
| Middle / bottom deck side conveyor >>> | ||
| Longitud | 7,600 milímetros | 24’11” |
| Ancho | 800 milímetros | 32″ |
| Altura de descarga | 3,900 milímetros | 12’8″ |
| Transportador de producto >>> | ||
| Longitud | 7,900 milímetros | 25’11” |
| Ancho | 1,200 milímetros | 48″ |
| Altura de descarga | 4,100 milímetros | 13’5″ |
| Unidad de potencia >>> | ||
| Modelo | Cummins QSB3.9 | |
| Fuerza | 110 kilovatios | 148 caballos de fuerza |
| Opciones >>> | ||
| Remote control | High pressure water pump (water spaying pipes and nozzles pre-equipped as standard) | |
| Guardapolvo | Working light mast led | |
Aplicaciones >>>
SW Pro SP08D Mobile Scalping Screener functions perfectly as an independent station or as part of a mobile crushing circuit. It delivers high-efficiency screening for a variety of sectors, including mining, agregar, and recycling.
