What is a Cone Crusher Socket Assembly?
A cone crusher Socket Assembly is a heavy-duty upper support and spherical bearing module positioned at the top of the main frame. Its primary critical function is to house the upper socket liner and provide a precise, low-friction spherical seating surface for the head ball. By supporting the massive radial and axial loads of the moving head assembly while allowing smooth gyratory movement, a premium Socket Assembly ensures stable closed-side setting (CSS) performance, eliminates binding during crushing, and protects internal structural components from catastrophic wear.
Equipment Compatibility & OEM Cross-Reference
Our aftermarket replacement Socket Assembly components and individual sub-parts are precision-engineered to be direct-fit upgrades for Metso crushers, significantly lowering your Total Cost of Ownership (TCO) while ensuring zero installation issues and maximum field uptime.

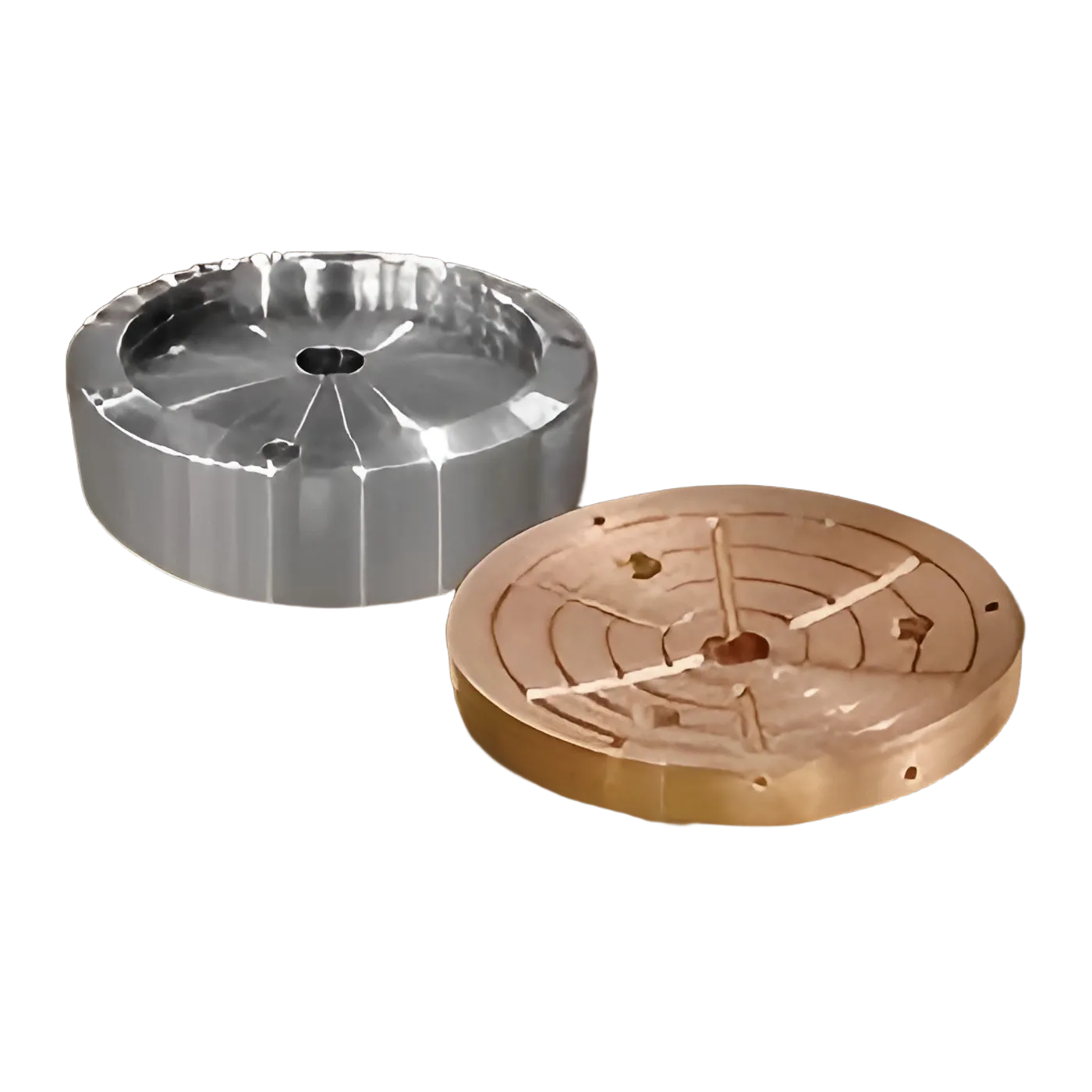

Specification of Socket Assembly For Metso HP Series Cone Crusher
Product Name: Socket Assembly
Categorías: Cone Crusher Spare Part > > Socket Assembly
Application For Metso HP100 / HP200 / HP300 / HP400 / HP500 / HP800 / HP4 / HP6 Cone Crusher
Product Include: Socket Liner, Socket
Part Number List
| Model | Part Number | Description |
|---|---|---|
| HP100 | 7039608500 | Socket |
| HP200 | 1093020078 | Socket assembly |
| HP200 | 1073810178 | Socket |
| HP200 | 1048721001 | Socket liner |
| HP300 | 7090048101 | Socket assembly |
| HP300 | 7039608251 | Socket |
| HP300 | 7035800600 | Socket liner |
| HP300 | 7001619303 | Pin |
| HP400 | N90048105 | Socket assembly |
| HP400 | 1073814256 | Socket |
| HP400 | N35800601 | Socket liner |
| HP400 | N01619330 | Pin |
| HP500 | 1093050067 | Socket assembly |
| HP500 | 1073817084 | Socket |
| HP500 | 1048723201 | Socket liner |
| HP500 | N01619334 | Pin |
| HP800 | 1093080001 | Socket assembly |
| HP800 | 1073817098 | Socket |
| HP800 | 1048724025 | Socket liner |
Core Engineering & Technical Advantages
Because the socket module absorbs continuous, heavy multi-directional crushing shocks and high-load rotational friction, standard components can warp, score, or seize. Our premium Socket Assembly units are proudly manufactured in China to deliver unmatched heavy-duty durability:
Complete Drop-In Module: Every assembly integrates the heavy structural socket housing, high-grade bronze alloy socket liner, and precision alignment pin, factory-matched and tested for immediate on-site installation.
High-Grade Bronze Socket Liners: Cast from durable bronze alloys designed to provide superior anti-friction characteristics, reducing wear on the head ball and offering an easily replaceable sacrificial layer.
Heavy-Duty Steel Construction: The main socket housing is built from high-strength steel to withstand massive mechanical stresses, preventing structural yielding under choke-feeding conditions.
Precision CNC Machining: Spherical seating surfaces and pin bores are machined to exact microscopic tolerances, ensuring a zero-vibration fit and smooth gyratory movement.
Maintenance Guidelines: When to Replace Your Socket Assembly
Operating a crusher with a worn socket liner or a scored socket housing will cause misalignment of the head assembly, leading to severe vibration and accelerated wear. We recommend thoroughly inspecting the Socket Assembly components during major maintenance overhauls:
| Inspection Focus | Warning Signs (Replace Immediately) | Best Practice Solution |
| Liner Thickness & Scoring | Severe scoring, deep grooving, or wear extending past the critical service limit on the bronze socket liner. | Replace the worn Socket Liner immediately to protect the expensive underlying head ball and socket housing. |
| Spherical Fit & Play | Excessive vertical or radial clearance detected between the head ball and the socket seating surface. | Swap the component module or liner set to restore proper running clearances and eliminate destructive hammering. |
| Structural Metal Fatigue | Hairline cracks, deep fretting, or structural deformation detected on the main socket housing or alignment pin slots. | Pull the damaged component immediately. Never attempt to weld load-bearing spherical housings, as they will fail under crushing loads. |
