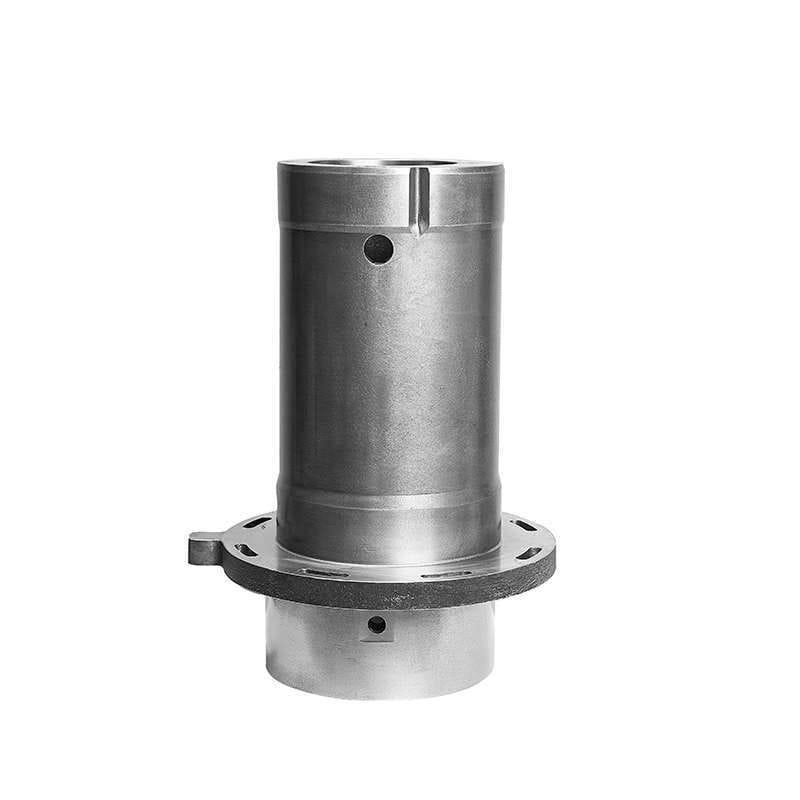

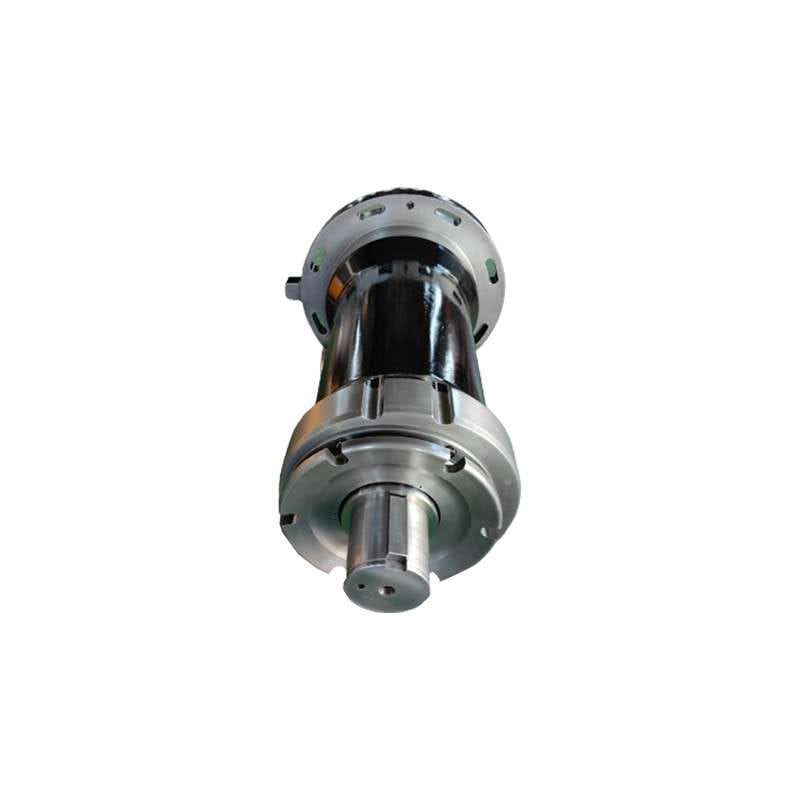

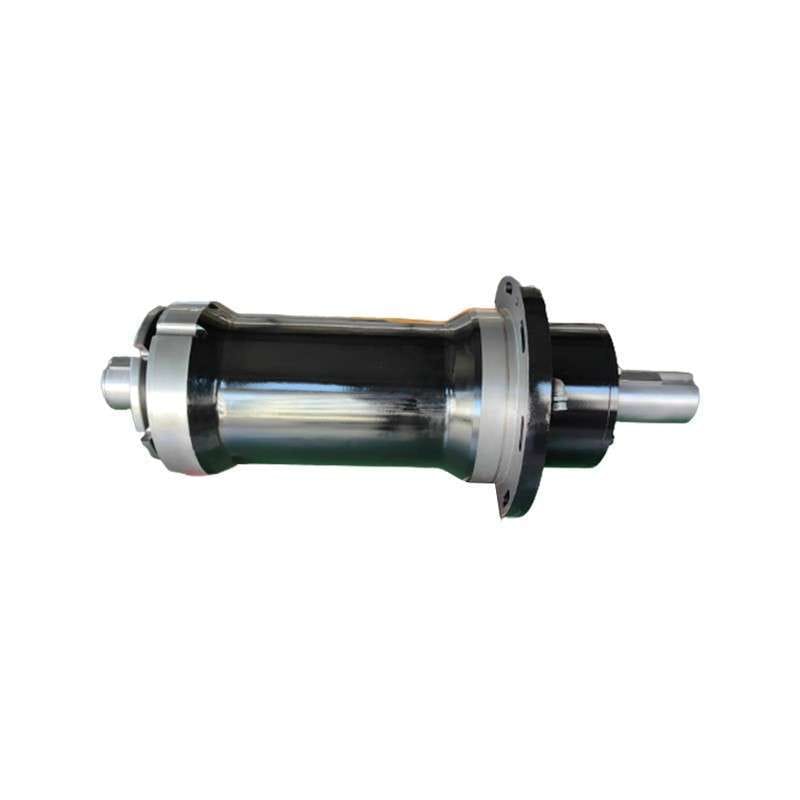

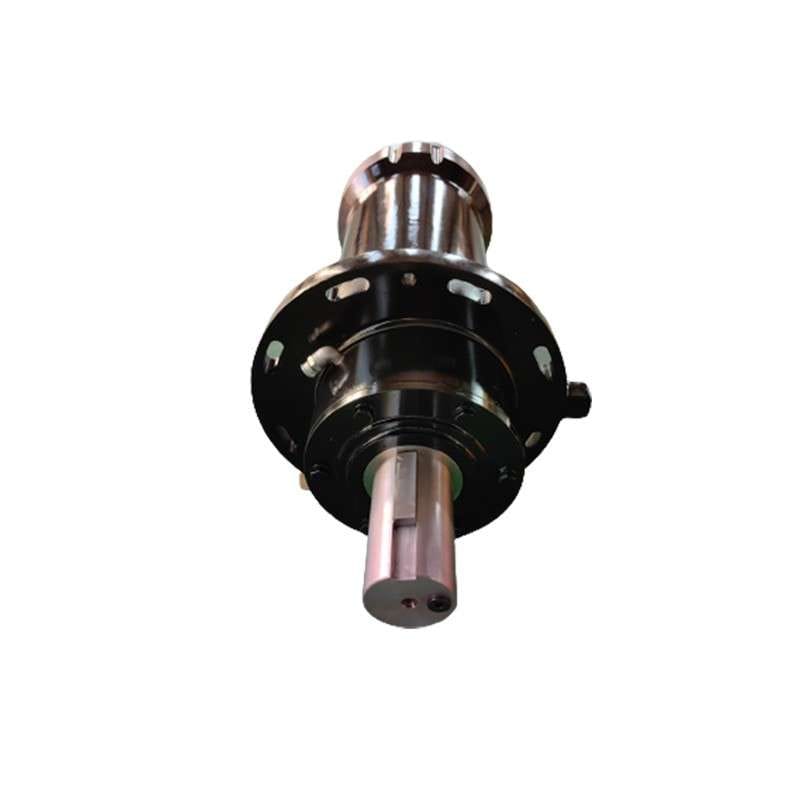

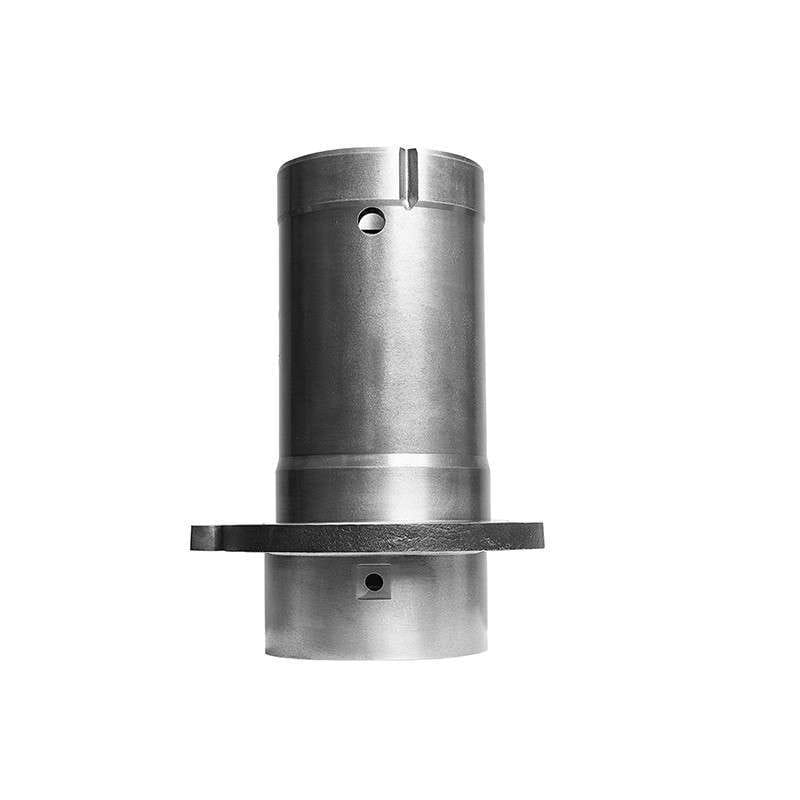

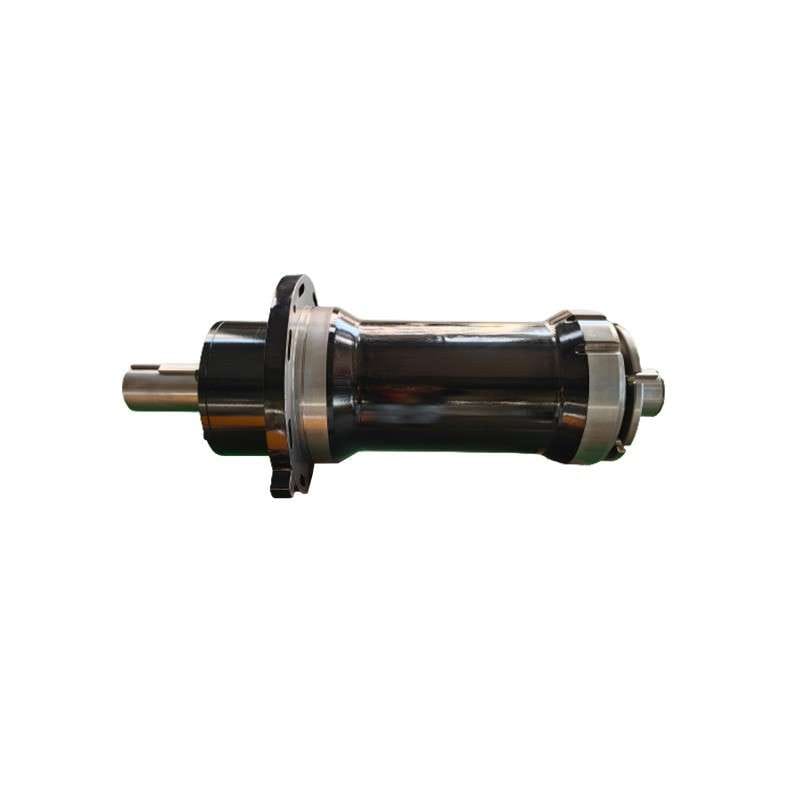

What is a Cone Crusher Pinion Shaft Housing?
A cone crusher Pinion Shaft Housing is a heavy-duty structural casting that securely encloses the entire horizontal drive shaft (pinion shaft) and its critical bearing assemblies. Mounted directly to the main frame, its primary function is to maintain absolute, rigid alignment of the drive pinion gear with the internal eccentric gear. A premium Pinion Shaft Housing handles immense torsional vibration and completely seals the internal lubrication system, ensuring smooth power transmission and protecting the drive train from catastrophic failure during high-tonnage aggregate reduction.
Equipment Compatibility & OEM Cross-Reference
Our aftermarket replacement Pinion Shaft Housing modules are precision-engineered to be direct-fit upgrades for Sandvik crushers, significantly lowering your Total Cost of Ownership (TCO) while ensuring zero compatibility issues and maximum field uptime.
| Supported Brands | Applicable Crusher Series | Common OEM Part Numbers |
| Sandvik | Série CH: CH420, CH430, CH440, CH660, CH870, CH890 Série CS: CS420, CS430, CS440, CS660 Série H: H2800, H3800, H4800, H6800, H7800, H8800 Série S: S2800, S3800, S4800, S6800 | 442.7949, 442.7506, 442.8764, 452.0657, 442.9806 (Matches standard OEM specifications) |
Core Engineering & Technical Advantages
Because the primary drive train absorbs continuous kinetic shock loads, standard housings can easily warp or suffer from metal fatigue. Our premium Pinion Shaft Housing replacements are proudly manufactured in China to deliver unmatched heavy-duty durability:
- High-Grade Cast Steel: Poured from high-strength structural cast steel to withstand extreme multi-directional vibrations and prevent catastrophic fatigue cracking over years of continuous service.
- Precision CNC Machining: The internal bearing bores and mounting flanges are machined to exact OEM dimensional tolerances, guaranteeing a perfect zero-play fit and flawless gear mesh alignment.
- Optimized Seal Integrity: Engineered with precision-cut seal grooves to securely hold O-rings and oil seals, completely preventing hydraulic lubricant leaks and locking out abrasive silica dust.
- Rigid Quality Control: Every housing undergoes rigorous dimensional verification and defect testing to eliminate microscopic casting flaws before global export.
Maintenance Guidelines: When to Replace Your Pinion Shaft Housing
Operating a crusher with a compromised housing will severely misalign the drive gears, leading to rapid tooth shearing and bearing seizure. We recommend inspecting the Pinion Shaft Housing during routine drive train overhauls:
| Inspection Focus | Warning Signs (Replace Immediately) | Best Practice Solution |
| Bearing Bore Wear | The internal bearing seating area shows signs of fretting, deep scoring, or out-of-round deformation (ovalization). | Swap the housing. A deformed bore cannot securely hold the bearings, leading to destructive pinion shaft wobbling. |
| Structural Integrity | Visible hairline cracks on the external casting body or continuously loose/deformed mounting bolt flanges. | Replace the Pinion Shaft Housing immediately to prevent the drive train assembly from shifting or detaching under heavy loads. |
| Persistent Oil Leaks | Continuous heavy oil leaking from the housing seals despite installing new O-rings and gaskets. | Inspect the seating surfaces. If the seal grooves are warped or scoured, replace the housing to permanently lock in essential lubrication. |
