Description

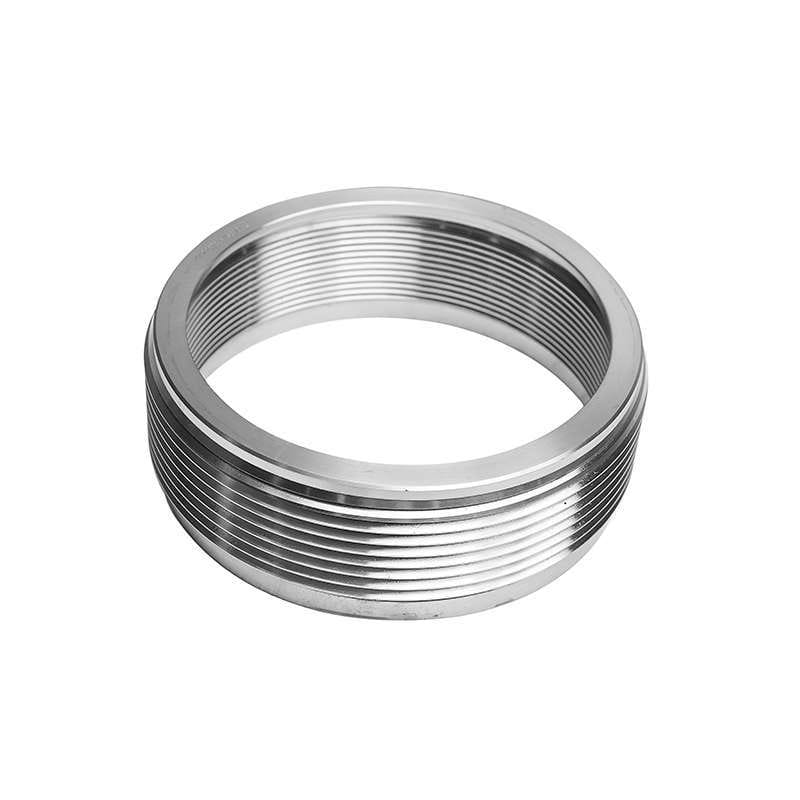

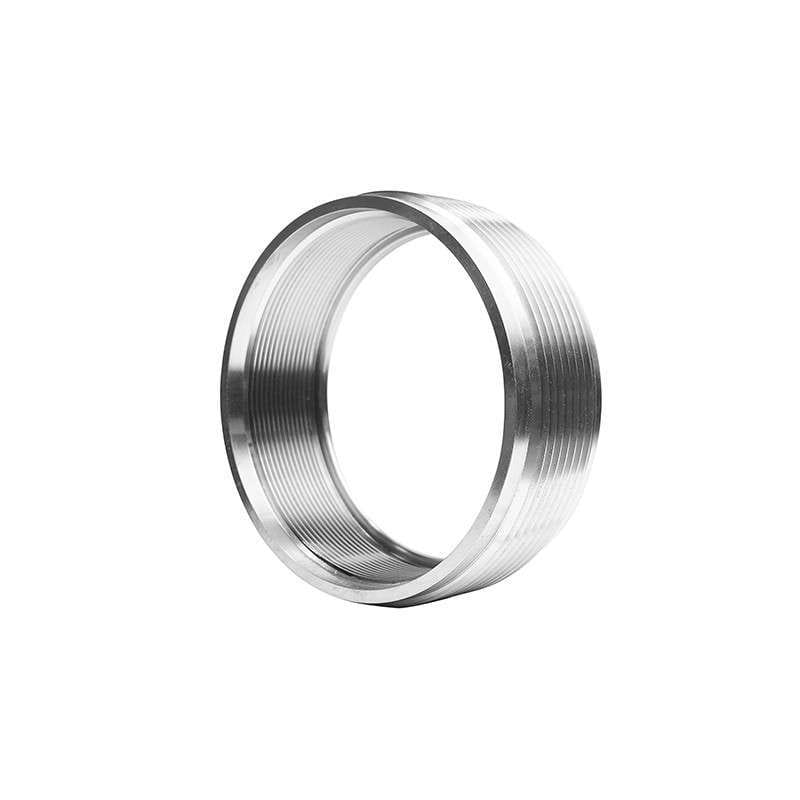

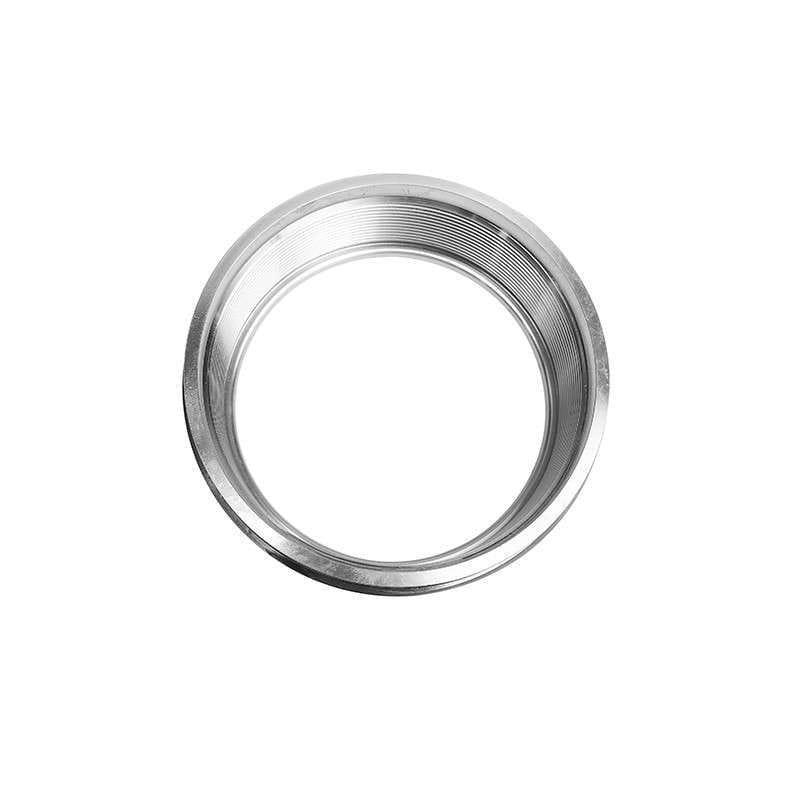

What is a Cone Crusher Head Nut?
A cone crusher head nut (also known as a mantle locking nut) é um serviço pesado, engineered fastener positioned at the top of the main shaft assembly. Its primary critical function is to firmly lock the manganese mantle wear liner to the main shaft. By securely anchoring the mantle, the head nut absorbs and transfers extreme crushing forces—often exceeding 2,000 kN—preventing the liner from shifting, loosening, or detaching during high-tonnage aggregate and mining operations.
Equipment Compatibility & OEM Cross-Reference
Our aftermarket replacement locking nuts are precision-engineered to be direct-fit upgrades for major global crusher brands, significantly lowering your Total Cost of Ownership (TCO) while ensuring zero compatibility issues.
| Supported Brands | Applicable Crusher Series | Common OEM Part Numbers |
| Sandvik | Triturador de cone estacionário Sandvik: Série CH: CH420, CH430, CH440, CH660, CH870, CH880, CH890, CH895 Série CS: CS420, CS430, CS440, CS660 Série H: H2800, H3800, H4800, H6800, H8800 Série S: S3800, S4800, S6800Sandvik Mobile Cone Crusher: UD221, QH332, UH320E, UH311, UH316, QH441, UH440i, UH440E, UH412, UH312, Reino Unido373, UH373, UH640E, QS332, US316, US373, US440i, US440E, US640E | 442.7912, 442.7105, 452.0936, 442.8791, 442.9270 (Matches standard OEM specifications for respective models) |
Core Engineering & Technical Advantages
Because the head nut operates in the most brutal environment inside the crushing chamber, standard fasteners will quickly fail. Our premium head nuts are manufactured to withstand continuous shock loads:
- Impact-Resistant Forgings: Manufactured from top-tier forged alloy steel (such as 42CrMo4) with advanced surface hardening to resist stripping and deformation.
- Self-Tightening Geometry: Precision-cut with left-hand threads. Because the crushing head gyrates clockwise, the left-hand thread profile naturally counteracts rotational friction, ensuring the fastener self-tightens under heavy mineral loads rather than backing off.
- Dynamic Balance: CNC-machined for perfect concentricity, eliminating parasitic vibrations that could damage your main shaft or eccentric assembly.
- Versatile Tooling Interface: Designed for safe, efficient installation and removal using standard OEM-approved strike wrenches or modern hydraulic torque tools.
Maintenance Guidelines: When to Replace Your Head Nut
Ignoring the wear on main shaft fasteners can lead to catastrophic liner detachment. We recommend inspecting the head nut during every scheduled mantle replacement:
| Inspection Focus | Warning Signs (Replace Immediately) | Best Practice Solution |
| Thread Profile Wear | Thread clearance exceeds 0.5 milímetros during checking. | Pull the worn nut and replace it to prevent in-operation stripping. |
| Drive Slots / Outer Profile | Slots appear warped, flared, or deformed from heavy wrenching. | Swap the part to ensure secure tightening for the next liner cycle. |
| Microscopic Metal Fatigue | Hairline cracks detected during Magnetic Particle Inspection (MPI). | Discard the damaged nut. Never use a cutting torch or open flame to heat a stubborn nut, as it destroys the steel’s heat treatment. |
