Description
What is a Cone Crusher Countershaft Bushing?

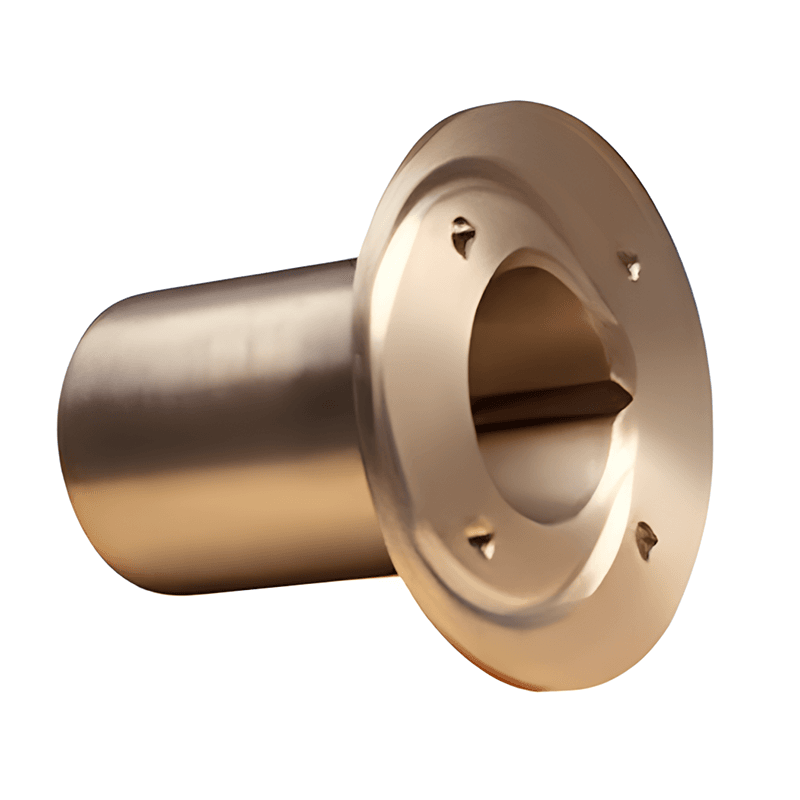

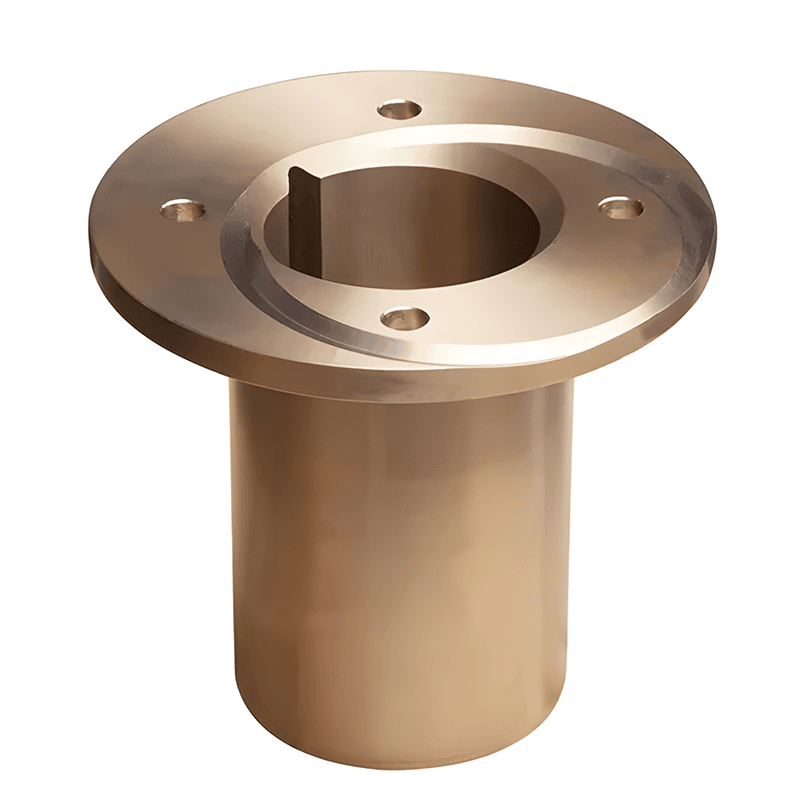

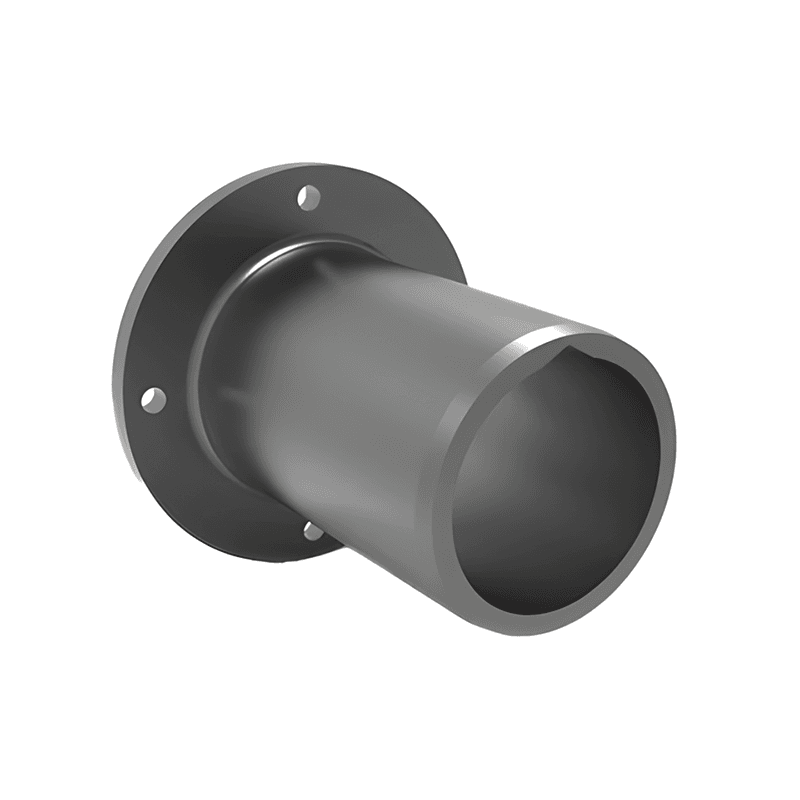

A Countershaft Bushing is a high-grade, precision-machined bronze sleeve bearing installed securely within the countershaft box housing. Its primary critical function is to support the horizontal drive shaft (countershaft) and provide a flawless, low-friction rotational interface. By absorbing heavy axial and radial loads during severe choke-feeding aggregate surges, a premium Countershaft Bushing prevents destructive metal-to-metal contact. This ensures smooth, continuous torque transmission from the electric motor to the eccentric assembly while actively protecting the main structural housing from vibration damage.
Equipment Compatibility & OEM Cross-Reference
Our aftermarket replacement Countershaft Bushing components are precision-engineered to be direct-fit upgrades for Metso crushers, significantly lowering your Total Cost of Ownership (TCO) while ensuring zero compatibility issues and maximum transmission efficiency.
| Supported Brands | Applicable Crusher Series | Common OEM Part Numbers |
| Raízes | Nordberg HP Series: HP100, HP200, HP300, HP400, HP500, HP800, HP2, HP4, HP6 | 7015604504, 1022061401, 1022063300, 1022062210, 1022065500, 1022066795, N15606251, N15605001, N98000024 (Matches standard OEM specifications) |
Core Engineering & Technical Advantages
Because the countershaft operates continuously under immense rotational friction and torque, standard cast bushings can suffer from thermal expansion and premature wear. Our premium Countershaft Bushing replacements are proudly manufactured in China to deliver unmatched heavy-duty durability:
Premium Leaded Bronze Alloy: Cast from specialized high-lead bronze formulations to deliver exceptional anti-friction properties, providing a crucial safety margin against seizure during temporary lubrication starvation.
Centrifugal Casting Technology: Manufactured using advanced centrifugal casting to ensure a highly dense, uniform micro-structure, completely eliminating internal porosity and maximizing load-bearing capacity.
Precision CNC Machining: Machined to exact OEM dimensional tolerances for a perfect interference fit inside the countershaft box, eliminating physical play and parasitic vibration.
Optimized Oil Grooves: Engineered with highly precise internal lubrication channels to guarantee continuous, even distribution of cooling oil across the entire bearing surface.
Maintenance Guidelines: When to Replace Your Countershaft Bushing
Operating a crusher with a worn sleeve bearing will misalign the countershaft, leading to catastrophic pinion gear damage and severe mechanical vibration. We recommend thoroughly inspecting the Countershaft Bushing during routine drive train teardowns:
| Inspection Focus | Warning Signs (Replace Immediately) | Best Practice Solution |
| Internal Clearance Wear | Excessive physical play or increased clearance detected between the countershaft and the inner bushing bore. | Replace the Countershaft Bushing to restore proper shaft alignment and prevent destructive gear meshing angles. |
| Surface Scoring & Galling | Deep scratches, flaking, or melted bronze smearing observed on the inner bearing surface. | Swap the ruined bushing immediately. Inspect the lubrication system for blocked oil filters or contaminated fluid. |
| Heat Generation | Unexplained extreme heat radiating from the countershaft box housing during standard crushing operations. | Indicates severe friction due to a failing protective oil film. Replace the bushing to prevent total shaft seizure. |
