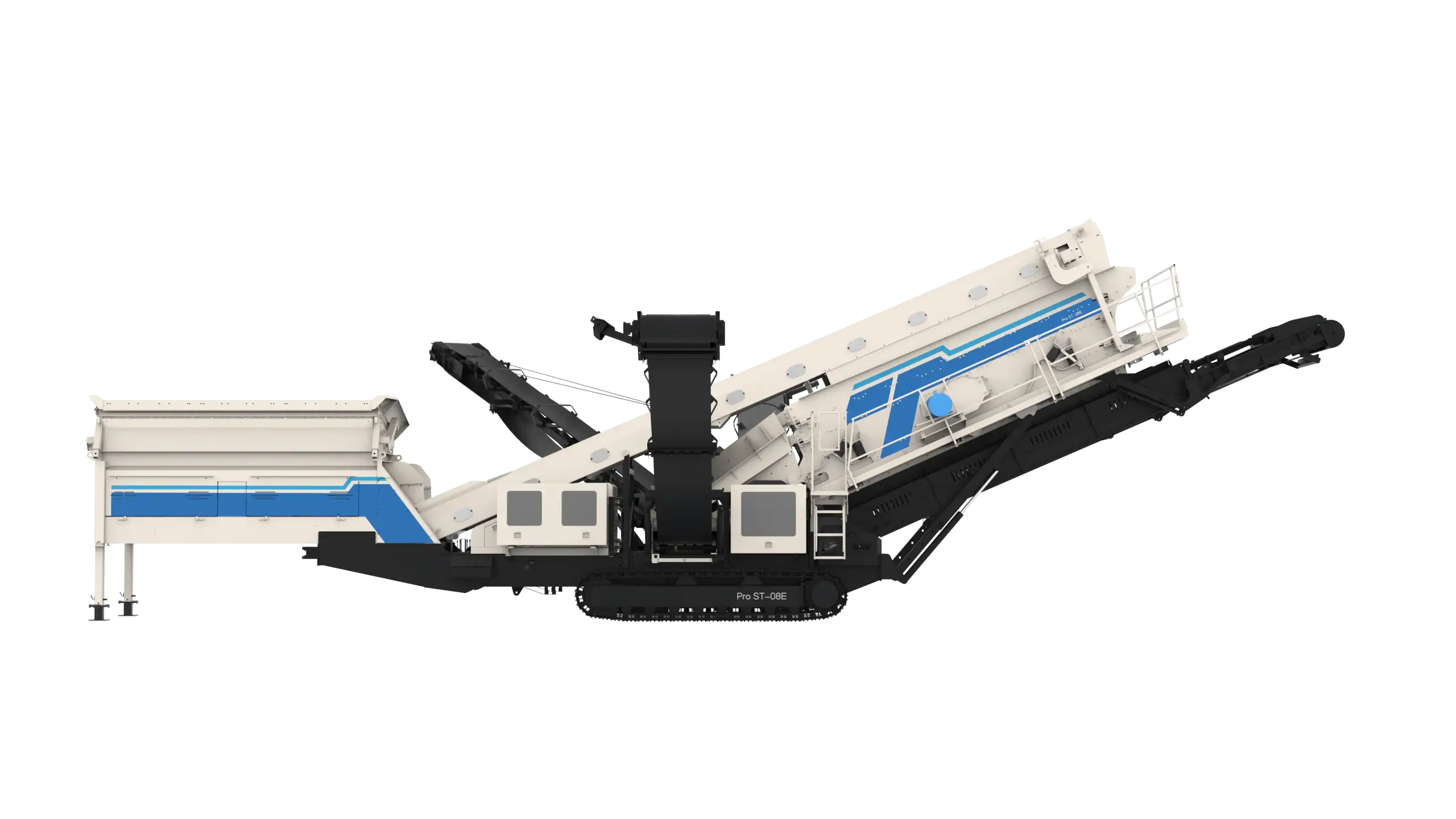

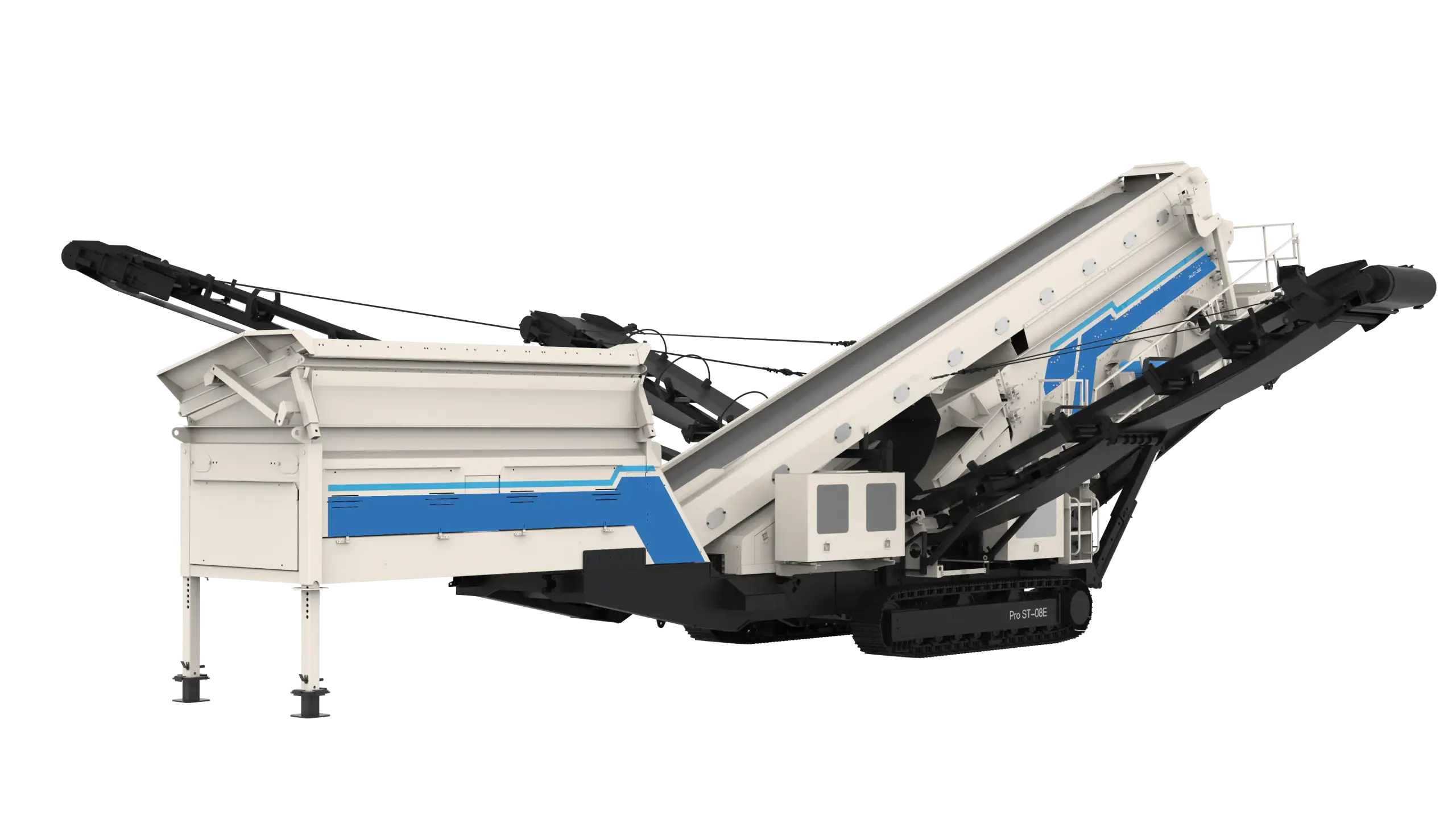

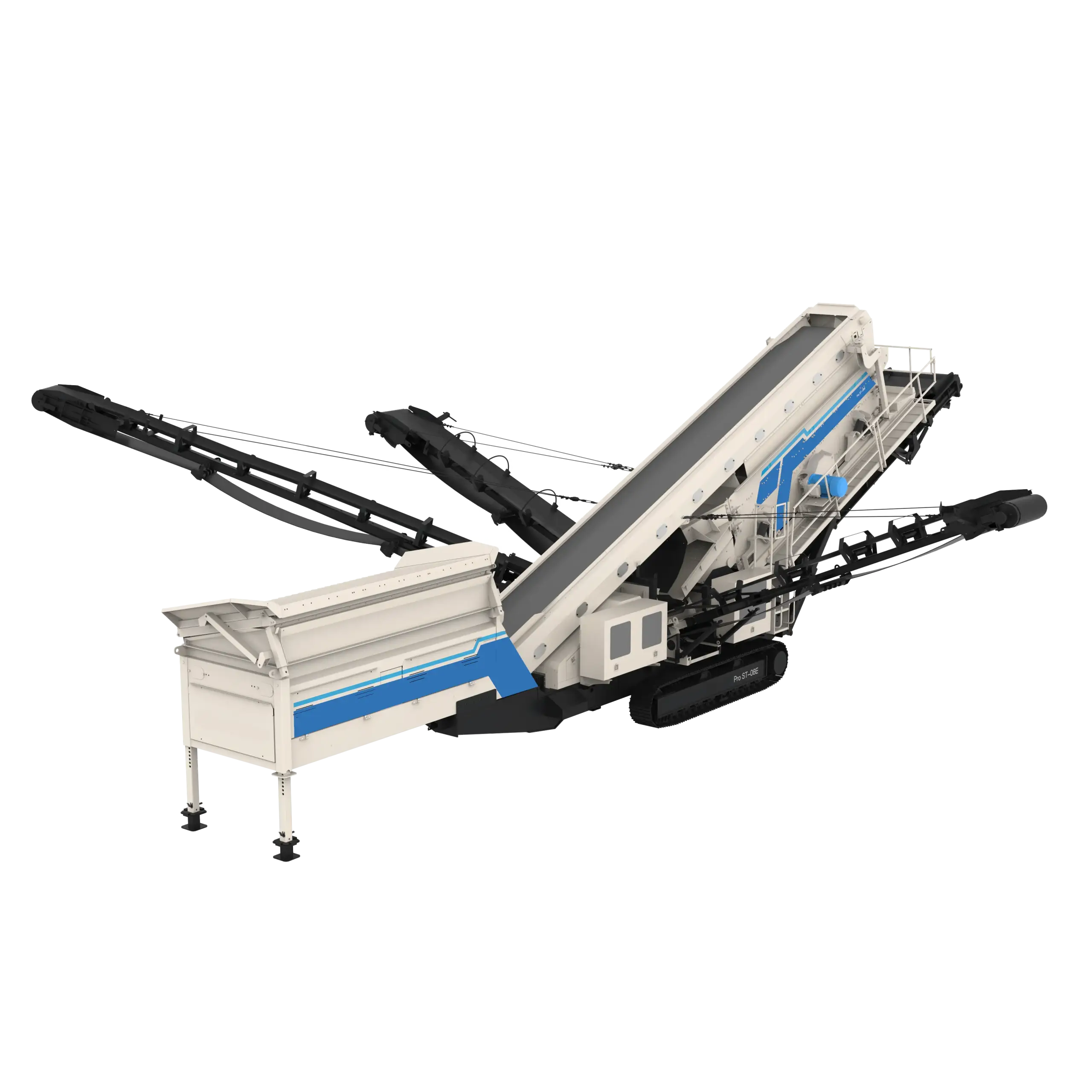

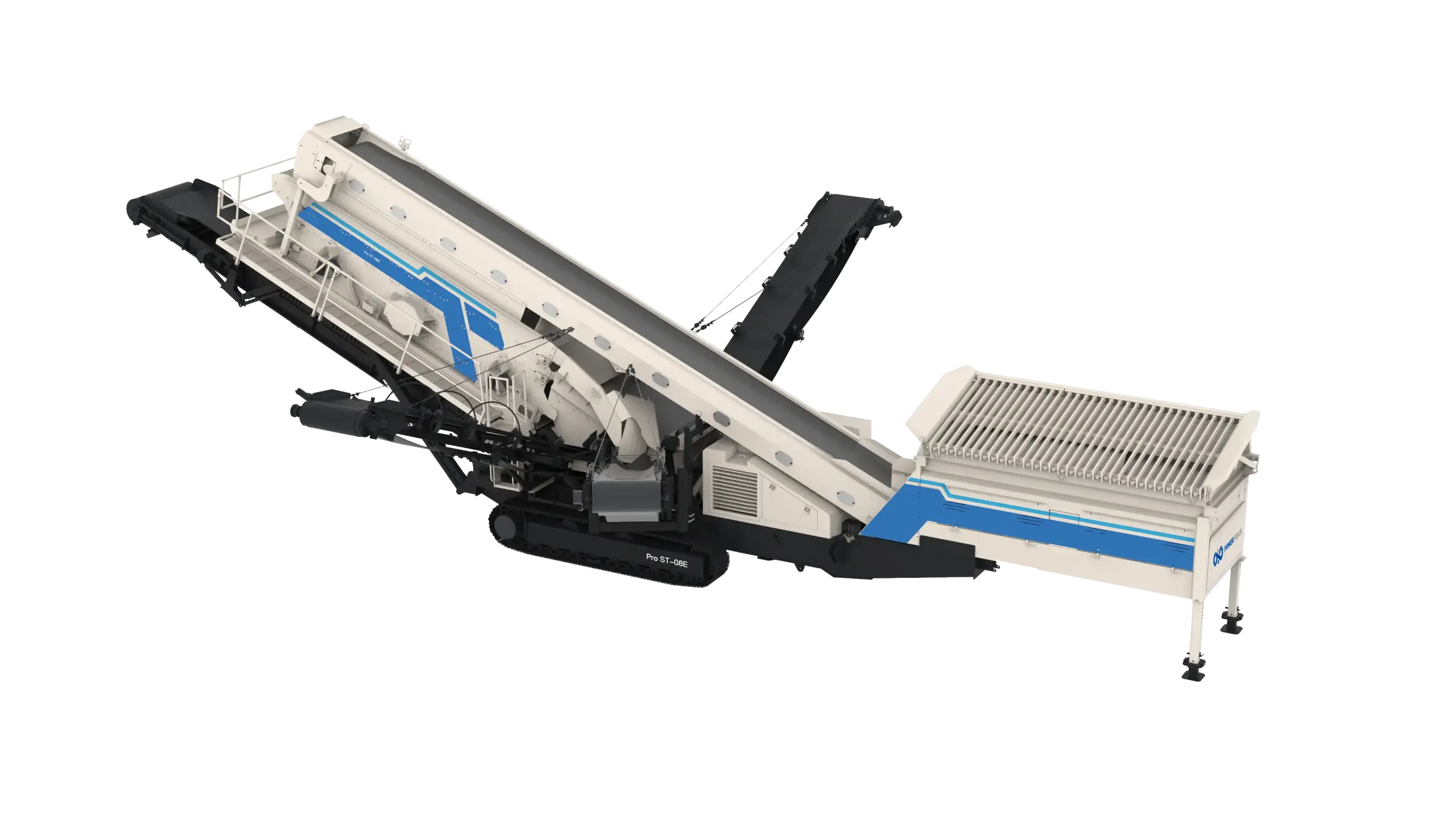

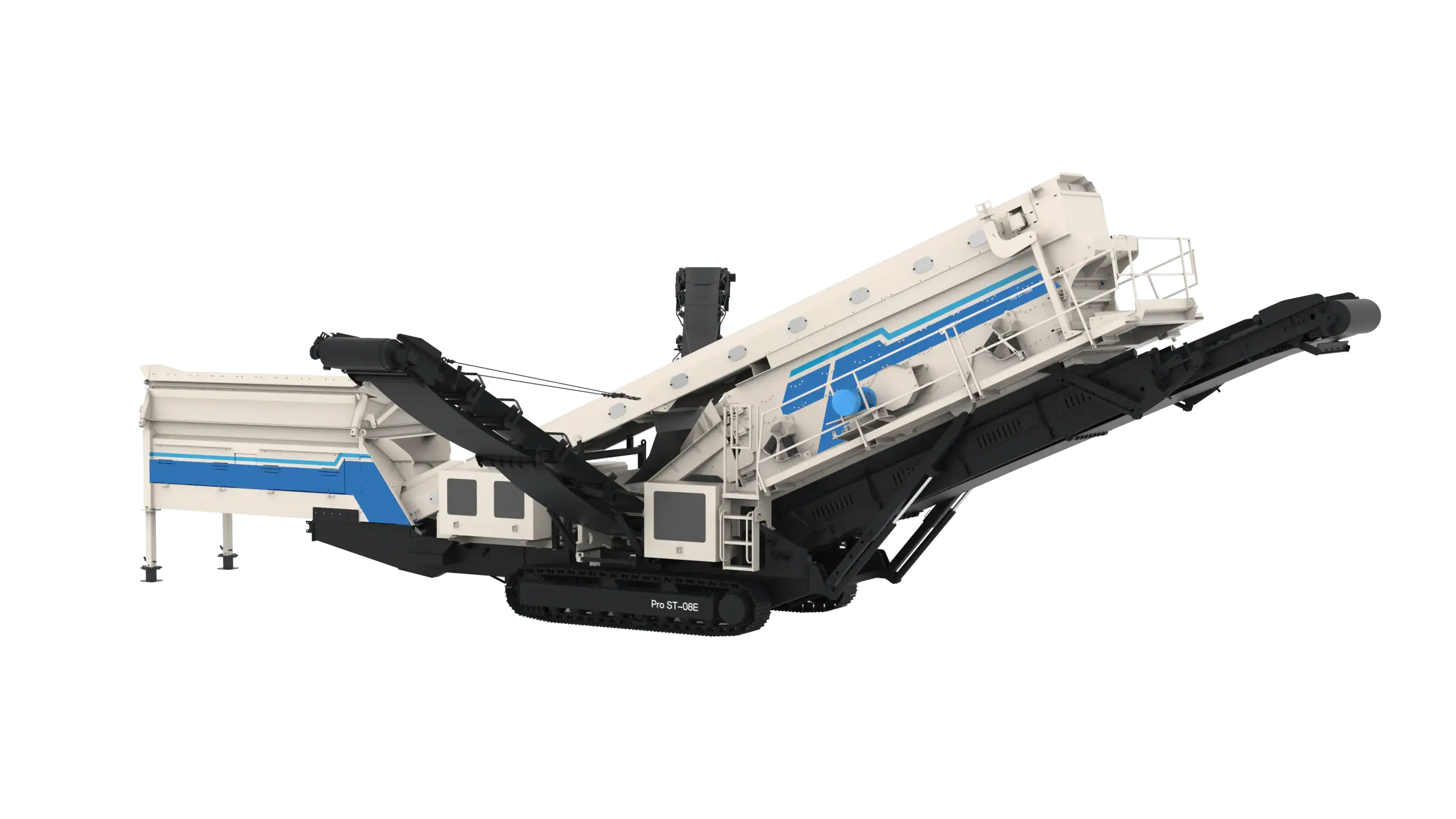

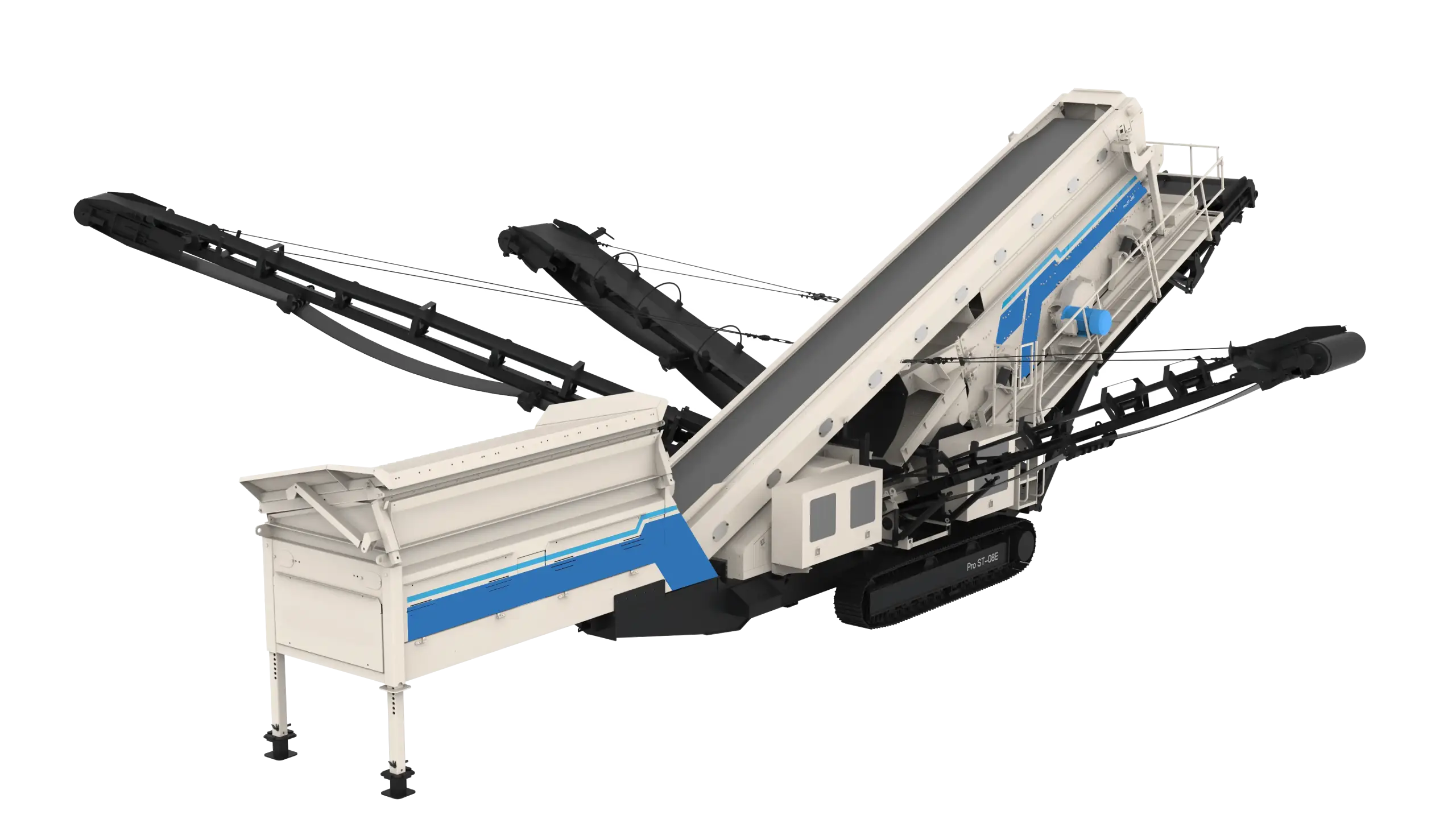

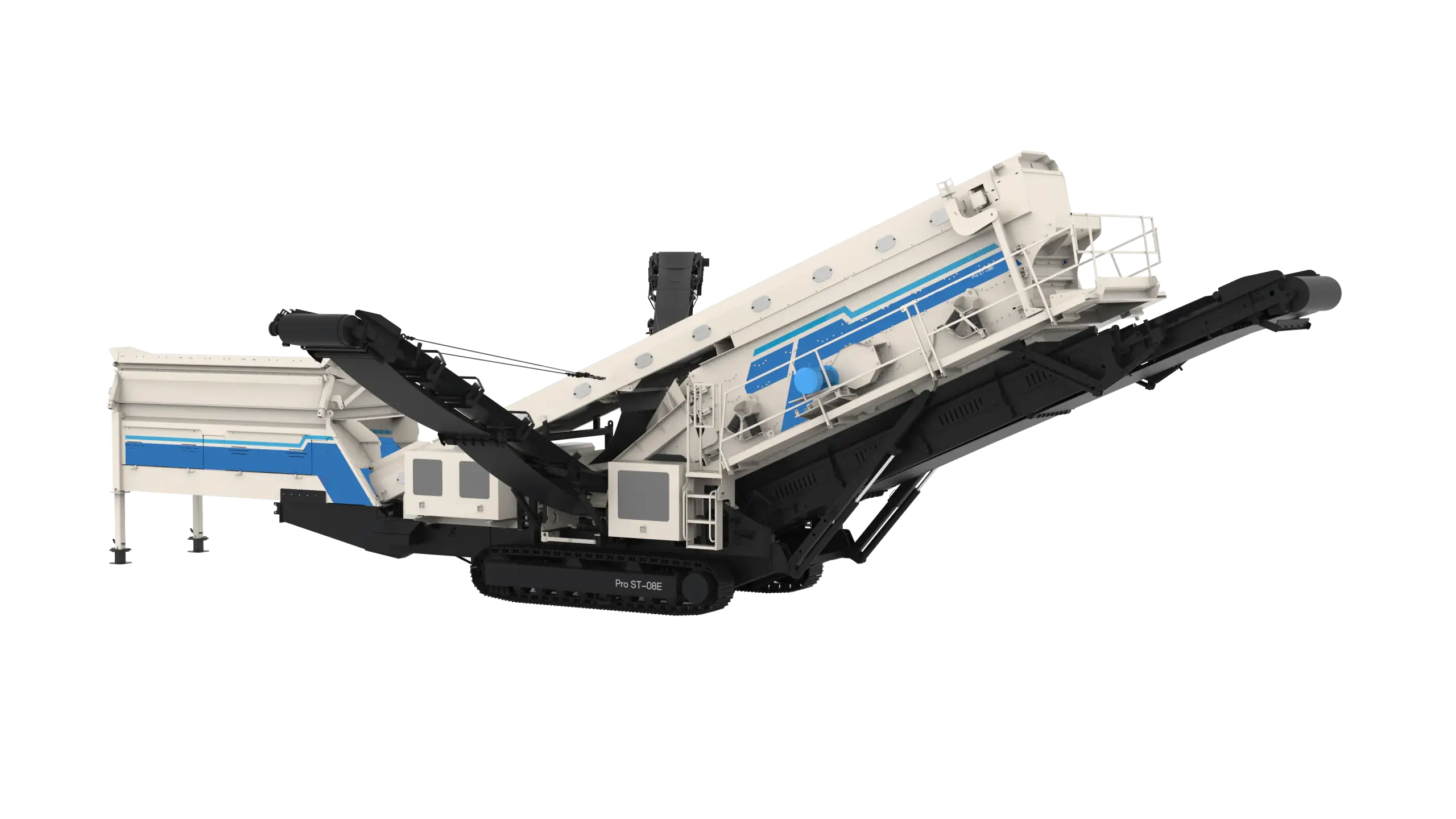

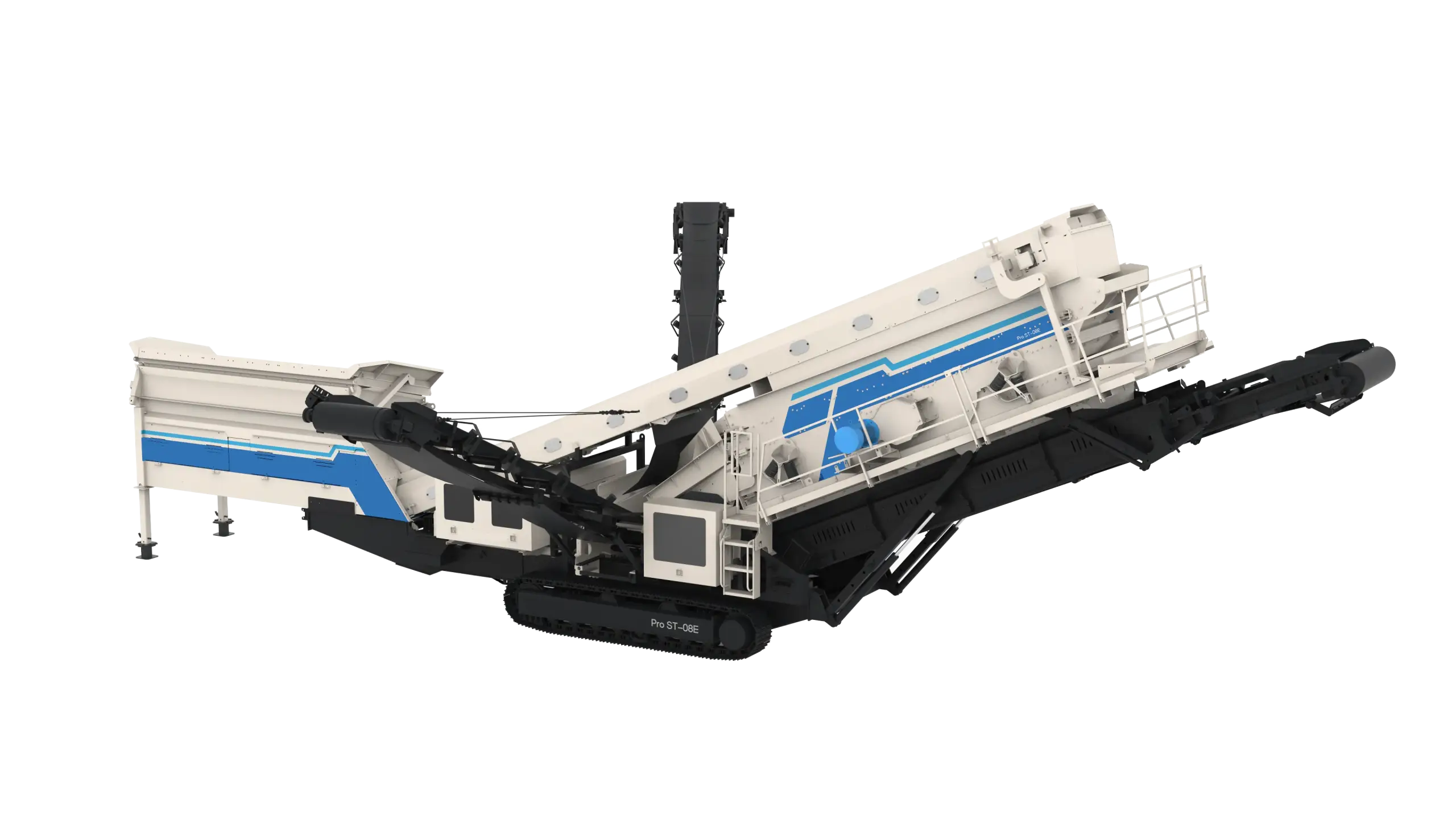

SW Pro ST08E Mobile Screener

Unique Advantages

Maximum Yield: Produce up to four high-quality aggregates at once using our advanced curved-mesh, three-deck screen.
Elite Quality: Built with premium-grade components to guarantee world-class operational performance.
Enhanced Flexibility: The integrated tipping grid allows the feeder to handle more challenging materials and varied site needs.
Smart Throughput: Automatically adjust to changing site conditions with a high-precision variable frequency feeder.
Sustainable Drive: Save on operational costs and protect the environment with a low-maintenance, plug-in electric system.

Power: 60 kW | Capacity: 150-500 t/h | Weight: 32 t

Category: Mobile Screener

Description

Description

Introduce of SW Pro ST08E Mobile Screener

The SW Pro ST08E Mobile Screener boasts a versatile design that simplifies the screening process. To ensure maximum efficiency and precise product sizing, operators can choose from an extensive range of screen media tailored to specific material properties. For streamlined logistics, all conveyors feature hydraulic folding mechanisms, enabling rapid transport between sites. Whether integrated with other mobile crushing units or functioning as a standalone system, the ST08E excels at processing crushed rock, sand, gravel, and diverse screening applications.

Main Components of SW Pro ST08E Mobile Screener

DESIGNED FOR SCREENING CRUSHED ROCK, AS WELL AS SAND AND GRAVEL, ETC

SS series vibrating screen >>>
Process up to four different types of materials with standard three-deck screen. Large screening area of 8.4 m2.
Flexible adjustment of screening angle ensures excellent screening capability for different applications.
Electric driven screening unit saves operational costs significantly.

Top deck side conveyor >>>
This conveyor functions in two ways: as an open circuit to produce a final fraction directly, or as a close circuit configuration that returns top-deck oversize material to the previous crusher.

Lifting conveyor >>>
The conveyor utilizes a spreader plate to distribute an even material flow across the screen. Operators can hydraulically raise the discharge section to replace screen meshes or perform routine maintenance.

Product conveyor >>>
Extra wide belt and large discharge height.
The head can be folded for easy transportation.

Bottom deck side conveyor >>>
Foldable for easy transportation.

Feed hopper >>>
The tipping grid can remove large materials before screening. Variable frequency feeding device is interlocked with the previous crusher to ensure even and continuous feeding.

Power unit >>>
Power the tracks and the hydraulic cylinders for fold-unfold operation.
Connected with external power supply, the electric driven screening process saves operational costs signigicantly.

Service platform >>>
Safer and more convenient daily maintenance.

Tracks >>>
Tracks make ST-08E easy to move in all the sites.

Technical Specifications

General information >>>
Capacity	150 – 500 t/h	165 – 551 St/h
Power	60 kW	80 hp
Transportation dimensions	18 000 x 3 100 x 3 650 mm	59′ x 10’2″ x 12′
L x W x H	18 000 x 3 100 x 3 650 mm	59′ x 10’2″ x 12′
Working dimensions	18 750 x 15 900 x 6 200 mm	61’6″ x 52’2″ x 20’4″
L x W x H	18 750 x 15 900 x 6 200 mm	61’6″ x 52’2″ x 20’4″
Weight	32 000 kg	70 547 lb
Vibrating screen >>>
Maximum recommended feed size	150 mm	6″
Size	5 480 x 1 530 mm	18’x 5′
Screening area	8.4 m²	10 yd²
Decks	3	3
Stroke	8 – 10 mm	0.2″ – 0.3″
Power	15 kW	20 hp
Feeder >>>
Type	Belt feeder with tipping grid （optional)
Hopper Volume	7.5 m³	9.8 yd³
Loading height (w. / w.o. tipping grid)	2 500 mm / 3 400 mm	8’2″ / 11’2″
Loading width	4 650 mm	15’3″
Lifting conveyor >>>
Length	11 200 mm	36’9″
Width	1 050 mm	41″
Top deck side conveyor >>>
Length	10 000 mm	32’10”
Width	650 mm	26″
Discharge height*	4 760 / 5 300 mm	15’9″ / 17’5″
*Adjustable discharge height
Middle / bottom deck side conveyor >>>
Length	7 600 mm	24’11”
Width	800 mm	32″
Discharge height	3 850 mm	12’10”
Product conveyor >>>
Length	7 900 mm	25’11”
Width	1 200 mm	3’11”
Discharge height	4 050 mm	13’5″
Power unit >>>
Engine	Cummins
Engine	110 kW	147 hp
Options >>>
Remote control	High pressure water pump (water spaying pipes and nozzles pre-equipped as standard)
Dust cover	Working light mast led

Applications >>>

The SW Pro ST08E Mobile Screener is extensively utilized for grading crushed aggregates across the mining, construction materials, and waste recycling industries. It performs seamlessly in tandem with mobile crushing plants or as a high-efficiency, independent screening solution.
