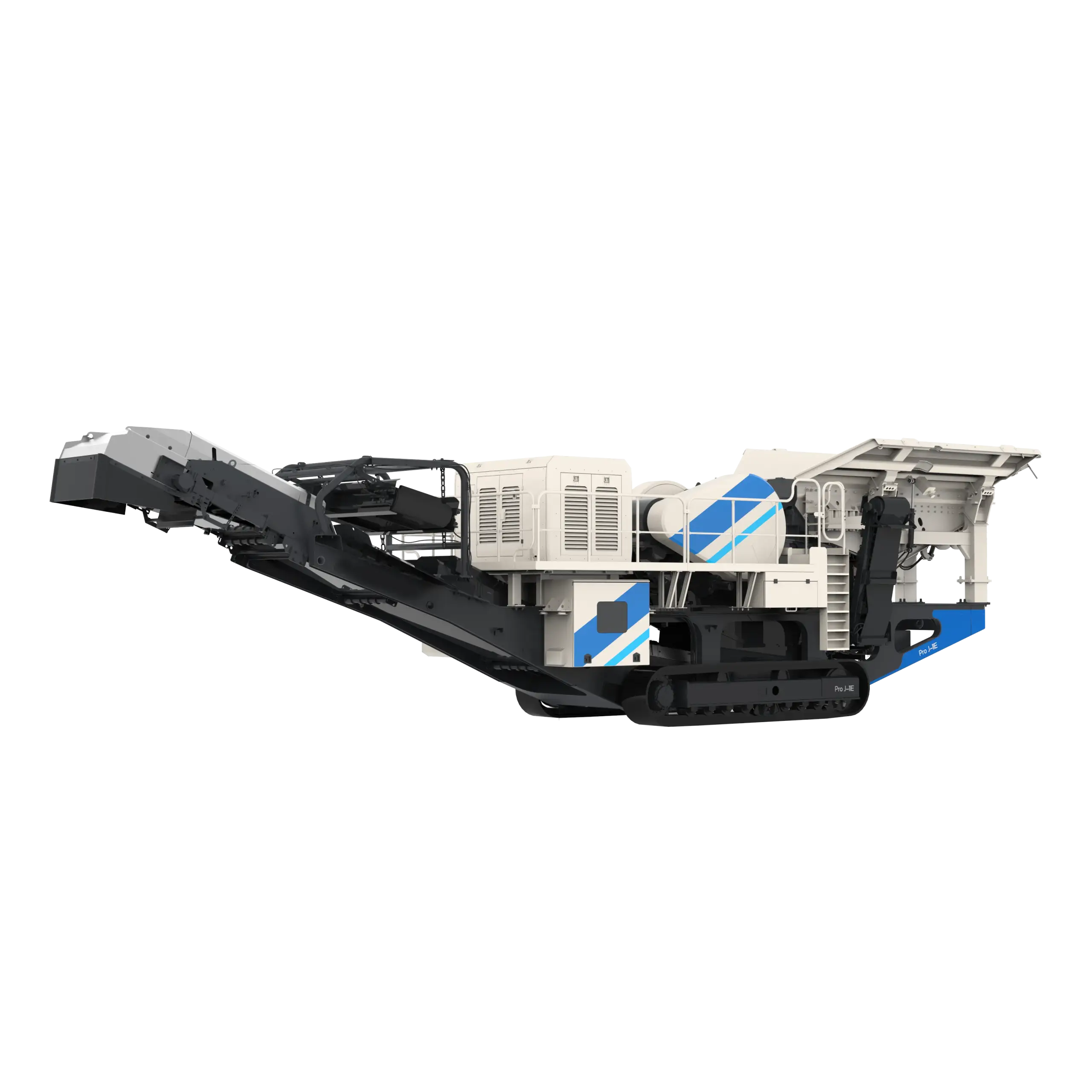

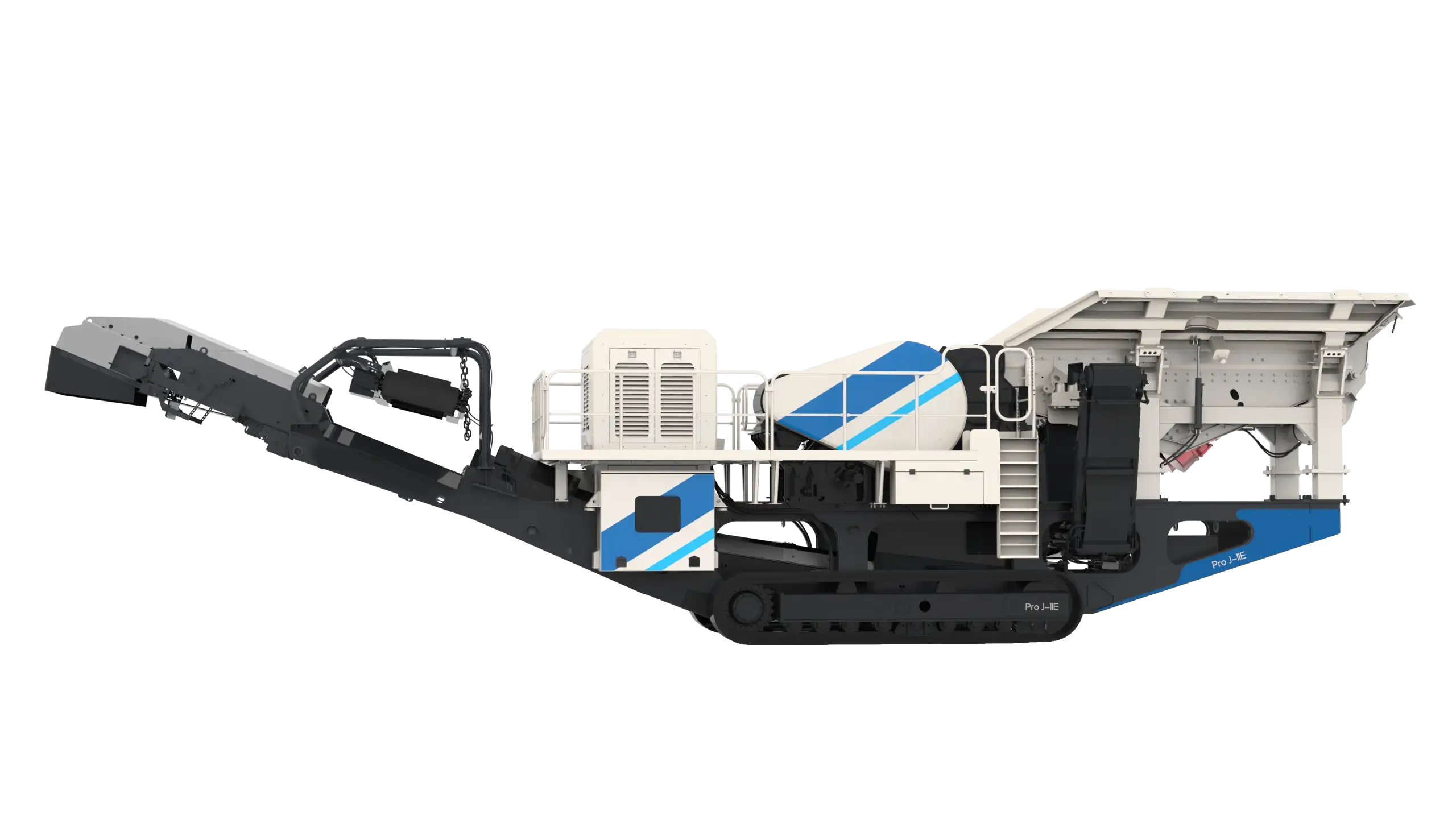

Introduce of SW Pro J11E Mobile Jaw Crusher
The SW Pro J11E Mobile Jaw Crusher is specifically engineered for aggregate production, natural stone processing, and the recycling of materials like demolished concrete. Functioning as a high-performance primary crusher, it efficiently reduces raw material to an optimal size for downstream processing. Inheriting Metso’s excellent genes, built for durability, it delivers consistent results in the harshest environments while ensuring a long service life with minimal maintenance requirements. Its hydraulic-driven tracks provide superior maneuverability on-site, and its compact footprint allows for seamless transport between projects. Furthermore, the integration of electric-driven crushing and conveyor systems drastically cuts operational expenses, significantly boosting profitability.
Main Components of SW Pro J11E Mobile Jaw Crusher
DESIGNED TO MEET THE PRIMARY CRUSHING OF THE HARDEST MATERIAL
SJC Series Jaw Crusher >>>
The electric driven crushing system handles hard materials at high efficiency.
Feed Hopper >>>
The hopper folds down to simplify transportation.
Optional expansion hopper volume up to 9 m3.
Locking mechanism to ensures safety.
Grizzly Feeder >>>
Efficient pre-scalping system and variable frequency feeder enable even and continous feeding.
To maintain stable production, the system regulates feeding volume based on the crusher’s current load.
Main conveyor >>>
Electric driven belt conveyor for material discharging or transferring to further processing.
Dust cover and water spray system are optional for dust reduction and environment friendly.
Side Conveyor >>>
The side conveyor discharges pre-scalped fine material.
The unit folds up to enable easy transportation.
Power Unit >>>
Power the tracks and the hydraulic cylinders for fold-unfold operation.
The electric-driven crushing process saves significant operational costs.
Tracks >>>
Tracks make J-11E easy to move in all the crushing sites.
Technical Specifications
| General information >>> | ||
|---|---|---|
| Capacity | 150 – 500 t/h | 165 – 551 St/h |
| Power | 138 kW | 185 hp |
| Transportation dimensions L x W x H | 15,450 x 3,150 x 3,600 mm | 50’7 x 10’4” x 11’8” |
| Working dimensions L x W x H | 15,400 x 5,900 x 3,900 mm | 50’6 x 19’4” x 12’8” |
| Weight | 42,000 kg | 92,595 lb |
| Maximum recommended feed size | 560 mm | 22” |
| Feed opening | 1,060 x 700 mm | 42″ x 28″ |
| Power | 110 kW | 148 hp |
| Feed hopper >>> | ||
| Width | 2,700 / 3,600 mm | 8’10” / 11’10” |
| Volume | 6/9 m3（optional） | 7.8 / 11.8 yd3 |
| Loading height | 3,900 / 4,300 mm | 12’8″ / 14’1″ |
| Loading width | 2,600 / 3,700 mm | 8’6” / 12’2″ |
| Grizzly feeder >>> | ||
| Length | 4,200 mm | 13’8″ |
| Width | 1,100 mm | 44″ |
| Drive type | Electric vibration motor | Electric vibration motor |
| Power | 2 x 4.5 kW | 2 x 6 hp |
| Length | 10,500 mm | 34’5” |
| Width | 1,000 mm | 39.4” |
| Discharge height | 2,900 mm | 9’6” |
| Main Conveyor >>> | ||
| Length | 10,500 mm | 34’5” |
| Width | 1,000 mm | 39.4” |
| Discharge height | 2,900 mm | 9’6” |
| Side Conveyor (option)>>> | ||
| Length | 5,200 mm | 17’1” |
| Width | 500 mm | 20″ |
| Discharge height | 1,800 mm | 5’11” |
| Power Unit >>> | ||
| Model | Cummins QSB3.9 | |
| Power | 110 kW | 148 hp |
| Options >>> | ||
| Magnetic separator | Hydraulic setting adjustment | |
| Feed hopper extensions | Side conveyor | |
| Working light mast LED | Dust cover | |
| High pressure water pump (water spaying pipes and nozzles pre-equipped as standard) | Wireless remote control | |
Applications >>>
This equipment serves the mining and construction industries extensively. It excels at the primary crushing of high-hardness natural stones—including granite, basalt, quartz, iron ore, limestone, and pebbles—as well as the processing of recycled materials.
Combine with >>>
I13DS SW Pro mobile impact crusher
C20ES SW Pro mobile cone crusher
ST08E SW Pro mobile screener
