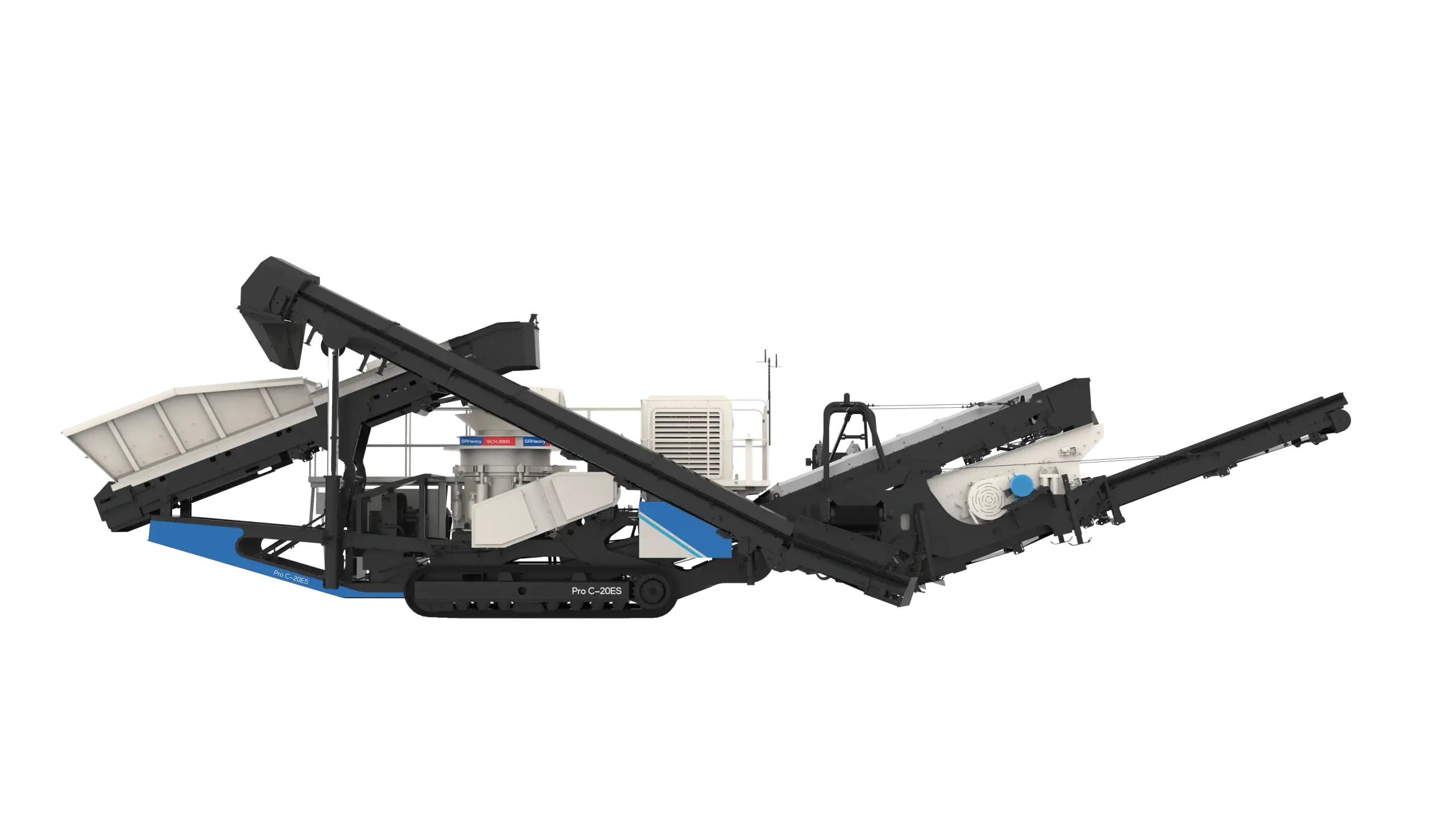

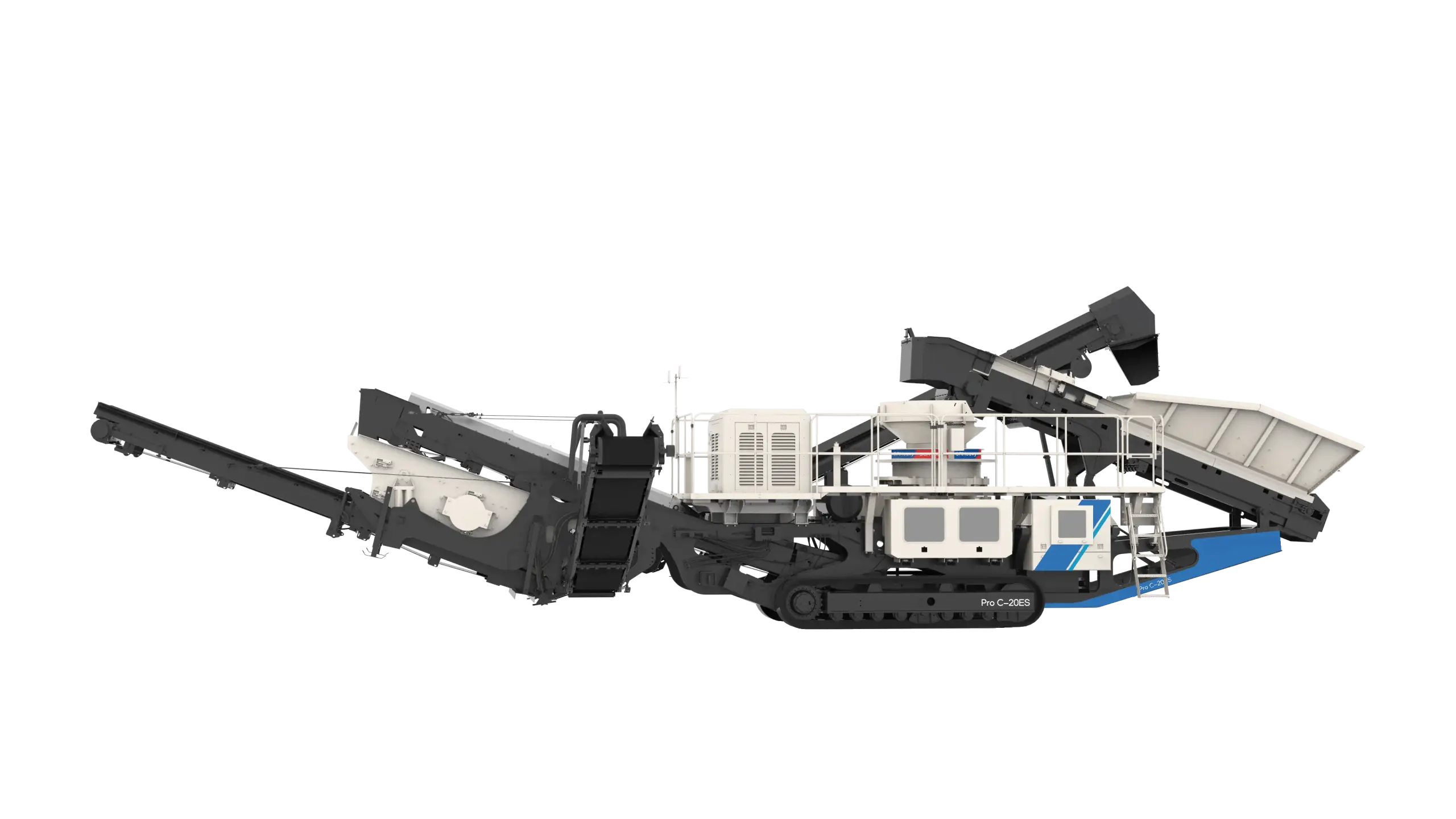

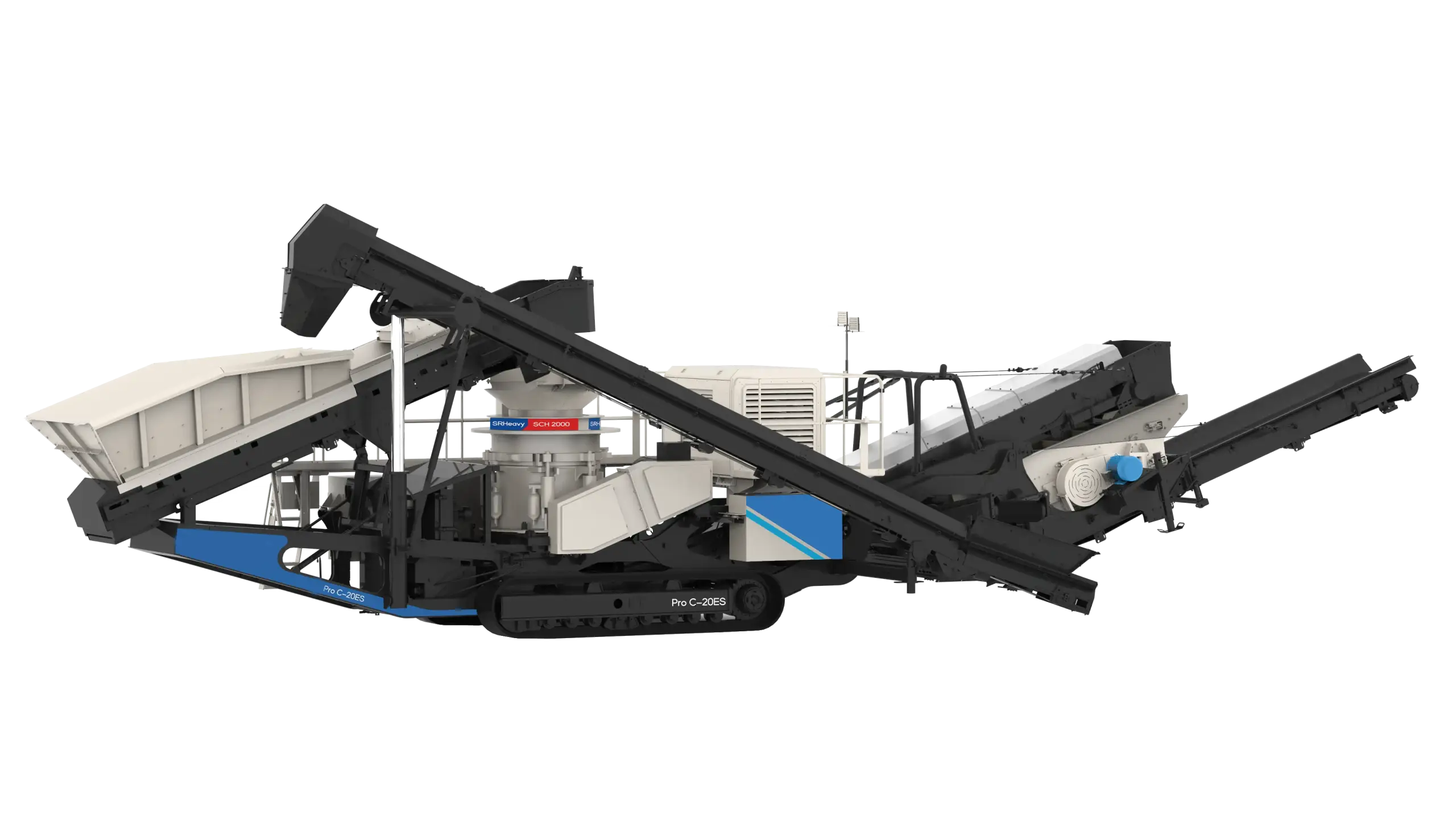

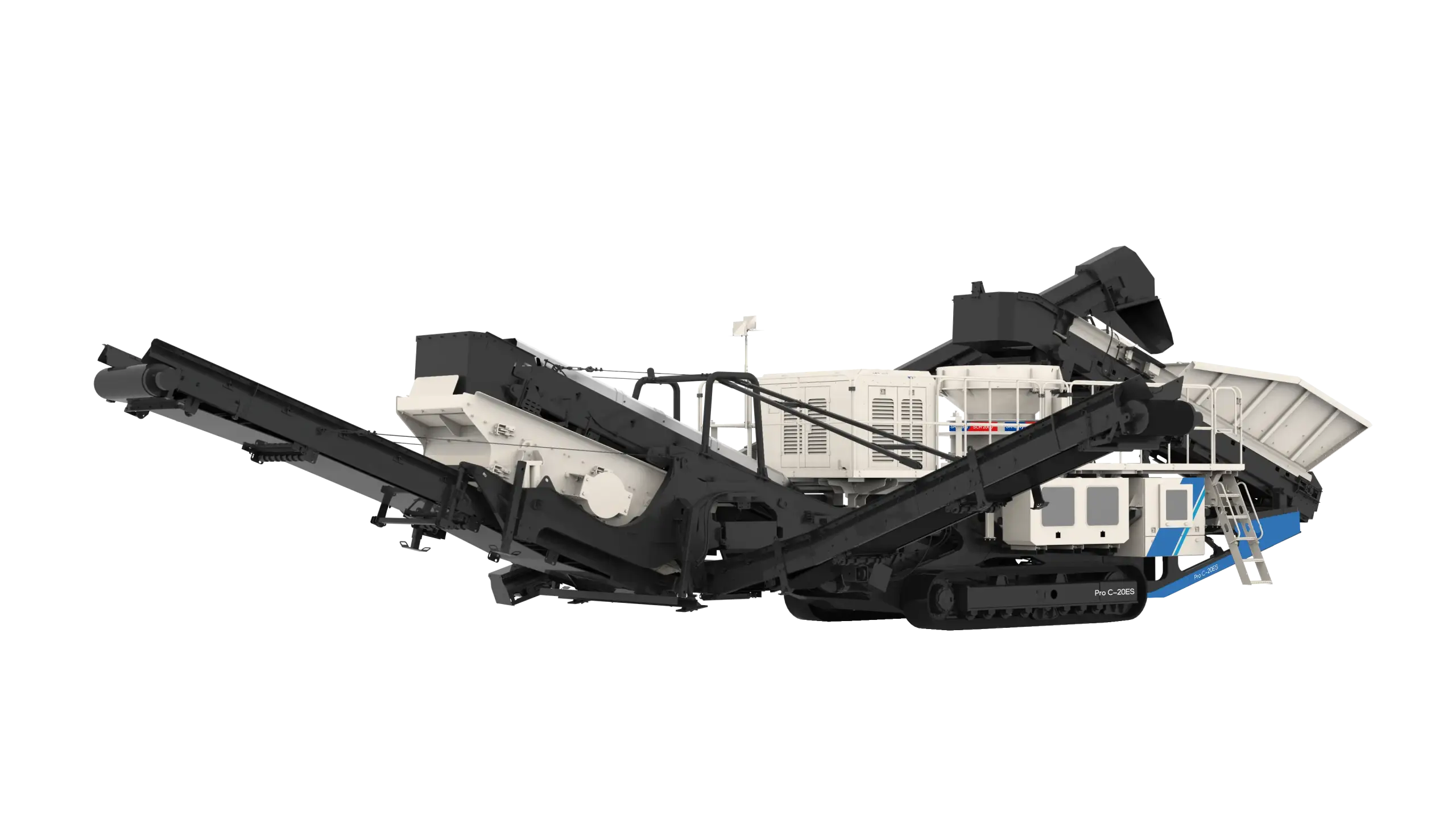

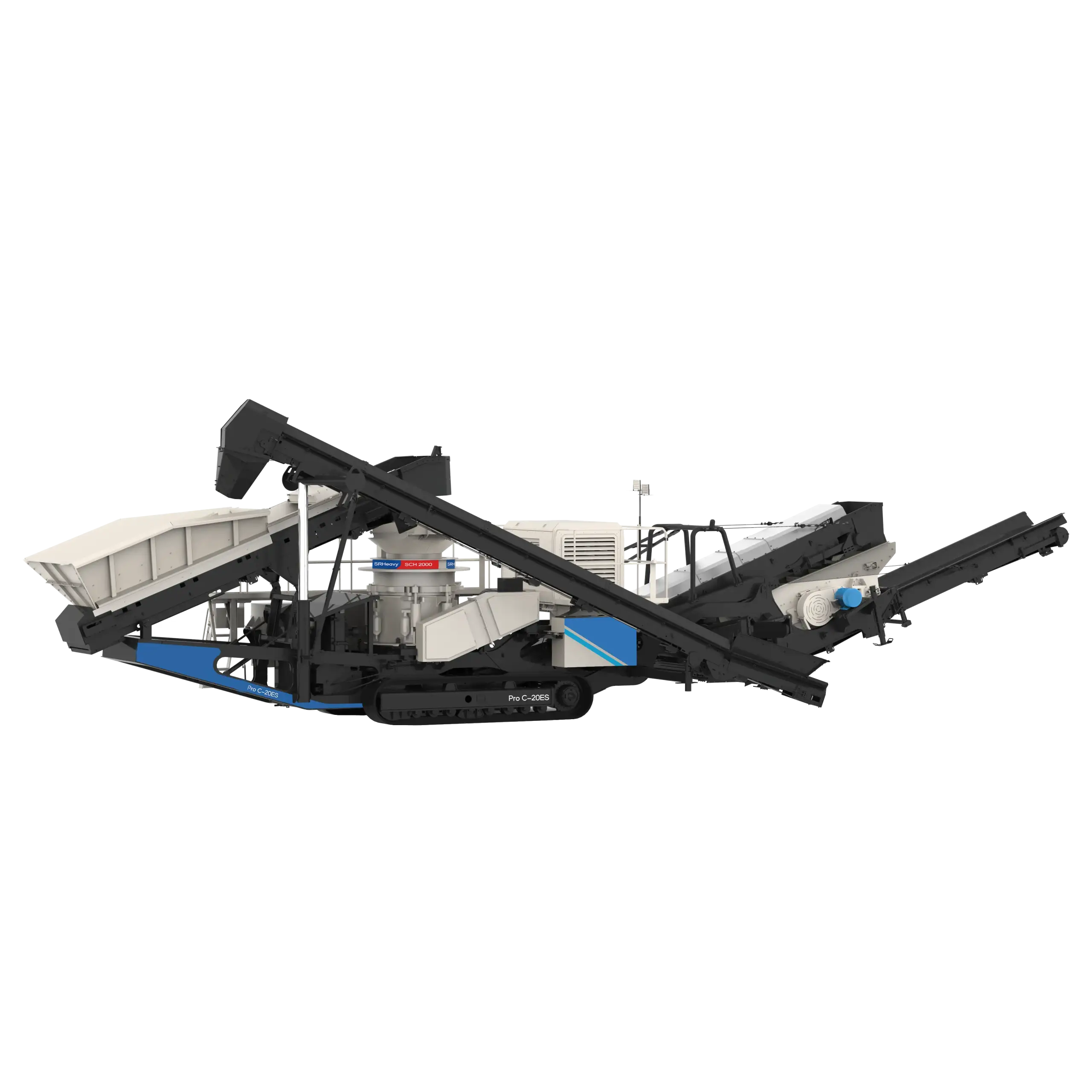

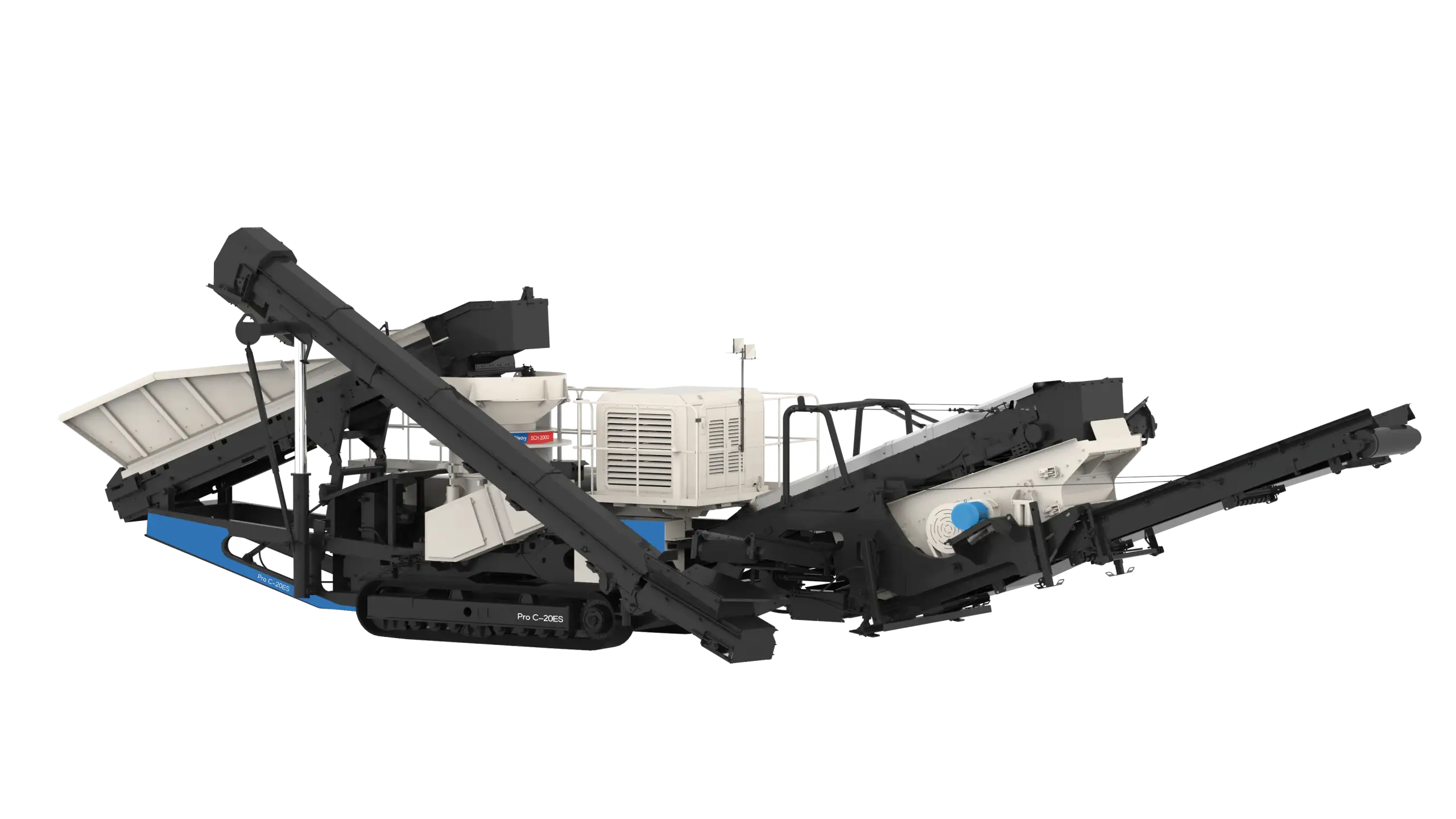

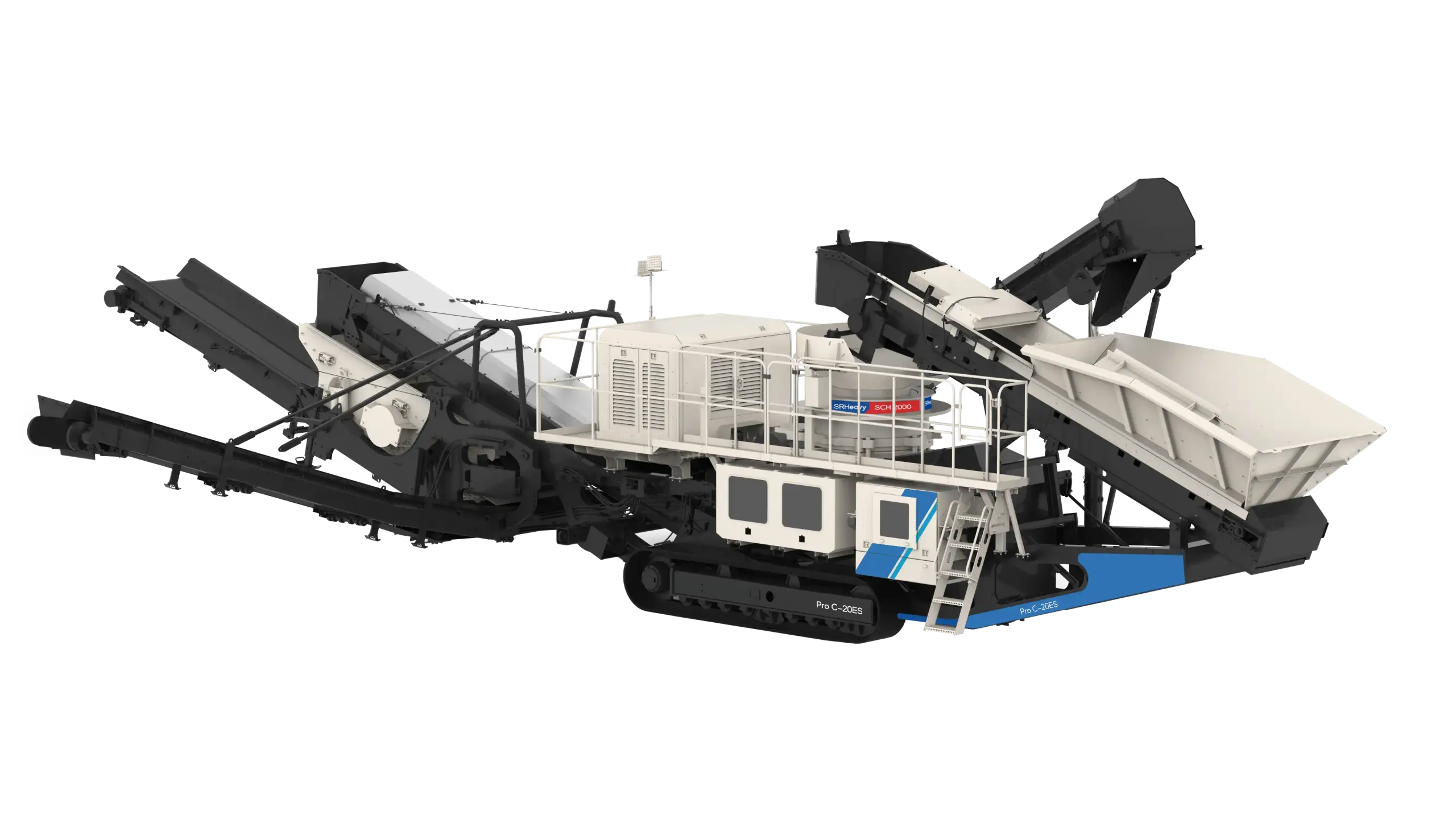

Introduce of SW Pro C20ES Mobile Cone Crusher
Inheriting Metso’s excellent genes, the SW Pro C20ES Mobile Cone Crusher excels in both secondary and tertiary crushing applications. Centered around the SCH2000 cone crusher, this unit delivers high-volume output, an impressive crushing ratio, and premium-quality aggregates. Its field-proven design guarantees machine reliability while simplifying routine maintenance. Furthermore, the electric-driven crushing system significantly lowers operational overhead. When paired with the LE SOLEIL jaw crushing unit, it provides an ideal solution for processing medium- to high-hardness natural stone into high-grade aggregate.
Main Components of SW Pro C20ES Mobile Cone Crusher
USED FOR SECONDARY AND TERTIARY CRUSHING ON MULTI-STAGE APPLICATIONS
Concasseur à cône >>>
Features large eccentric distance and crushing ratio, high moving cone speed, its excellent structural design not only ensures high production efficiency, but also produces finished products with perfect particle size and shape.
Belt Feeder >>>
The feeder conveyor and crusher are interlocked to ensure even and continuous feeding by controlling the feeding amount.
Feed hopper >>>
Replaceable wear-resistant sturdy steel plate and liner.
Main conveyor >>>
Dust cover and water spray system are optional for dust reduction. External water supply is available.
Vibrating screen >>>
The vibrating screen accurately screens the crushed materials through the vibrating screen.
Product conveyor >>>
Discharge the crushed material or transfer them to the further screening process.
Return conveyor >>>
The oversize material can be taken back to the crusher for re-crushing to improve the quality of finished product.
Oversize conveyor >>>
Transfer oversize material to the return conveyor.
Power unit >>>
Compact structure, high energy efficiency and stable power output.
Tracks >>>
Tracks make C-20ES easy to move in all the crushing sites.
Technical Specifications
| General information >>> | ||
|---|---|---|
| Capacity | 150 – 250 t/h | 165 – 276 St/h |
| Power* | 227 kW/255 kW | 304 hp / 342 hp |
| Transportation dimensions* L*W*H | C-20E: 17 000 x 3 450 x 3 700 mm | C-20E: 55’9” × 11’4” × 12’2″ |
| C-20ES: 17 150 x 3 450 x 3 700 mm | C-20ES: 56’3″ × 11’4″ × 12’2″ | |
| Working dimensions* L*W*H | C-20E: 16 000 x 4 000 x 4 600 mm | C-20E: 52’6″ x 13’1″ x 15’1″ |
| C-20ES: 20 000 x 12 400 x 5 600 mm | C-20ES: 65’7″ × 40’8″ × 18’4″ | |
| Weight* | 33 000 kg / 47 000 kg | 72 750 lbs / 103 617 lbs |
| *Including screening unit | ||
| Cone crusher >>> | ||
| Maximum recommended feed size | 185 mm | 7.3″ |
| Power | 132 kW / 160 kW (optional) | 177 hp / 214 hp (optional) |
| Belt feeder >>> | ||
| Width | 2 400 mm | 7’10” |
| Hopper volume | 5 m³ | 6.5 yd³ |
| Loading height | 2 800 mm | 9’2″ |
| Loading width | 2 400 mm | 7’10” |
| Main conveyor >>> | ||
| Length | 9 800 mm | 32’2″ |
| Width | 1 000 mm | 40″ |
| Discharge height | 3 250 mm | 10’8″ |
| Vibrating screen (optional) >>> | ||
| Decks | 2 | 2 |
| Size | 3 000 x 1 500 mm | 9’10” x 4’11” |
| Stroke | 7 – 12 mm | 0.3″ – 0.5″ |
| Product conveyor (optional) >>> | ||
| Length | 7 100 mm | 23’3″ |
| Width | 1 200 mm | 3’11” |
| Discharge height | 3 200 mm | 10’6″ |
| Mid-size product conveyor (optional) >>> | ||
| Length | 9 400 mm | 30’10” |
| Width | 650 mm | 26″ |
| Discharge height | 2 800 mm | 9’2″ |
| Return conveyor (optional) >>> | ||
| Length | 10 600 mm | 34’9″ |
| Width | 500 mm | 20″ |
| Discharge height | 3 800 mm | 12’6″ |
| Power unit >>> | ||
| Engine | Cummins | |
| 110 kW | 147 hp | |
| Options >>> | ||
| Interlocking cable | Dust cover | |
| Wireless remote control | Working light mast LED | |
| High pressure water pump (water spaying pipes | Screen unit module (including return, | |
| and nozzles pre-equipped as standard) | oversize,side and product conveyors) | |
Applications >>>
Extensively used in mining and aggregate production, this machine effectively processes hard natural stones and minerals. It is ideal for materials such as granite, basalt, quartz, iron ore, and copper ore.
