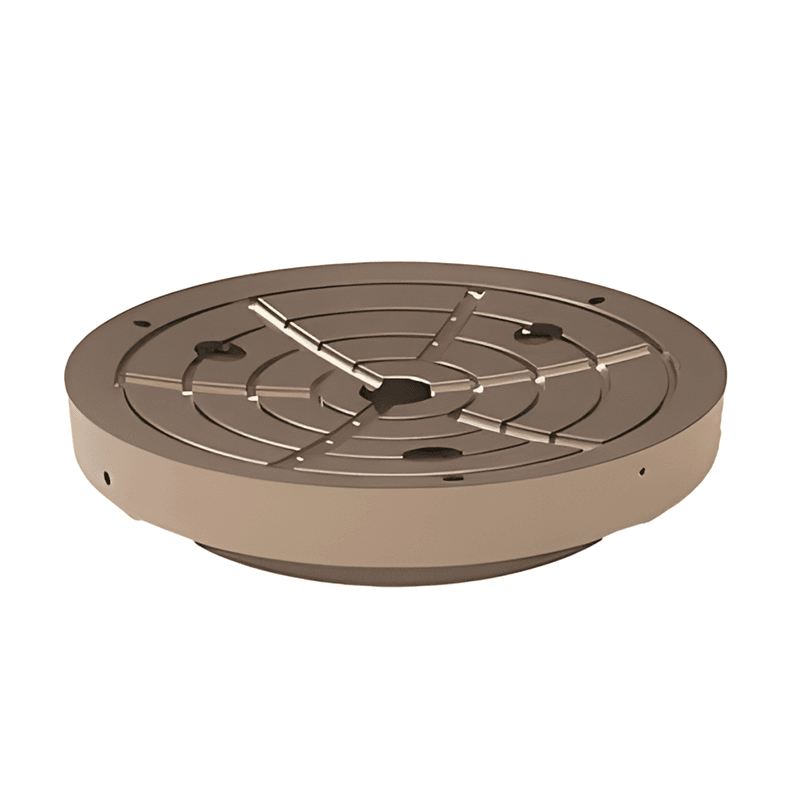

What is a Crusher Socket Liner?
A Crusher Socket Liner is a critical sacrificial wear component installed precisely within the main socket assembly of a cone crusher. Its primary function is to provide a smooth, low-friction spherical bearing surface that supports the entire weight and gyratory motion of the crushing head. By preventing direct metal-to-metal contact between the head ball and the main socket, une prime Crusher Socket Liner ensures optimal mechanical alignment, reduces operational friction, and protects your expensive structural chassis from catastrophic damage during high-tonnage aggregate reduction.
Compatibilité des équipements & Référence croisée OEM
Notre remplacement après-vente Crusher Socket Liner inserts are precision-engineered to be direct-fit upgrades for Metso crushers, réduisant considérablement votre coût total de possession (Coût total de possession) tout en garantissant zéro problème d'installation et une disponibilité maximale sur le terrain.
| Marques prises en charge | Série de concasseurs applicables | Numéros de pièces OEM courants |
| Racines | Série HP de Nordberg: HP100, HP200, HP300, HP400, HP500, HP800, HP4, HP6 | 1048721001, 7035800600, N35800601, 1048723201, 1048724025 (Correspond aux spécifications OEM standard) |
Ingénierie de base & Avantages techniques
Because the socket assembly bears the massive weight of the head and extreme multi-directional crushing forces, standard liners can suffer from rapid galling or deformation. Notre prime Crusher Socket Liner les remplacements sont fièrement fabriqués en Chine pour offrir une durabilité inégalée:
Premium Bronze & Alloy Formulations: Cast from specialized wear-resistant bronze alloys designed to provide exceptional self-lubricating properties and withstand extreme compressive stress.
Precise Spherical Geometry: CNC-machined to exact OEM tolerances, guaranteeing a perfect spherical interface with the head ball and ensuring smooth, efficient eccentric rotation.
Optimized Oil Grooves: Engineered with highly precise lubrication channels that facilitate continuous, even distribution of cooling oil, actively preventing friction-induced bearing seizure.
Contrôle de qualité strict: Every liner undergoes rigorous ultrasonic testing and dimensional inspection to eliminate internal casting defects and ensure maximum load-bearing reliability.
Directives d'entretien: When to Replace Your Crusher Socket Liner
Operating a cone crusher with a worn liner will misalign the crushing chamber, leading to poor particle shape and severe damage to the main shaft. Nous vous recommandons d'inspecter le Crusher Socket Liner during every major maintenance teardown:
| Objectif de l'inspection | Panneaux d'avertissement (Remplacer immédiatement) | Solution basée sur les meilleures pratiques |
| Spherical Surface Wear | The depth of the internal oil grooves or spherical surface measures below OEM minimum tolerances (e.g., ≤ 2.5 mm). | Remplacez le Crusher Socket Liner immediately to prevent destructive metal-to-metal friction with the socket housing. |
| Surface Galling or Smearing | Discoloration, melted bronze smearing, or deep scoring on the bearing surface. | Check the lubrication system for blockages. Swap the ruined liner and ensure adequate oil flow is restored before restarting. |
| Physical Deformation | Out-of-round deformation or cracks detected around the mounting dowel holes. | Pull the damaged liner. Always use a high-quality backing compound during installation to ensure full structural support and prevent cracking. |
