Description

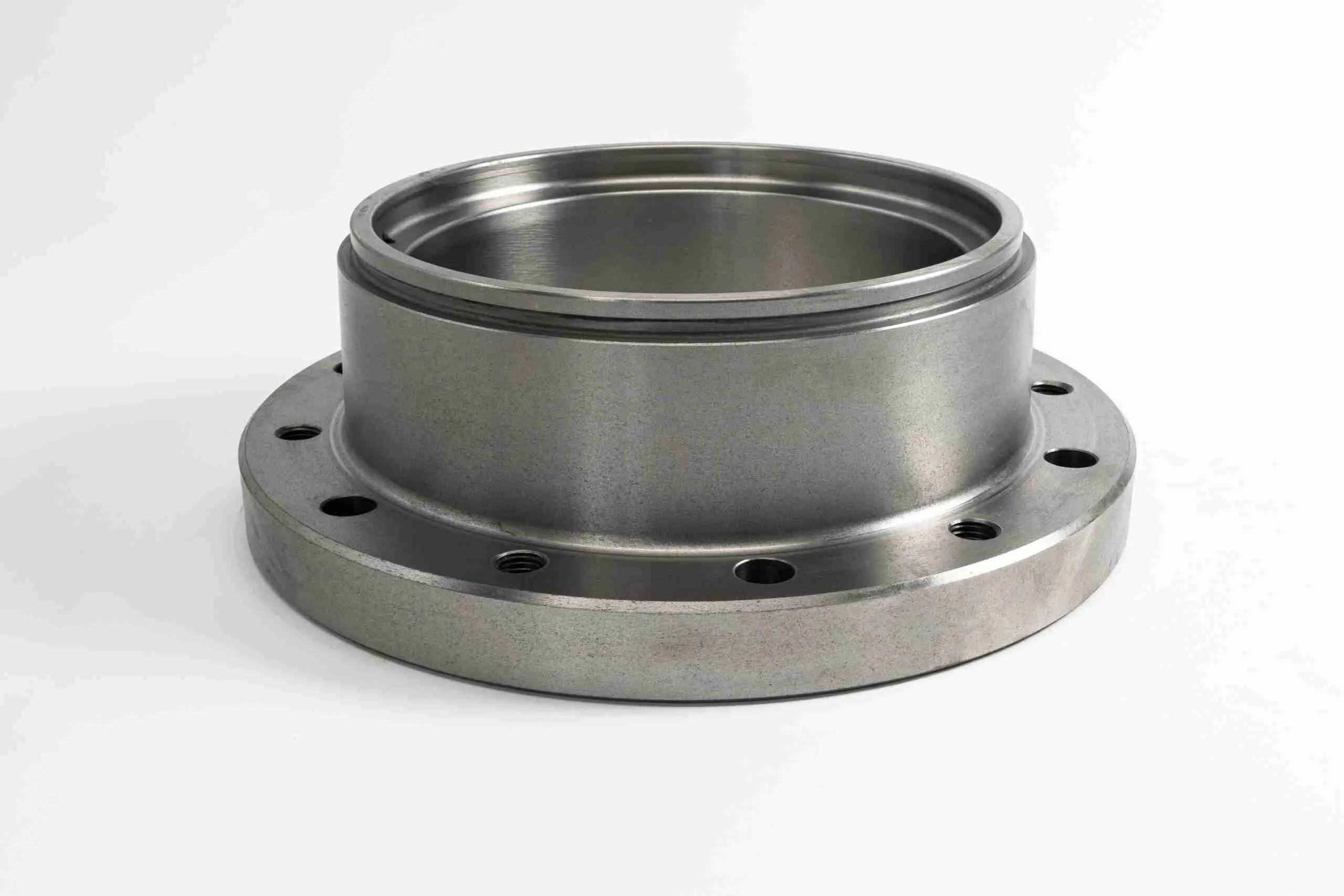

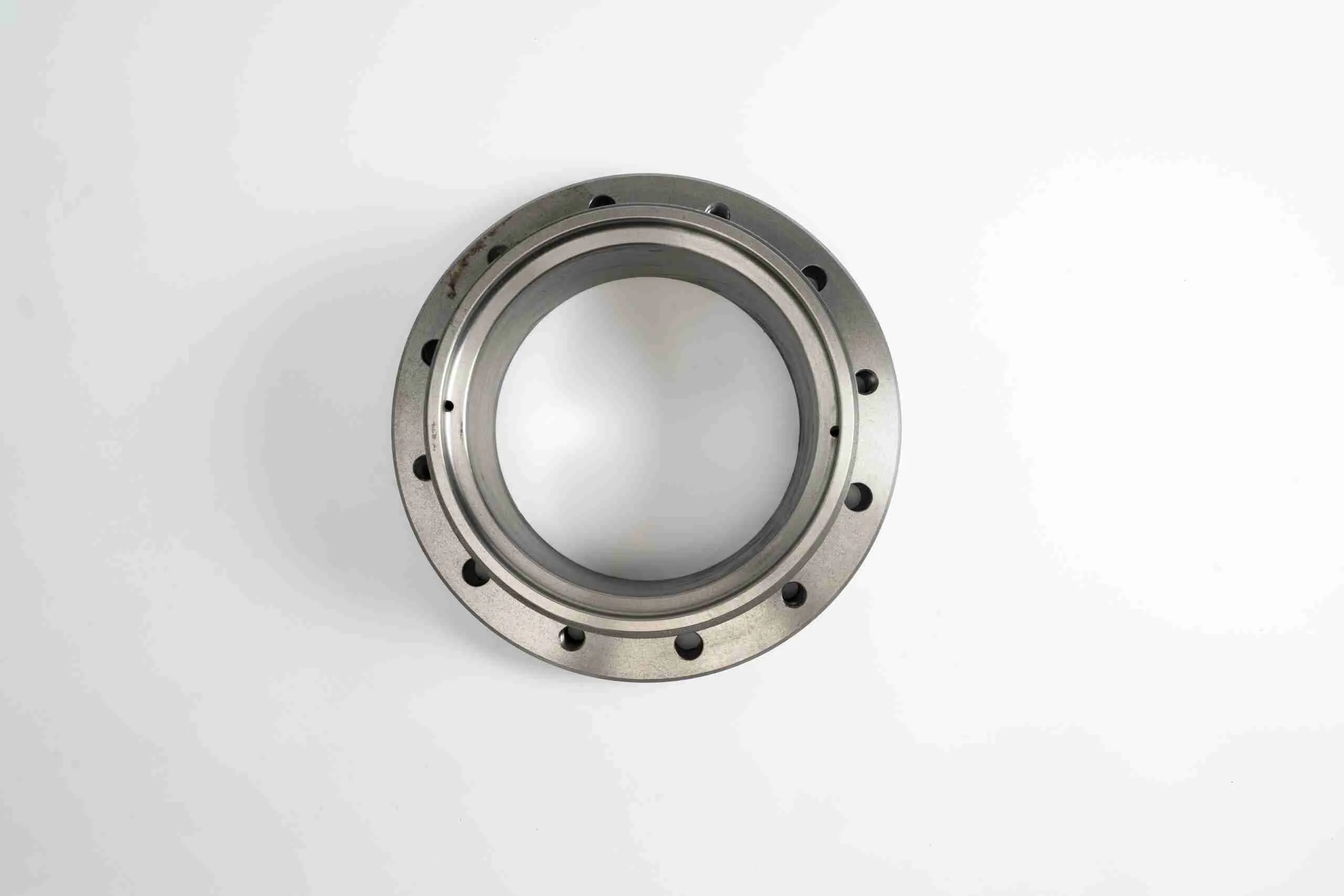

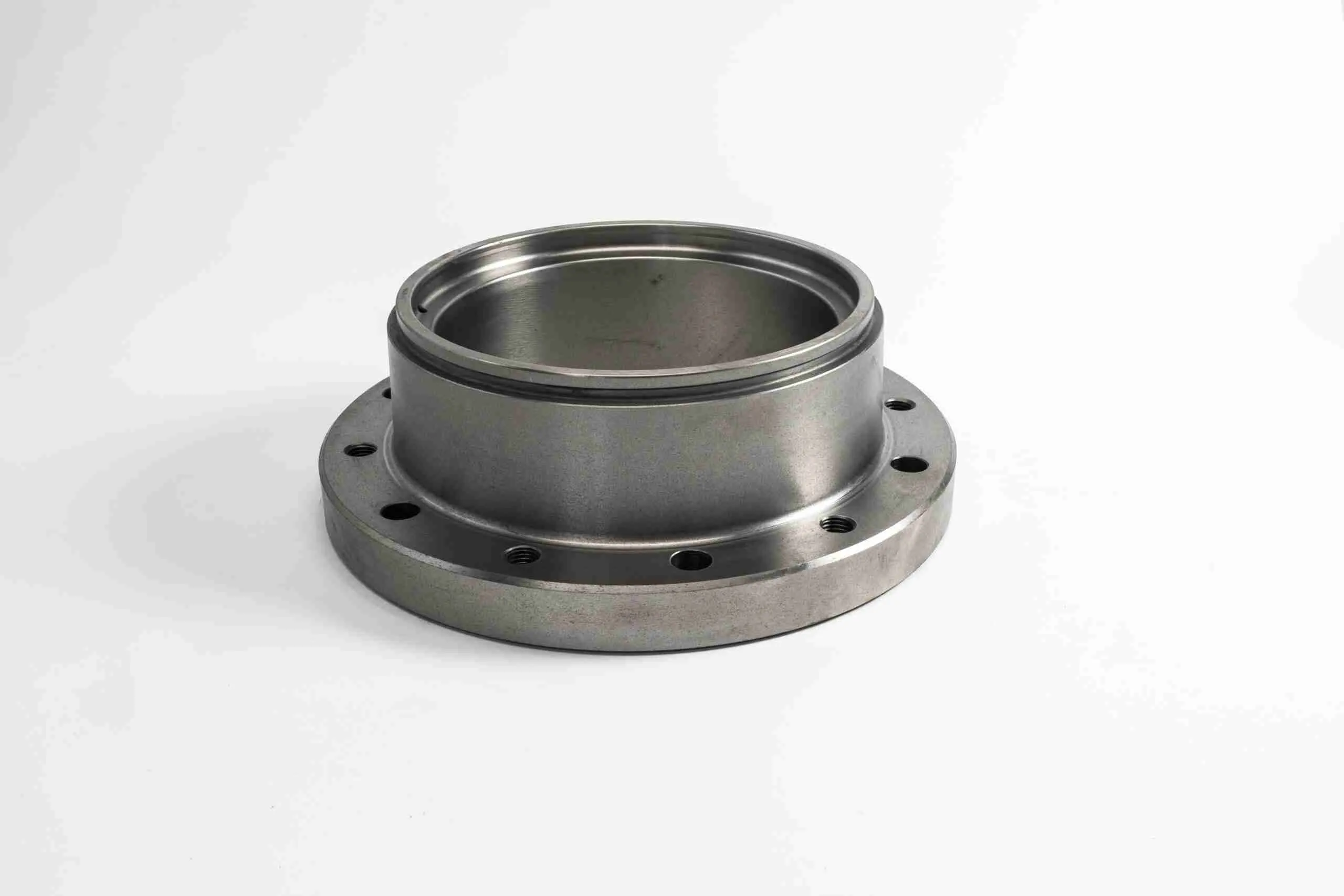

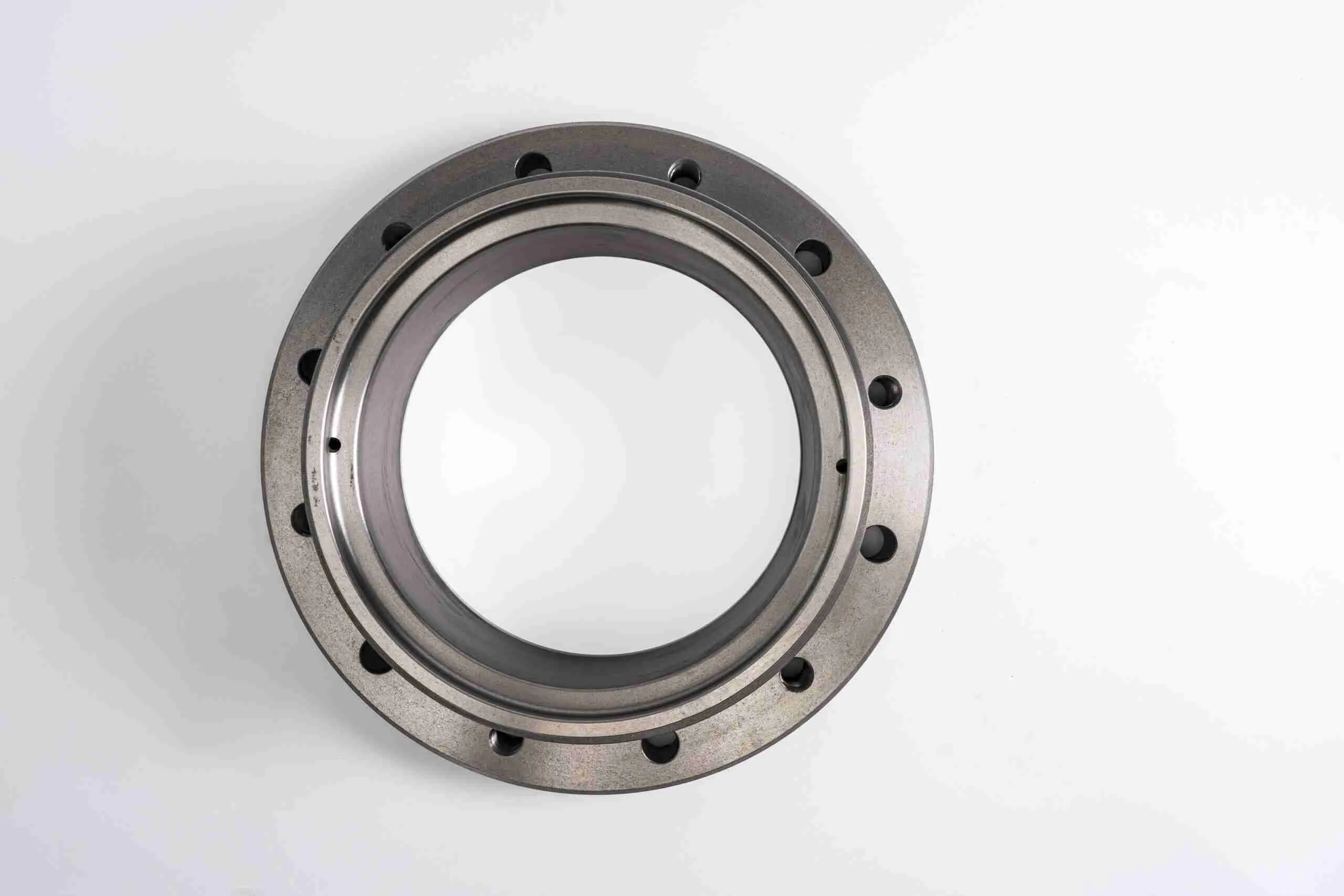

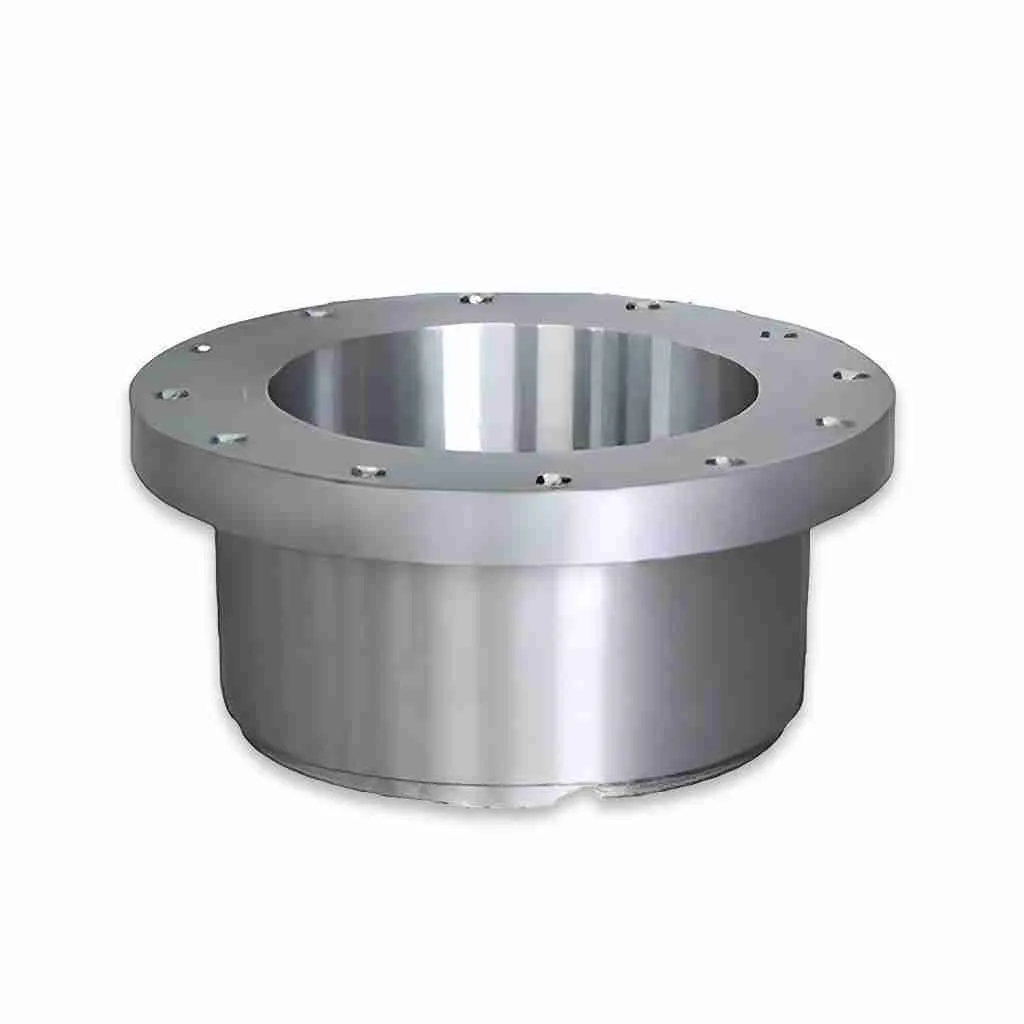

What is a Cone Crusher Spider Bushing?
A cone crusher Spider Bushing is a vital, high-precision wear component securely seated within the top shell’s spider assembly. Its primary critical function is to provide a robust, low-friction guide bearing for the top of the main shaft. By maintaining strict vertical alignment and absorbing extreme radial loads during heavy choke-feeding operations, a premium Spider Bushing prevents destructive eccentric wobbling. This ensures consistent closed-side setting (CSS) performance and actively protects the main shaft from catastrophic metal-to-metal scoring.
Equipment Compatibility & OEM Cross-Reference
Our aftermarket replacement Spider Bushing parts are precision-engineered to be direct-fit upgrades for Sandvik crushers, significantly lowering your Total Cost of Ownership (TCO) while ensuring zero compatibility issues and maximum field uptime.
| Supported Brands | Applicable Crusher Series | Common OEM Part Numbers |
| Sandvik | Stationary Cone Crushers: CH Series: CH420, CH430, CH440, CH660, CH870, CH880, CH890, CH895 CS Series: CS420, CS430, CS440, CS660 H Series: H2800, H3800, H4800, H6800, H8800 S Series: S3800, S4800, S6800 Mobile Cone Crushers: UD221, QH332, UH320E, UH311, UH316, QH441, UH440i, UH440E, UH412, UH312, UK373, UH373, UH640E, QS332, US316, US373, US440i, US440E, US640E | 442.8363-01, 442.6473-01, 442.9408-01, 442.8754-01, 452.1619-01, 442.9266-01, N11852030, BG00237116 (Matches standard OEM specifications) |
Core Engineering & Technical Advantages
Because the top shell assembly is exposed to massive kinetic forces and harsh environmental dust, standard guide bearings can quickly gall or wear out. Our premium Spider Bushing replacements are proudly manufactured in China to deliver unmatched heavy-duty durability:
Premium Bearing Alloys: Cast from advanced high-lead bronze or specialized high-strength alloys to deliver exceptional self-lubricating properties, providing a crucial safety margin against seizure during temporary grease starvation.
Precision CNC Machining: Machined to exact OEM dimensional tolerances for a perfect interference fit inside the spider hub, completely eliminating physical play and parasitic vibration.
Optimized Grease Channels: Engineered with highly precise internal lubrication grooves to guarantee continuous, even distribution of heavy-duty grease across the entire main shaft interface.
Strict Quality Control: Every bushing undergoes rigorous ultrasonic testing and dimensional inspection to eliminate internal casting porosity and maximize load-bearing capacity.
Maintenance Guidelines: When to Replace Your Spider Bushing
Operating a crusher with a worn upper bearing will misalign the main shaft, leading to poor aggregate shape and severe damage to the lower eccentric assembly. We recommend inspecting the Spider Bushing closely during routine top shell maintenance:
| Inspection Focus | Warning Signs (Replace Immediately) | Best Practice Solution |
| Internal Clearance Wear | Excessive physical play or increased clearance detected between the top of the main shaft and the bushing bore. | Replace the Spider Bushing immediately to restore proper shaft alignment and prevent destructive eccentric wobbling. |
| Surface Scoring & Galling | Deep scratches, flaking, or melted bronze smearing observed on the inner bearing surface. | Swap the ruined bushing. Inspect the automated greasing system immediately, as this indicates severe lubrication failure. |
| Out-of-Round Deformation | The inner bore is wearing unevenly (ovalized) due to constant choke-feeding from a single side of the chamber. | Replace the bushing and adjust your feed arrangement to ensure a centered, 360-degree material distribution. |
