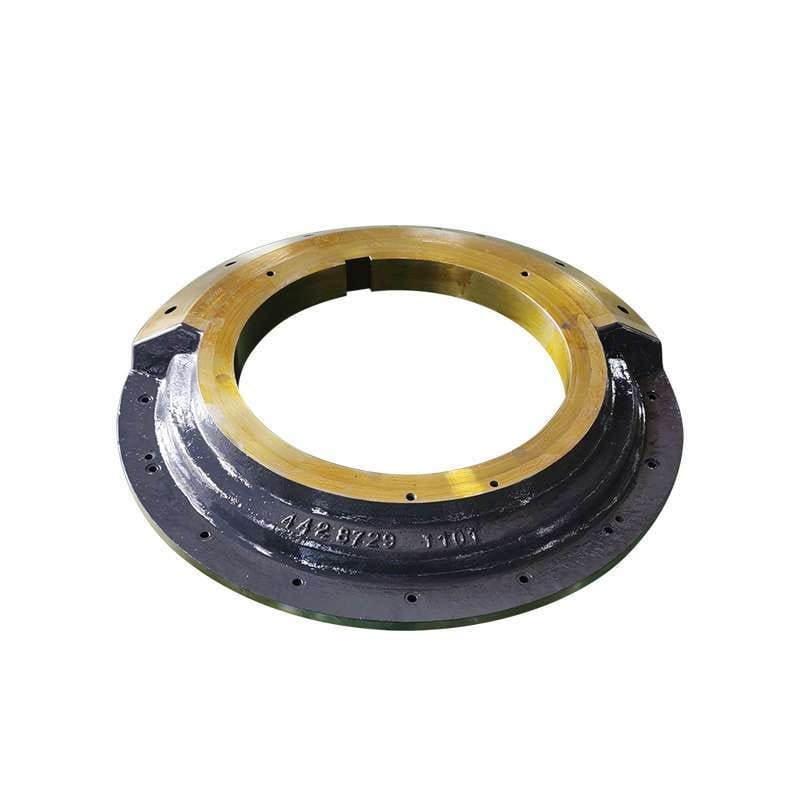

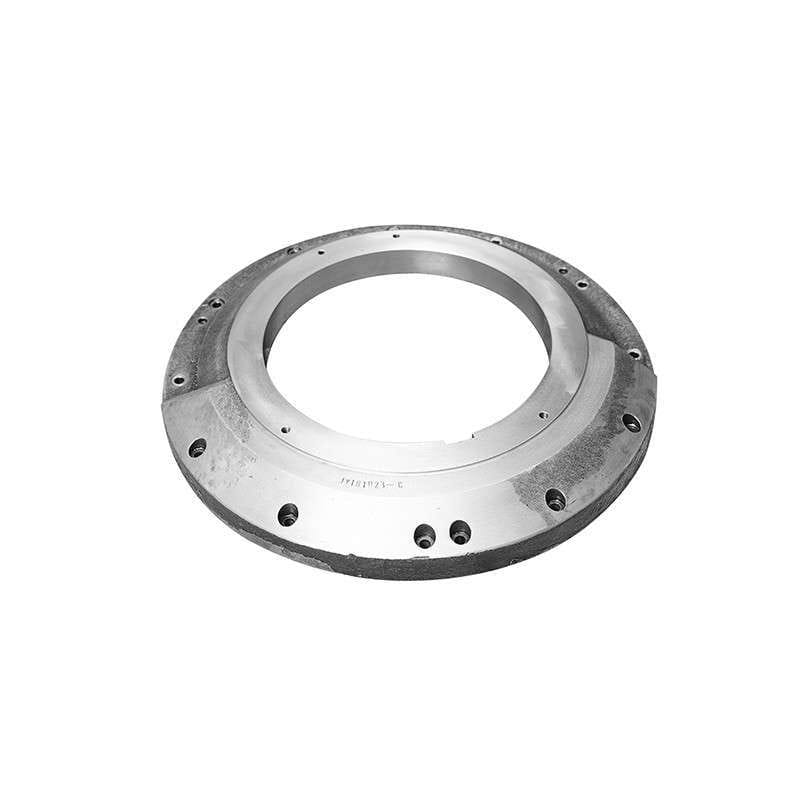

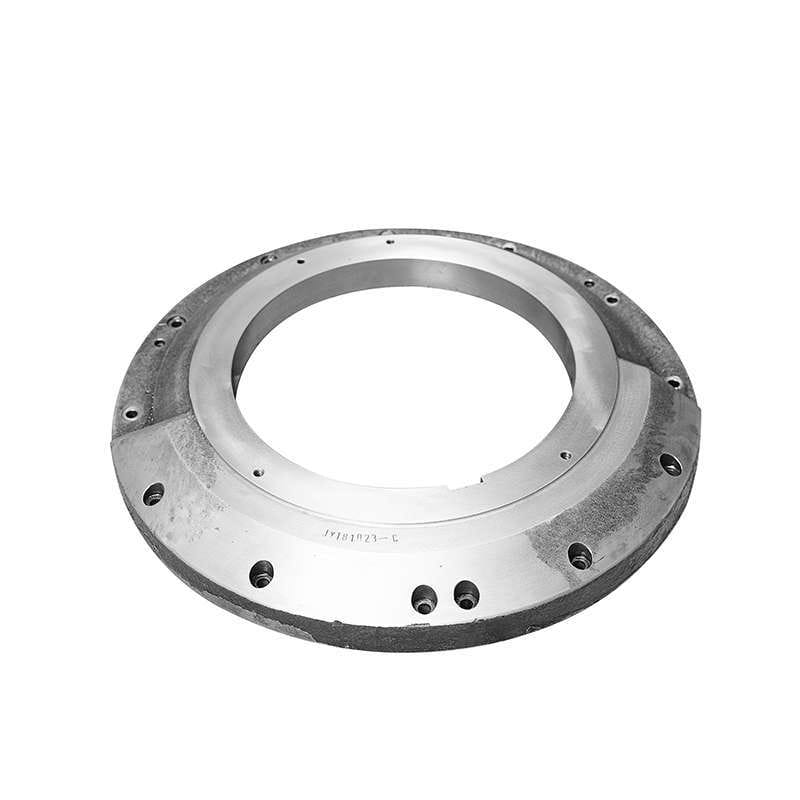

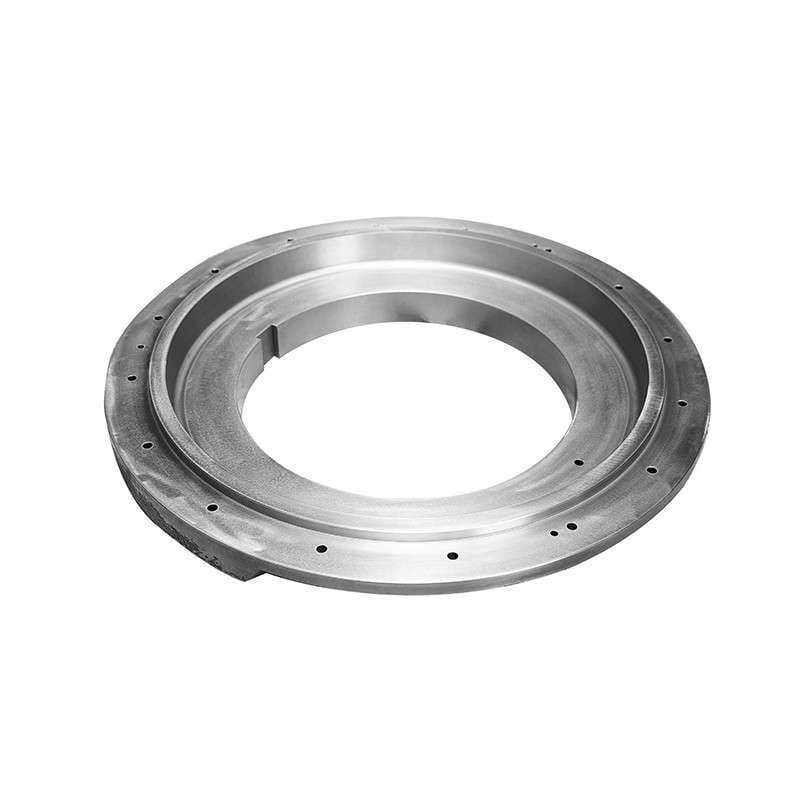

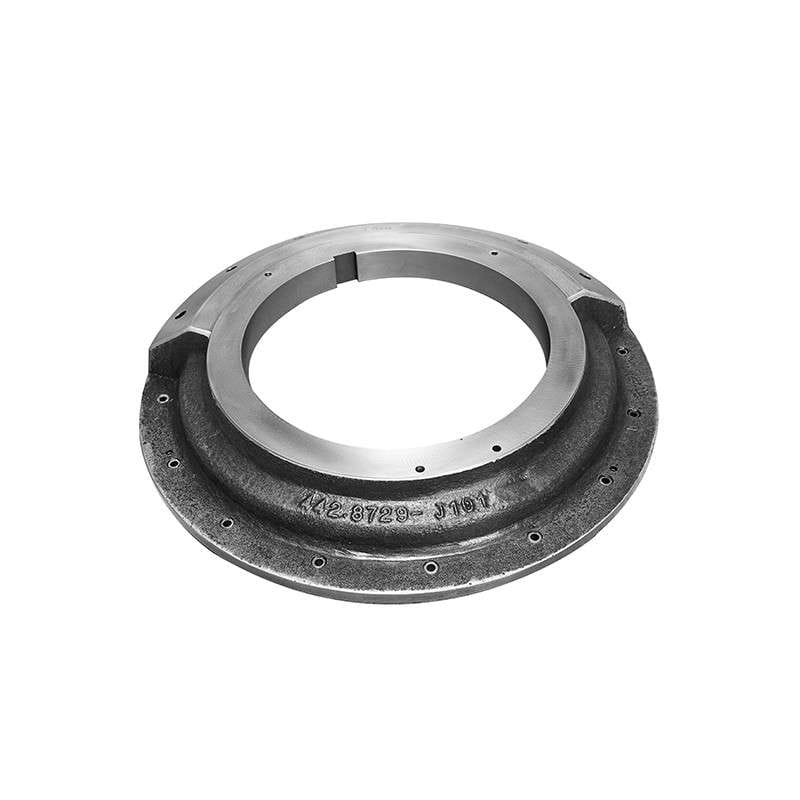

What is a Cone Crusher Eccentric Hub?
Una trituradora de cono Cubo excéntrico is the foundational structural casting of the machine’s eccentric assembly. Its primary critical function is to house the inner eccentric bushing and securely mount the main eccentric gear, generating the precise gyratory motion required for rock crushing. By maintaining strict structural integrity and precise dynamic balance during high-speed rotation, una prima Cubo excéntrico ensures optimal crushing geometry, maximizes aggregate throughput, and protects the entire drive train from catastrophic mechanical failure.
Compatibilidad del equipo & Referencia cruzada OEM
Nuestro reemplazo del mercado de accesorios Cubo excéntrico modules are precision-engineered to be direct-fit upgrades for Sandvik crushers, reduciendo significativamente su costo total de propiedad (costo total de propiedad) al mismo tiempo que se garantiza cero problemas de compatibilidad y el máximo tiempo de actividad en el campo.
| Marcas admitidas | Serie de trituradora aplicable | Números de pieza OEM comunes |
| Sandvik | Serie CH: CH420, CH430, CH440, CH660, CH870, CH880, CH890, CH895 Serie CS: CS420, CS430, CS440, CS660 Serie H: H2800, H3800, H4800, H6800, H7800, H8800 S/HS Series: S2800, S3800, HS800 | 442.7926, 442.7142, 442.8729, 452.0516, 442.9246, 442.7926-01, 442.7142-01, 442.8729-01, 452.0516-001, N11852501, 442.9246-01 (Coincide con las especificaciones estándar OEM) |
Ingeniería central & Ventajas técnicas
Because the eccentric assembly operates under extreme multi-directional loads and continuous rotational friction, standard hubs can easily crack or warp. Nuestra prima Cubo excéntrico Los reemplazos se fabrican con orgullo en China para ofrecer una durabilidad inigualable para trabajos pesados.:
- High-Grade Cast Steel: Poured from premium structural cast steel designed to absorb massive kinetic shock loads without yielding or fracturing under severe choke-feeding conditions.
- Mecanizado CNC de precisión: The internal bearing bores and outer gear seating surfaces are machined to exact OEM dimensional tolerances, ensuring a flawless, zero-vibration fit for mating components.
- Dynamic Balancing Verification: Every unit undergoes strict dynamic balancing tests to guarantee perfect rotational symmetry, eliminating parasitic chassis vibration that can destroy surrounding gears and bearings.
- 100% NDT Inspection: Subjected to rigorous ultrasonic and magnetic particle testing (NDT) before export to guarantee absolute internal structural integrity and zero casting porosity.
Pautas de mantenimiento: When to Replace Your Eccentric Hub
Operating a crusher with a compromised or warped eccentric hub will misalign the main shaft and instantly destroy your bronze bushings. Recomendamos inspeccionar minuciosamente el Cubo excéntrico during major drive train teardowns:
| Enfoque de inspección | Señales de advertencia (Reemplazar inmediatamente) | Solución de mejores prácticas |
| Internal Bore & Keyway Wear | Fretting, deep scoring, or out-of-round deformation inside the bore where the eccentric bushing seats. | Reemplace el Cubo excéntrico to restore proper internal clearances and prevent the bushing from spinning destructively. |
| Fatiga del metal estructural | Hairline cracks detected on the hub body, base, or mounting flanges during visual or NDT inspection. | Pull the damaged hub immediately. Never attempt to weld load-bearing cast steel hubs, as they will inevitably fracture. |
| Gear Seating Integrity | Uneven wear, fretting, or physical play between the eccentric drive gear and the hub’s mounting surface. | Swap the hub to ensure a rigid, perfectly aligned gear mount and prevent catastrophic gear tooth shearing. |
Explore More Crusher Drive Train Components
Para mantener el rendimiento volumétrico máximo de trituración (TPH) y funcionamiento estable, asegúrese de que su inventario de mantenimiento cuente con productos totalmente compatibles, piezas premium. Explore nuestras categorías de componentes específicos:
- Encuentre mecanizados de precisión Eccentric Bushings y Gear and Pinion Sets for complete Sandvik rebuilds.
- Explore our robust aftermarket spares for Sandvik CH & Trituradoras serie CS.
- Ver reemplazo de alto rendimiento Inner Head Nuts y Locating Bars for Sandvik cone crushers.
