Descripción

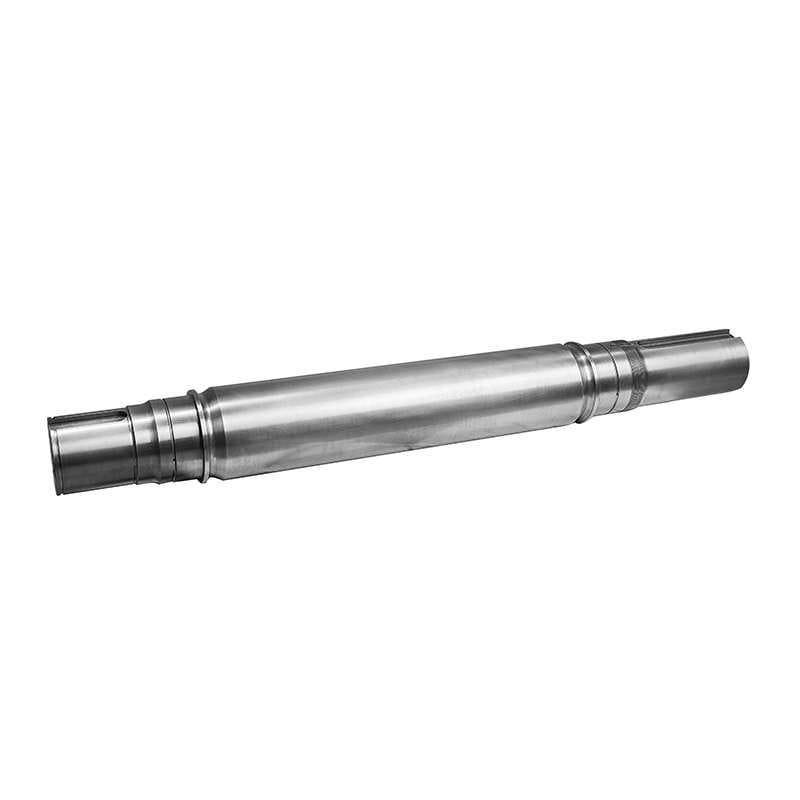

What is a Cone Crusher Pinion Shaft?
Una trituradora de cono Eje del piñón (also known as the horizontal drive shaft) is the primary mechanical power transmission axis within the drive train. Connected directly to the crusher’s drive motor, its critical function is to carry the drive pinion gear, transferring high-speed rotational energy into the immense crushing torque required by the eccentric assembly. A premium Eje del piñón ensures flawless power delivery, absorbs extreme torsional shock loads, and prevents catastrophic drive train failure during continuous, high-tonnage aggregate reduction.
Compatibilidad del equipo & Referencia cruzada OEM
Nuestro reemplazo del mercado de accesorios Eje del piñón components are precision-engineered to be direct-fit upgrades for Sandvik crushers, reduciendo significativamente su costo total de propiedad (costo total de propiedad) while ensuring zero compatibility issues and maximum transmission efficiency.
| Marcas admitidas | Serie de trituradora aplicable | Números de pieza OEM comunes |
| Sandvik | Serie CH: CH420, CH430, CH440, CH660, CH870, CH880, CH890 Serie CS: CS420, CS430, CS440, CS660 Serie H: H2800, H3800, H4800, H6800, H7800, H8800 Serie S: S2800, S3800, S4800, S6800 | 442.7951, 442.7507, 442.8765, 452.0658, 442.9807 (Coincide con las especificaciones estándar OEM) |
Ingeniería central & Ventajas técnicas
Because the horizontal drive train absorbs constant rotational friction and massive kinetic impact from tramp iron events, standard shafts are prone to snapping or metal fatigue. Nuestra prima Eje del piñón replacements are manufactured in China to deliver unmatched heavy-duty durability:
High-Strength Forged Steel: Forged from premium alloy steel (such as 42CrMo) to deliver exceptional tensile strength and torsional rigidity, preventing the shaft from twisting or snapping under heavy loads.
Mecanizado CNC de precisión: The bearing journals and gear mounting zones are machined to exact OEM microscopic tolerances, ensuring a flawless, zero-vibration fit for the heavy-duty bearings and pinion gear.
Advanced Heat Treatment: Undergoes specialized quenching and tempering processes to maximize core toughness while providing a hardened exterior surface that resists abrasive wear and fretting.
100% NDT Inspection: Every completed shaft is subjected to rigorous ultrasonic testing (UT) and magnetic particle inspection (MPI) to guarantee absolute internal structural integrity before export.
Pautas de mantenimiento: When to Replace Your Pinion Shaft
Operating a crusher with a compromised or bent drive shaft will rapidly destroy your bearings and lead to catastrophic gear tooth shearing. Recomendamos inspeccionar minuciosamente el Eje del piñón during every drive train overhaul:
| Enfoque de inspección | Señales de advertencia (Reemplazar inmediatamente) | Solución de mejores prácticas |
| Bearing Journal Wear | Deep scoring, fretting, or a measurable reduction in diameter on the shaft areas where the bearings seat. | Reemplace el Eje del piñón to restore proper bearing clearances and prevent destructive horizontal wobbling. |
| Keyway Damage | The keyway slot is flared, burred, or physically widened from continuous rotational slipping. | Swap the damaged shaft. A loose keyway will cause the pinion gear to slip, instantly destroying both the gear and the shaft. |
| Shaft Runout & Bending | Dial indicator measurements show the shaft is bent or warped beyond acceptable OEM maximum tolerances. | Replace immediately. A bent shaft will generate immense structural vibration, rapidly destroying the pinion housing and eccentric gear. |
