Descripción
What is a Cone Crusher Locating Bar?

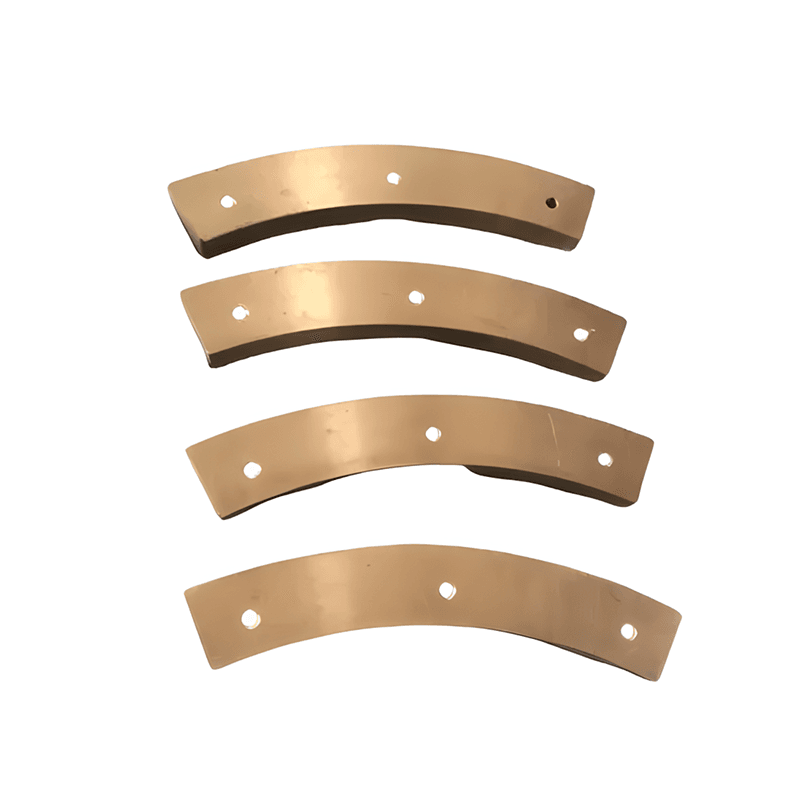

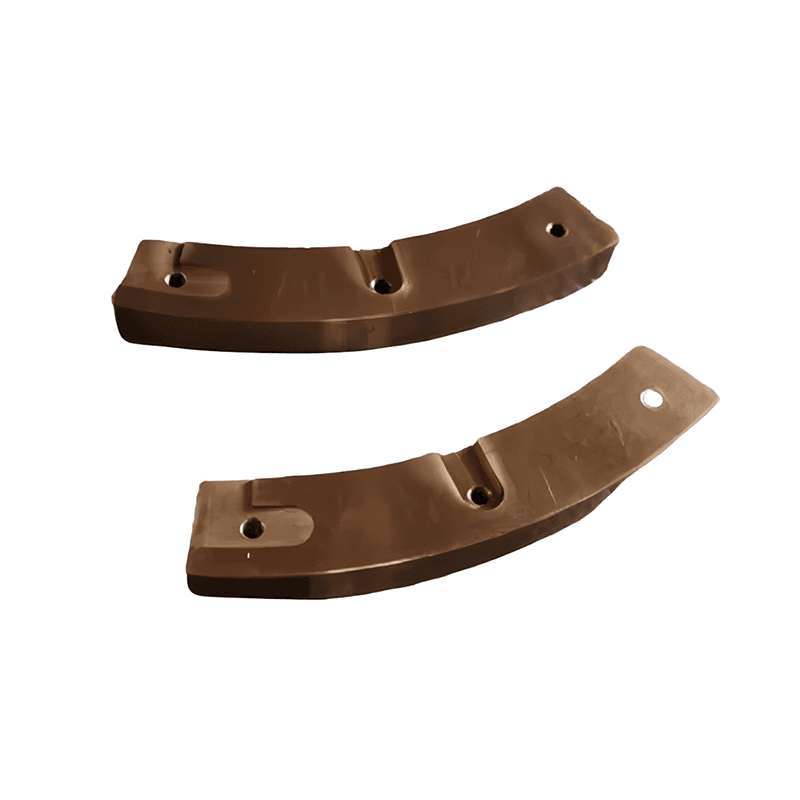

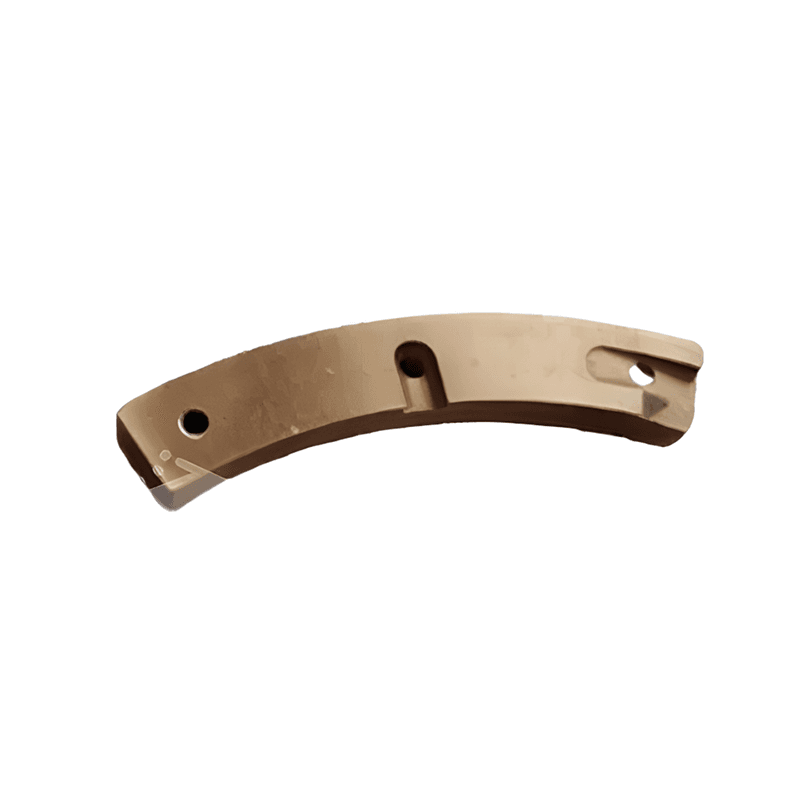

Una trituradora de cono Barra de localización is a crucial precision-engineered alignment component situated within the crusher’s internal eccentric or main frame assembly. Its primary critical function is to lock key stationary components—such as the eccentric bushing or step bearing plates—firmly in place, preventing unwanted rotational movement. By absorbing continuous shear forces and maintaining strict structural alignment during heavy choke-feeding, una prima Barra de localización protects your expensive drive train from catastrophic shifting and internal friction damage.
Compatibilidad del equipo & Referencia cruzada OEM
Nuestro reemplazo del mercado de accesorios Barra de localización components are precision-engineered to be direct-fit upgrades for Sandvik crushers, reduciendo significativamente su costo total de propiedad (costo total de propiedad) al mismo tiempo que se garantiza cero problemas de compatibilidad y el máximo tiempo de actividad en el campo.
| Marcas admitidas | Serie de trituradora aplicable | Números de pieza OEM comunes |
| Sandvik | Serie CH: CH420, CH430, CH440, CH660, CH870, CH880, CH890, CH895 Serie CS: CS420, CS430, CS440, CS660 Serie H: H2800, H3800, H4800, H6800, H7800, H8800 S/HS Series: S2800, S3800, HS800 | 442.7999-01, 442.7928-01, 442.7110-01, 442.8762-01, 452.0834-001, 442.9308-02 (Coincide con las especificaciones estándar OEM) |
Ingeniería central & Ventajas técnicas
Because the internal assembly handles extreme vibration and massive rotational torque, standard alignment bars can easily shear or deform. Nuestra prima Barra de localización Los reemplazos se fabrican con orgullo en China para ofrecer una durabilidad inigualable para trabajos pesados.:
High-Strength Alloy Steel: Manufactured from premium forged or cast alloy steel to deliver exceptional shear strength, preventing the bar from snapping under massive rotational stress.
Mecanizado CNC de precisión: Machined to exact OEM dimensional tolerances to guarantee a perfect, tight fit within the locating slots, completely eliminating physical play and parasitic vibration.
Advanced Heat Treatment: Undergoes specialized thermal hardening processes to resist abrasive wear and structural deformation during years of continuous high-tonnage service.
Strict Quality Control: Every bar undergoes rigorous dimensional inspection and material testing to ensure absolute reliability and exact OEM geometry before export.
Pautas de mantenimiento: When to Replace Your Locating Bar
Operating a crusher with a compromised or sheared alignment bar will allow stationary bushings to spin, instantly destroying the main shaft and eccentric assembly. We recommend inspecting the Barra de localización during every major drive train teardown:
| Enfoque de inspección | Señales de advertencia (Reemplazar inmediatamente) | Solución de mejores prácticas |
| Shear & Deformation | The bar appears bent, warped, or has completely sheared off inside the locating slot. | Reemplace el Barra de localización immediately and thoroughly inspect the mating components for severe rotational scoring. |
| Clearance Wear | Excessive physical play or a loose fit when the bar is seated in its designated locating groove. | Swap the worn bar to restore a tight locking fit. A loose bar will eventually hammer itself to failure under continuous vibration. |
| Surface Galling | Deep scratches, burrs, or signs of heavy metal-to-metal friction on the bar’s contact surfaces. | Replace the part to ensure proper component seating and prevent abrasive damage to the eccentric bushing. |
