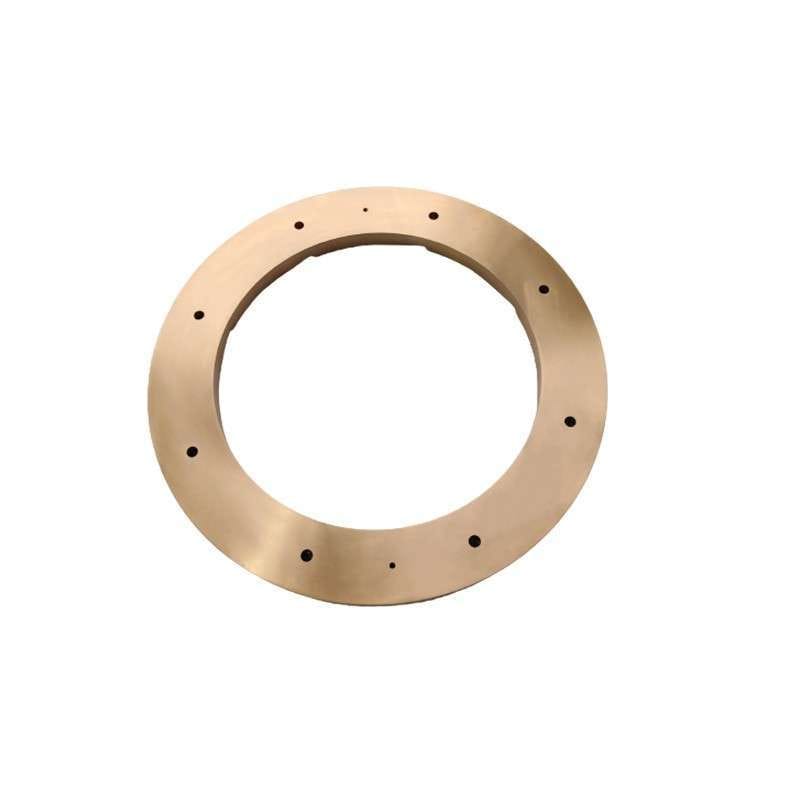

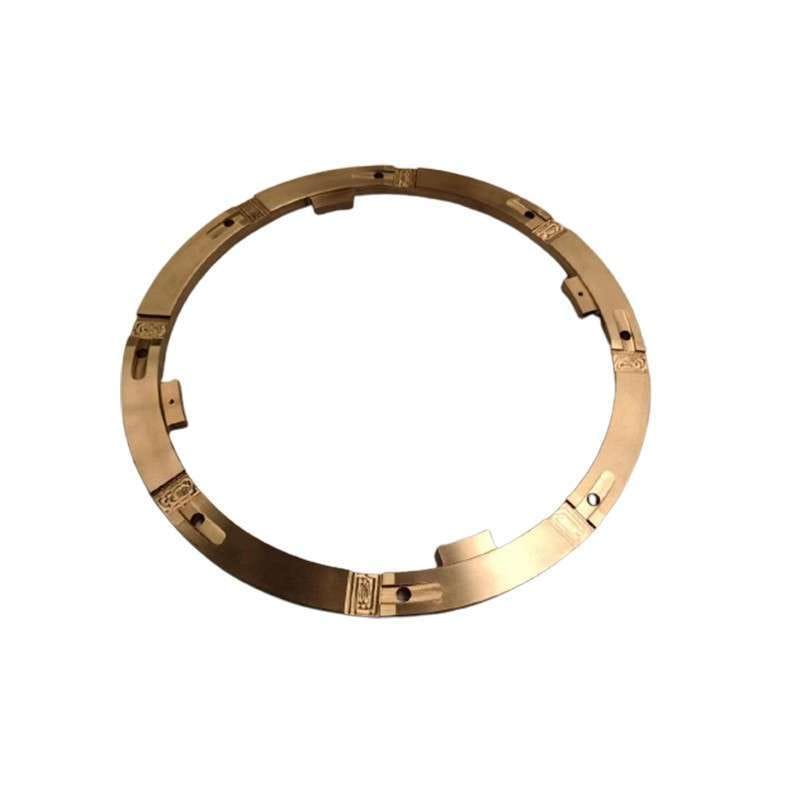

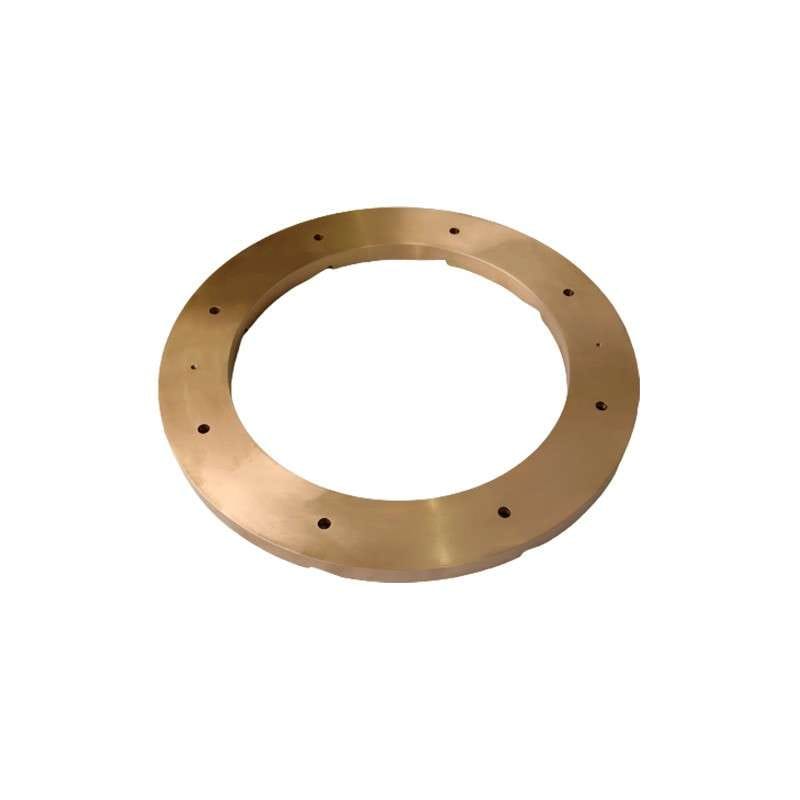

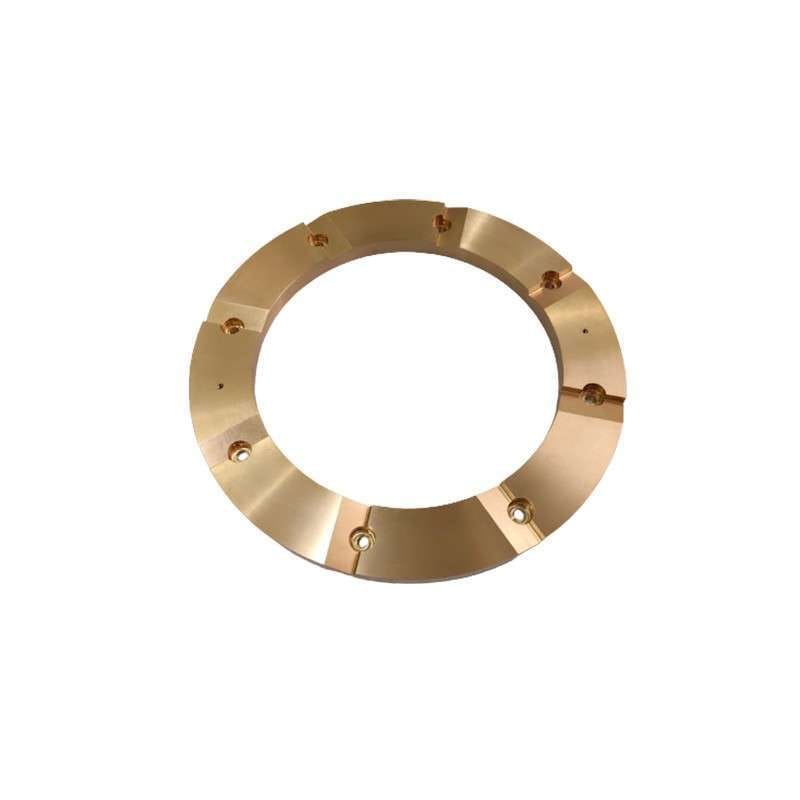

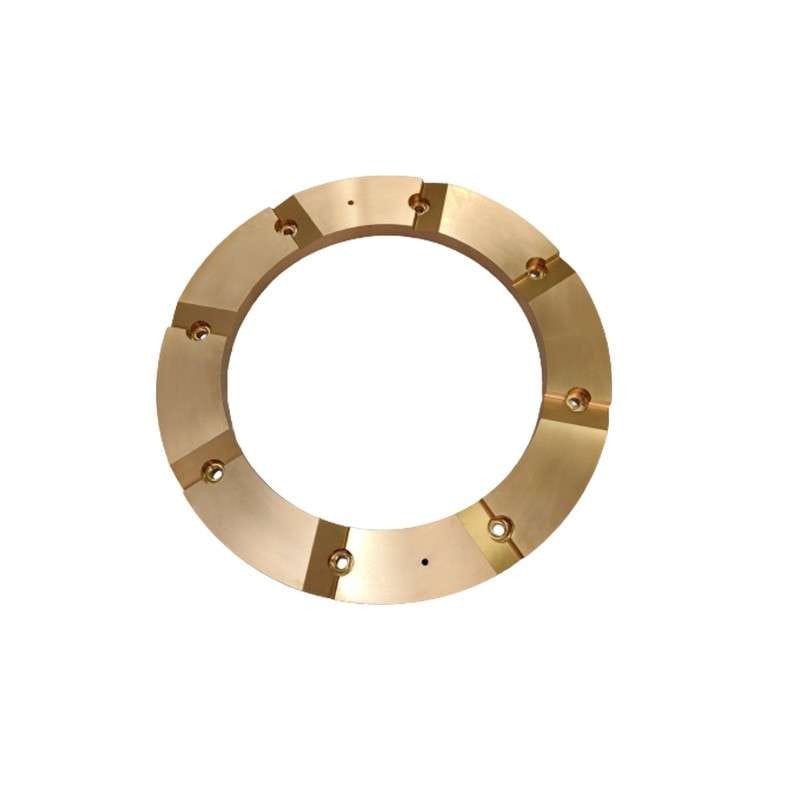

What is a Cone Crusher Eccentric Wear Plate?
Una trituradora de cono Placa de desgaste excéntrica (often referred to as a thrust bearing plate) is a critical sacrificial component located at the base of the eccentric assembly. Its primary function is to support the heavy vertical load of the rotating eccentric while providing a highly durable, low-friction bearing surface against the main frame hub. By absorbing extreme downward thrust forces and maintaining precise operational clearances, una prima Placa de desgaste excéntrica prevents destructive metal-to-metal contact, ensuring smooth gyratory motion and extending the life of the entire drive train during high-tonnage aggregate reduction.
Compatibilidad del equipo & Referencia cruzada OEM
Nuestro reemplazo del mercado de accesorios Placa de desgaste excéntrica components are precision-engineered to be direct-fit upgrades for Sandvik crushers, reduciendo significativamente su costo total de propiedad (costo total de propiedad) al mismo tiempo que se garantiza cero problemas de compatibilidad y el máximo tiempo de actividad en el campo.
| Marcas admitidas | Serie de trituradora aplicable | Números de pieza OEM comunes |
| Sandvik | Serie CH: CH420, CH430, CH440, CH660, CH870, CH880, CH890, CH895 Serie CS: CS420, CS430, CS440, CS660 Serie H: H2000, H2800, H3000, H3800, H4000, H4800, H6000, H6800, H7000, H7800, H8000, H8800 S / HS Series: S2000, S2800, S3000, S3800, S4000, S4800, S6000, S6800, HS800 | 442.6130-01, 442.7927-01, 452.4188-001, 442.7107-01, 442.8761-01, 452.0808-001, 442.9249-01 (Coincide con las especificaciones estándar OEM) |
Ingeniería central & Ventajas técnicas
Because the eccentric assembly operates under immense vertical weight and continuous rotational friction, standard thrust plates can suffer from rapid thermal expansion and premature wear. Nuestra prima Placa de desgaste excéntrica Los reemplazos se fabrican con orgullo en China para ofrecer una durabilidad inigualable para trabajos pesados.:
Premium Bronze & Alloy Formulations: Cast from specialized high-grade bronze or anti-friction alloys to deliver exceptional self-lubricating properties, providing a crucial safety margin against seizure during temporary oil starvation.
Mecanizado CNC de precisión: Machined to exact OEM dimensional tolerances and flatness specifications, ensuring perfect mating surfaces that evenly distribute massive vertical thrust loads.
Optimized Lubrication Channels: Engineered with highly precise internal oil grooves to guarantee continuous, even distribution of cooling hydraulic oil across the entire high-friction bearing surface.
Strict Quality Control: Every plate undergoes rigorous ultrasonic testing and surface finish inspection to eliminate internal casting porosity and maximize heavy-duty load-bearing capacity.
Pautas de mantenimiento: When to Replace Your Eccentric Wear Plate
Operating a crusher with a worn thrust bearing plate will alter the vertical alignment of the eccentric gear, leading to catastrophic gear damage and severe main shaft scoring. We recommend inspecting the Placa de desgaste excéntrica closely during routine drive train maintenance:
| Enfoque de inspección | Señales de advertencia (Reemplazar inmediatamente) | Solución de mejores prácticas |
| Thickness & Clearance Wear | The plate thickness has worn down beyond OEM minimum tolerances, causing the eccentric gear to sit too low. | Reemplace el Placa de desgaste excéntrica to restore proper vertical alignment and ensure a perfect mesh with the pinion gear. |
| Surface Scoring & Galling | Deep scratches, flaking, or melted bronze smearing observed on the bearing surface. | Swap the ruined plate immediately. Inspect the lubrication system for blocked oil filters or contaminated fluid. |
| Uneven Wear Patterns | The plate exhibits tapered or heavily one-sided wear rather than a uniform flat reduction. | Replace the plate and thoroughly inspect the main shaft and eccentric bushing for underlying alignment issues. |
