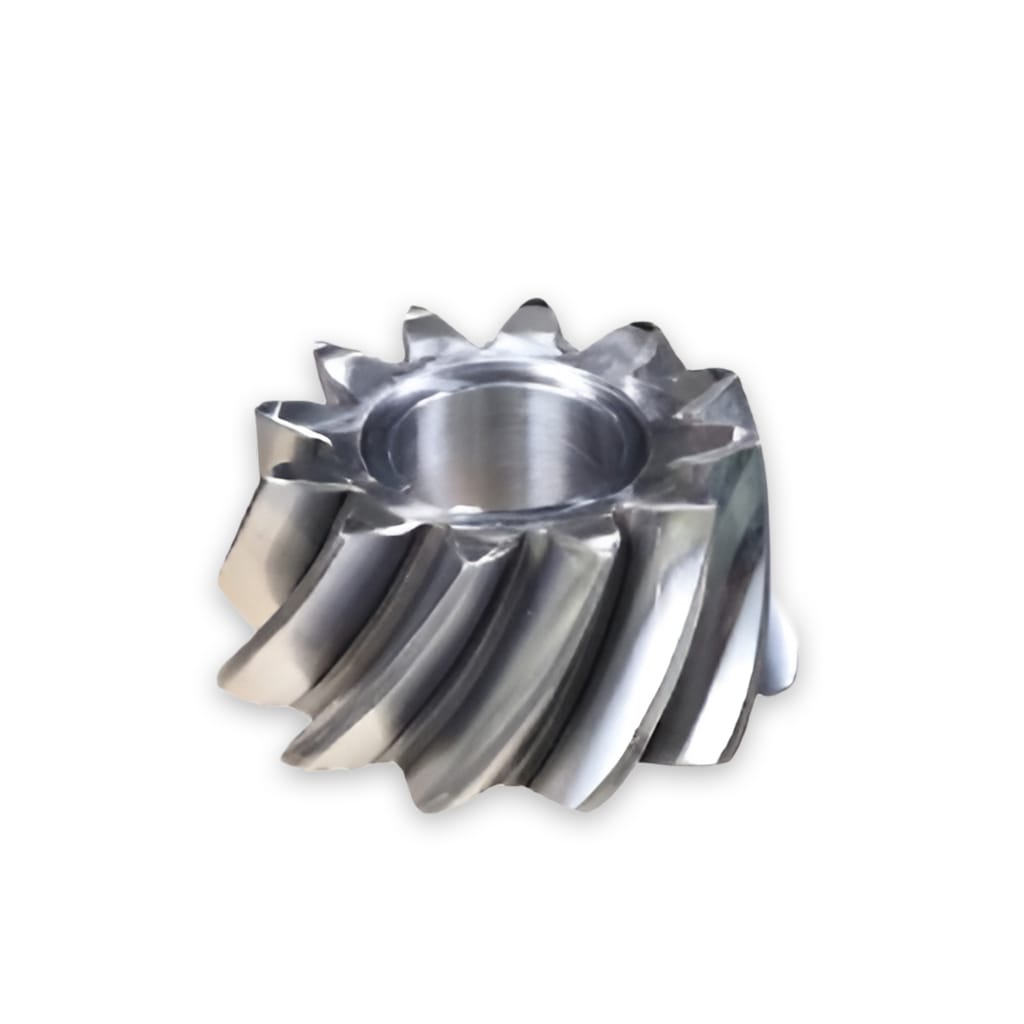

What is a Cone Crusher Countershaft Pinion?
A Countershaft Pinion is a heavy-duty, precision-machined steel gear located within the primary drive train of a cone crusher. Mounted directly onto the horizontal countershaft assembly, its critical function is to mesh seamlessly with the larger eccentric drive gear. By efficiently transmitting high-speed rotational energy from the main electric motor to the eccentric assembly, una prima Countershaft Pinion ensures continuous, powerful gyratory motion for maximum high-tonnage rock reduction while withstanding extreme kinetic shock loads.
Compatibilidad del equipo & Referencia cruzada OEM
Nuestro reemplazo del mercado de accesorios Countershaft Pinion gears are precision-engineered to be direct-fit upgrades for Metso crushers, reduciendo significativamente su costo total de propiedad (costo total de propiedad) while ensuring zero compatibility issues and maximum transmission efficiency.
| Marcas admitidas | Serie de trituradora aplicable | Números de pieza OEM comunes |
| Raíces | Serie Nordberg HP: HP100, HP200, HP300, HP400, HP500, HP800, HP4, HP6 | 7063002401, 1036829635, 7063002250, 1036833868, 1036831195, 1036831527, N63002253 (Coincide con las especificaciones estándar OEM) |
Ingeniería central & Ventajas técnicas
Because the primary drive train handles continuous, extreme torque during mineral reduction, standard gears can suffer from severe tooth deformation. Nuestra prima Countershaft Pinion replacements are manufactured in China to deliver unmatched heavy-duty durability:
High-Alloy Forged Steel: Manufactured from premium forged alloy steel to deliver exceptional tensile strength, preventing tooth shearing under massive aggregate compression loads.
Precision CNC Gear Cutting: Every tooth profile is accurately machined to guarantee a perfect, zero-defect mesh with the eccentric gear, eliminating localized heat buildup and abrasive friction.
Advanced Heat Treatment: Undergoes specialized thermal hardening processes to create a highly wear-resistant outer surface while maintaining a tough, ductile core to absorb heavy vibrations.
Optimized Gear Backlash: Engineered to maintain the exact OEM backlash tolerances, reducing operational noise and protecting adjacent countershaft bearings from premature failure.
Pautas de mantenimiento: When to Replace Your Countershaft Pinion
Operating with a worn drive gear will cause severe vibration and rapidly destroy the larger, more expensive eccentric gear. We recommend inspecting the Countershaft Pinion during routine drive train maintenance:
| Enfoque de inspección | Señales de advertencia (Reemplazar inmediatamente) | Solución de mejores prácticas |
| Gear Tooth Wear | Severe pitting, spalling, or “razor-sharp” thinned teeth observed on the pinion profile. | Reemplace el Countershaft Pinion and the mating eccentric gear simultaneously as a matched set for optimal meshing. |
| Vibration & Noise | Heavy howling, mechanical knocking, or abnormal heat generation from the countershaft housing. | Check bearing alignment. If the pinion teeth are warped from tramp iron impact, swap the gear immediately. |
| Keyway & Bore Integrity | Physical play between the pinion bore and the countershaft, or visible keyway wall deformation. | Replace the pinion gear to prevent catastrophic slipping and total loss of crushing power. |
