What is a Cone Crusher Bowl Assembly?

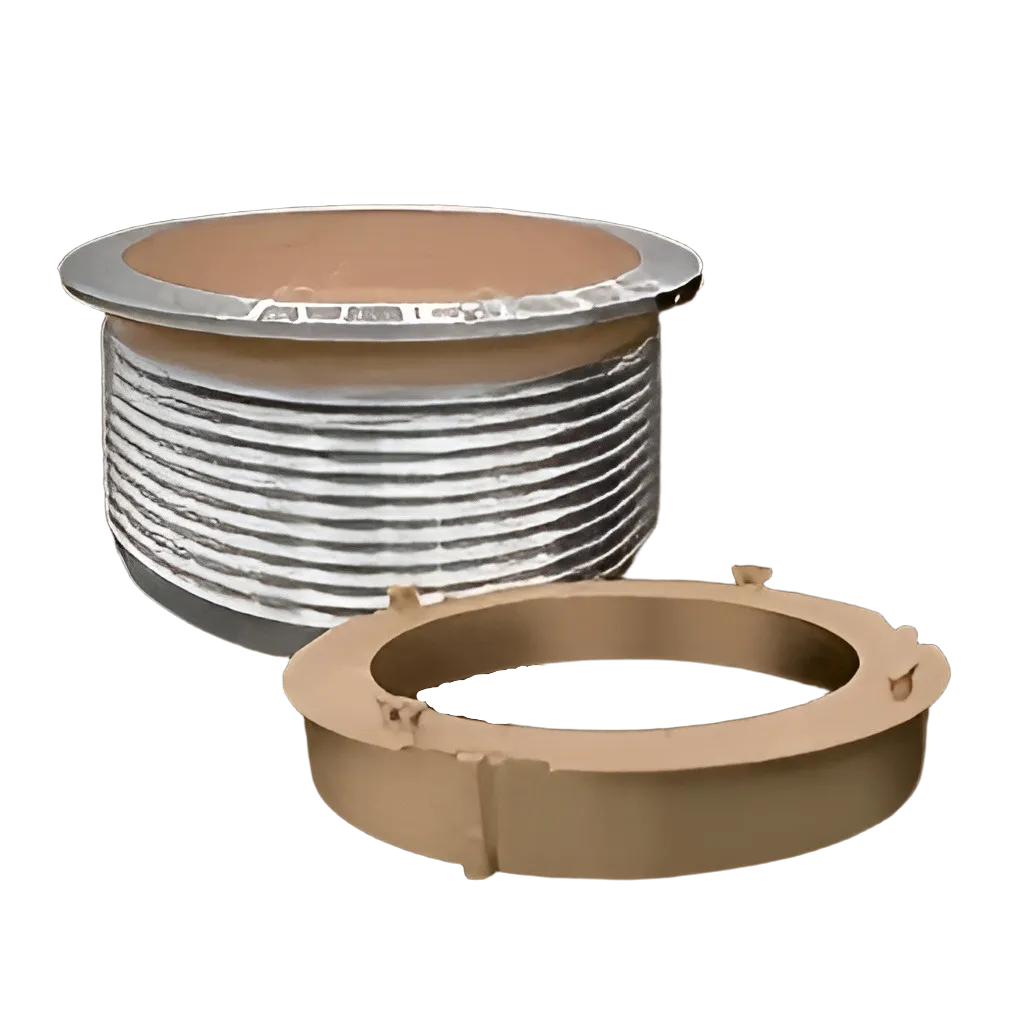

A complete cone crusher Montaje del tazón is a massive, highly complex upper structural module consisting of three critical components: the Crusher Bowl, the Adjustment Cap, and the Drive Ring. Its primary function is to serve as the stationary housing that holds the sacrificial bowl liner (concave) while allowing operators to dynamically adjust the closed-side setting (CSS) by rotating the bowl. A premium Montaje del tazón ensures effortless product sizing adjustments, absorbs severe rock impacts, and guarantees stable crushing geometry during high-tonnage aggregate production.
Compatibilidad del equipo & Referencia cruzada OEM
Nuestro reemplazo del mercado de accesorios Montaje del tazón modules are precision-engineered to be direct-fit upgrades for Metso crushers, reduciendo significativamente su costo total de propiedad (costo total de propiedad) while ensuring zero installation issues and maximum field uptime.
| Modelo | Número de pieza | Descripción |
|---|---|---|
| HP100 | N90258013 | Bowl assembly |
| HP100 | N23508401 | Bol |
| HP100 | N23455516 | Adjustment cap |
| HP100 | 7035410600 | Drive gear |
| HP200 | 7023508000 | Bol |
| HP200 | 1022814802 | Adjustment cap |
| HP200 | 1062440046 | Drive gear |
| HP300 | 7090258000 | Bowl assembly |
| HP300 | 7023508200 | Bol |
| HP300 | 1022815005 | Adjustment cap |
| HP300 | 1062440045 | Drive gear |
| HP400 | 1093040116 | Bowl assembly |
| HP400 | 1020053002 | Bol |
| HP400 | 1022815026 | Adjustment cap |
| HP400 | 1062440048 | Drive gear |
| HP500 | N90258006 | Bowl assembly |
| HP500 | N23508202 | Bol |
| HP500 | N23455510 | Adjustment cap |
| HP500 | 1062440044 | Drive gear |
| HP800 | 1093080117 | Bowl assembly |
| HP800 | 1020055034 | Bol |
| HP800 | 1022819254 | Adjustment cap |
Ingeniería central & Ventajas técnicas
Because the upper housing is subjected to extreme compressive loads and constant rotational friction during adjustment, standard castings can warp or seize. Nuestra prima Montaje del tazón units are proudly manufactured in China to deliver superior heavy-duty durability:
Módulo completo sin cita previa: Every assembly includes the heavy-duty bowl, adjustment cap, and drive ring gear, perfectly factory-matched and tested for immediate on-site installation.
Premium High-Strength Cast Steel: Poured from advanced structural cast steel to withstand immense multi-directional crushing forces and prevent fatigue cracking.
Precision CNC Threading: The adjustment threads on the bowl and cap are machined to exact OEM tolerances, preventing thread galling and ensuring smooth, effortless rotation when adjusting the CSS.
Optimized Power Transmission: The integrated drive ring features heavy-duty, precision-cut gear teeth designed to flawlessly transfer torque from the hydraulic adjustment motors without slipping.
Pautas de mantenimiento: When to Replace Your Bowl Assembly
Operating a crusher with a compromised or sticking bowl will prevent you from controlling your product size and can destroy the hydraulic adjustment system. We recommend inspecting the Montaje del tazón during every liner change:
| Enfoque de inspección | Señales de advertencia (Reemplazar inmediatamente) | Solución de mejores prácticas |
| Thread Galling & Seizing | The bowl sticks, refuses to rotate smoothly, or requires excessive hydraulic force to adjust the CSS. | Inspect for trapped silica dust or stripped threads. If the threads are severely galled, replace the Montaje del tazón to prevent motor burnout. |
| Drive Ring Gear Wear | Broken, sheared, or heavily worn teeth on the drive ring gear. | Swap the damaged drive ring or the complete assembly to restore reliable, automated CSS adjustment capabilities. |
| Structural Integrity | Hairline cracks detected on the adjustment cap or bowl housing during visual inspection. | Pull the damaged components immediately. Never attempt to weld load-bearing adjustment components, ya que fallarán bajo cargas aplastantes. |
Explore más componentes del bastidor principal de la trituradora
Para mantener el rendimiento volumétrico máximo de trituración (TPH) and stable structural operation, asegúrese de que su inventario de mantenimiento cuente con productos totalmente compatibles, piezas premium. Explore nuestras categorías de componentes específicos:
Encuentre mecanizados de precisión Crusher Heads y Main Shafts for complete HP series rebuilds.
Explore our robust aftermarket spares for Sandvik CH & Trituradoras serie CS.
Ver reemplazo de alto rendimiento Revestimientos para tazones y Revestimientos de manto para trituradoras de cono Metso serie HP.
