Descripción
What is a Cone Crusher Arm Guard?

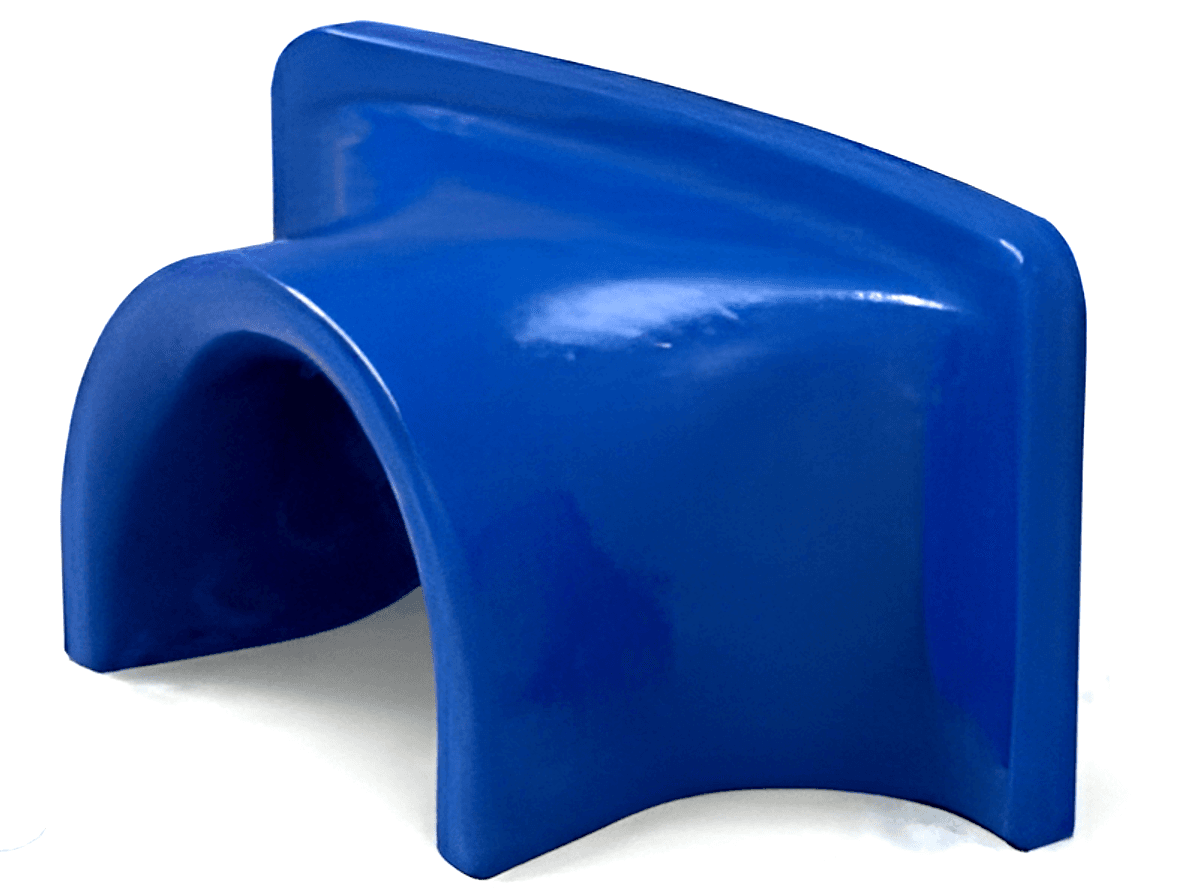

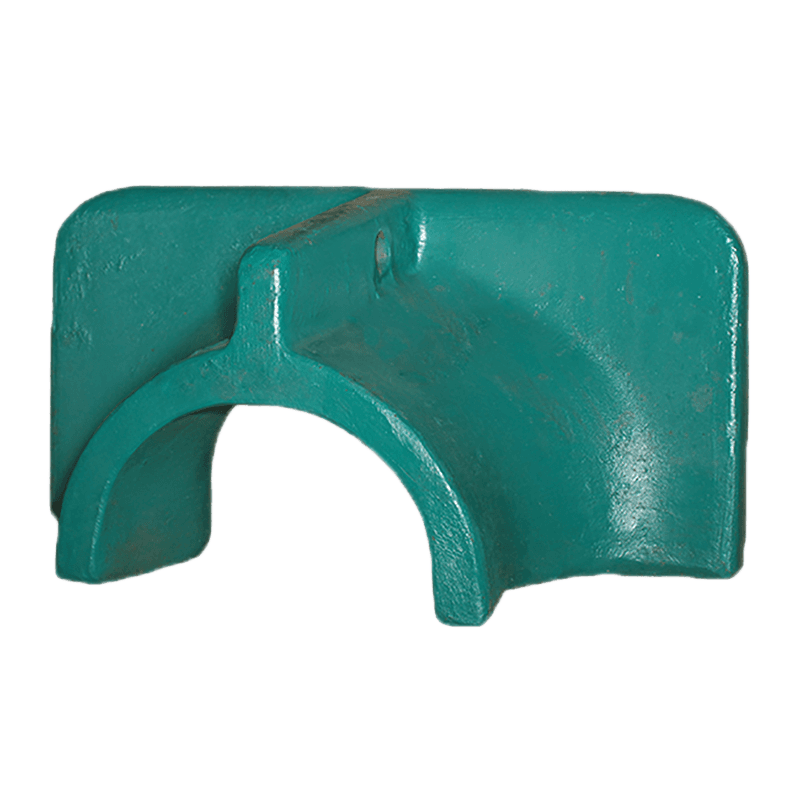

Una trituradora de cono Protector de brazo is a heavy-duty, sacrificial protective shield securely mounted over the exposed structural arms of the main frame assembly. Its primary critical function is to deflect harsh, falling rocks and absorb extreme impact and abrasive wear as material drops through the crushing chamber. By preventing direct physical damage to the internal chassis, una prima Protector de brazo significantly extends the service life of the main frame and lowers your long-term maintenance costs during high-tonnage aggregate processing.
Compatibilidad del equipo & Referencia cruzada OEM
Nuestro reemplazo del mercado de accesorios Protector de brazo components are precision-engineered to be direct-fit upgrades for Metso crushers, reduciendo significativamente su costo total de propiedad (costo total de propiedad) while ensuring zero installation issues and maximum field uptime.
| Marcas admitidas | Serie de trituradora aplicable | Números de pieza OEM comunes |
| Raíces | Serie Nordberg HP: HP100, HP200, HP300, HP400, HP500, HP800, HP4, HP6 | 7022102001, 1038067315, 7022102502, 1038067401, 1038069595, 1038069733 (Coincide con las especificaciones estándar OEM) |
Ingeniería central & Ventajas técnicas
Because the main frame arms sit directly in the high-velocity material flow, standard steel shields can quickly wear through. Nuestra prima Protector de brazo replacements are proudly manufactured in China to deliver superior, heavy-duty protection:
High-Grade Manganese Steel: Cast from premium Mn14, Mn18, or custom work-hardening manganese alloys. The severe impact from falling rocks actively hardens the guard’s surface during operation, continually increasing its wear resistance.
Precision Casting & Fitment: Engineered with exact dimensional tolerances to match OEM main frame profiles, ensuring a tight, vibration-free fit that won’t rattle loose under continuous heavy loads.
Structural Impact Absorption: Designed with optimized thickness profiles to absorb massive shock loads without fracturing, actively shielding the expensive structural chassis underneath.
Cost-Effective Replacement: Provides a highly economical wear layer that is fast and easy to replace, preventing the need for complex and costly main frame welding repairs.
Pautas de mantenimiento: When to Replace Your Arm Guard
Operating a crusher with worn-through arm protection will directly expose your main frame to devastating abrasive damage. Recomendamos inspeccionar minuciosamente el Protector de brazo during every mantle or bowl liner changeout:
| Enfoque de inspección | Señales de advertencia (Reemplazar inmediatamente) | Solución de mejores prácticas |
| Material Thickness | The manganese steel has worn dangerously thin, nearly exposing the underlying main frame arm. | Reemplace el Protector de brazo immediately to prevent irreversible abrasive scouring of the structural chassis. |
| Physical Deformation | Severe cracking, bending, or structural fracturing across the shield body from massive tramp iron impact. | Swap the damaged guard to ensure continuous structural protection and prevent broken metal from entering the crushing circuit. |
| Mounting Security | The guard rattles heavily during operation or shows worn, elongated mounting holes. | Pull the guard. If the fit is compromised, replace it to prevent it from detaching and jamming the internal mechanisms. |
